Summary of Contents for SpaNet SV SmartLINK
-
Page 2: Table Of Contents
Contents Overview ......................3 Check SV Controller Software Version ..............3 How to check software version ................3 Key Press Operation ..................3 Fitting SmartLINK Module to Spa ................4 Connecting SmartLINK Module when Expand Port 1 (EXP1) is already in use ..4 Indicator LEDs .................... -
Page 3: Overview

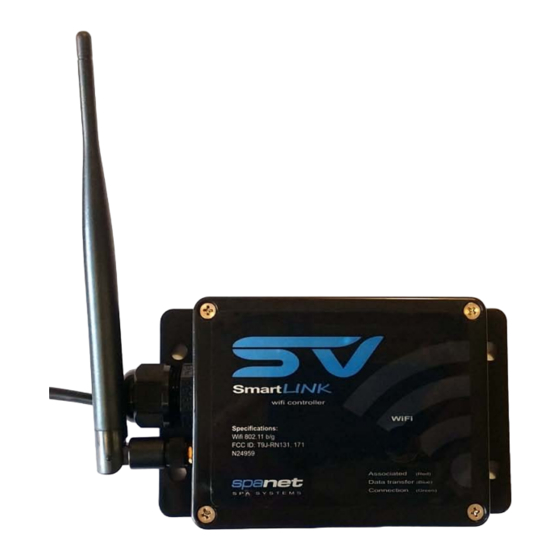

Overview The SV SmartLINK is a WiFi module for a SpaNET SV Series spa control that enables remote access control of a spa via the use of the Internet and the SpaNET SpaLink smart device app. Users can use the App on their smart device (phone, tablet) to remotely connect to and control their spa pool. -
Page 4: Fitting Smartlink Module To Spa
Fitting SmartLINK Module to Spa The SpaNET SpaLink WiFi module is simple to install. It does not require any power, it just requires the black data cable to be connected to the Expand Port 1 (EXP1) socket on the top right hand corner of the SV controller. -
Page 5: Indicator Leds
Indicator LEDs There are three (3) x indicator LEDs on the SmartLINK module which identify the status of the WiFi module. These LEDs can be seen through the clear window on the front of the unit (refer aside picture). The definition of the LEDs is as follows: Connection Status (Green led): TCP/IP status On - for an active connection Fast flash - indicates no IP address assigned or is command mode... -
Page 6: Spalink App Overview
Once you have downloaded and installed the SpaLINK app, before your spa and WiFi module can be configured you must first register a user account with SpaNET. Your user account is the portal between the smart device app and your spa. It provides a secure gateway to login and access your spa and allows multiple SV controllers to be configured to the one user account, should you be fortunate enough to own a dual zone swim spa or more than one spa. - Page 7 Step 1: Open the app and click REGISTER Step 2: Enter your details into the registration form Your full name Create username for login Your email address Create password for login Confirm password for login Step 3: Review your registration details then Complete: If your registration was successful click REGISTER to proceed the app will automatically login with your...
-
Page 8: Configure Your Spa/Wifi Module
Configure your Spa/WiFi module Once you have registered a user account with SpaNET you are now ready to configure your spa. The configuration process is a once off setup event that programs the SpaNET WiFi module with your wireless router’s login details (SSID and password) to provide Internet access to your spa. - Page 9 Step 5: If you have just completed your user Step 6: Press on NEW DEVICE to add your spa account registration your app will already be to your spa list logged in at the spa list screen (refer below) If you do not see the above screen, please open the app and login with your username and password entered during registration.
- Page 10 Step 8: Select and connect to the SV WiFi Step 9: Once connected to the SV WiFi network denoted by your SV controller’s serial network go back and re-enter the SpaLINK number. No password is required to connect. app. Press on X to close the setup instructions. Wait for a moment to ensure the SV network is connected properly.
- Page 11 WiFi range extender to boost the signal, or install a higher powered antenna to the SpaNET SmartSTREAM module underneath your spa. If your wireless network SSID is not discovered you will need to carry out steps to improve the signal strength and perform another WiFi scan.
- Page 12 SpaNET WiFi module for connecting to your wireless router. If you type the password incorrectly the SpaNET WiFi module will be unable to login and connect to your wireless router and the whole setup procedure will need to be run again.
- Page 13 Step 14a: Press your smart device home Step 15: Once connected to your usual WiFi button, navigate to your WiFi settings and network re-enter the SpaLINK app. Press on select your WiFi network for Internet access. the X to close the setup instructions. NOTE: Your smart device may automatically revert to your normal WiFi network by itself.
-
Page 14: Spa List Screen
Troubleshooting Spa/WiFi Module Configuration on the following page. Online/Offline Spas Once your SpaNET WiFi module has been configured, so long as there is power to your spa and your wireless router is available for Internet access your spa should show online in your spa list ready for remote access at anytime. -
Page 15: Edit Spa List
5 minutes you should follow these steps to help overcome the problem. Method 1: Ensure WiFi module has entered Infrastructure Mode Once you have entered your wireless network password during the setup process the SpaNET WiFi module should automatically change from hot spot mode (HOT) to infrastructure mode (INFR). -
Page 16: Wifi Network Not Showing In Smart Device Wifi List
2) Follow the instructions for “Configuring your Spa/WiFi Module” on pages 11-16 to complete the setup process again. IMPORTANT NOTES: a) Before starting the configuration process again the WiFi module should be reset (RSET) to clear any previous settings and then the WiFi module should be put back into Hot Spot mode (HOT). -
Page 17: Legal Information
Spa Net Pty Ltd 4/103 Railway Road North MULGRAVE NSW 2756 AUSTRALIA Phone: +61 2 4587 7766 Facsimile: +61 2 4587 8766 Email: service@spanet.com.au Website: www.spanet.com.au V.1605 Page | 17...
