SpaNet XS-4000 Quick Reference Manual

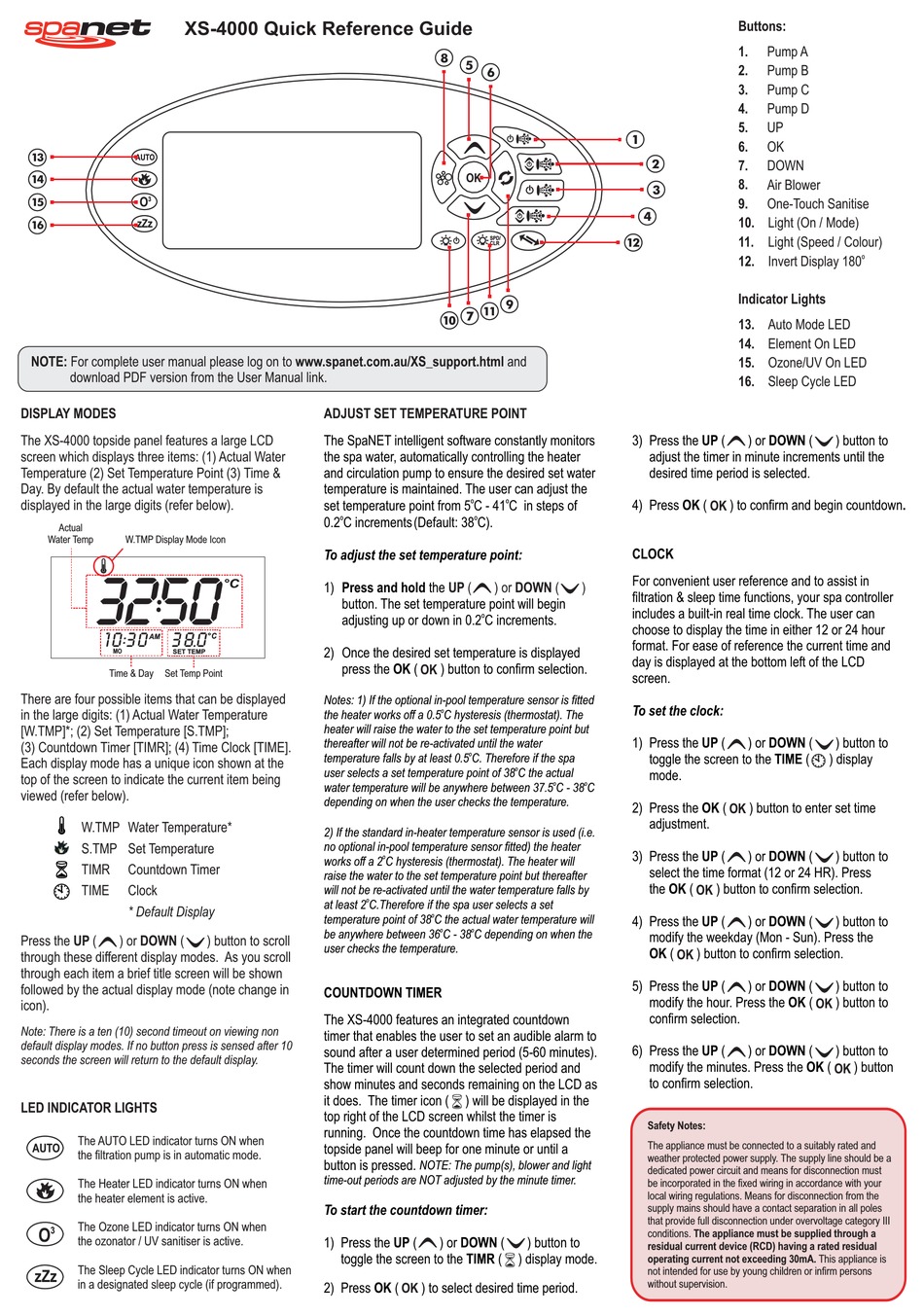

XS-4000 Quick Reference Guide
13
AUTO
14
15
3
O
16
zZz
NOTE: For complete user manual please log on to
download PDF version from the User Manual link.
DISPLAY MODES
The XS-4000 topside panel features a large LCD
screen which displays three items: (1) Actual Water
Temperature (2) Set Temperature Point (3) Time &
Day. By default the actual water temperature is
displayed in the large digits (refer below).
Actual
Water Temp W.TMP Display Mode Icon
OFF
ON
10 : 30
3 8.0
AM
PM
SA SU MO TU WE TH FR SET TEMP
Time & Day Set Temp Point
There are four possible items that can be displayed
in the large digits: (1) Actual Water Temperature
[W.TMP]*; (2) Set Temperature [S.TMP];
(3) Countdown Timer [TIMR]; (4) Time Clock [TIME].
Each display mode has a unique icon shown at the
top of the screen to indicate the current item being
viewed (refer below).
W.TMP Water Temperature*
S.TMP Set Temperature
TIMR Countdown Timer
TIME Clock
* Default Display
Press the UP ( ) or DOWN (
through these different display modes. As you scroll
through each item a brief title screen will be shown
followed by the actual display mode (note change in
icon).
Note: There is a ten (10) second timeout on viewing non
default display modes. If no button press is sensed after 10
seconds the screen will return to the default display.
LED INDICATOR LIGHTS
The AUTO LED indicator turns ON when
AUTO
the filtration pump is in automatic mode.
The Heater LED indicator turns ON when
the heater element is active.
The Ozone LED indicator turns ON when
3
O
the ozonator / UV sanitiser is active.
The Sleep Cycle LED indicator turns ON when
zZz
in a designated sleep cycle (if programmed).
www.spanet.com.au/XS_support.html
ADJUST SET TEMPERATURE POINT
The SpaNET intelligent software constantly monitors
the spa water, automatically controlling the heater
and circulation pump to ensure the desired set water
temperature is maintained. The user can adjust the
set temperature point from 5 C - 41 C in steps of
o
0.2 C increments (Default: 38 C).
To adjust the set temperature point:
°C
1) Press and hold
°F
button. The set temperature point will begin
MODE
SPD
BRT adjusting up or down in 0.2 C increments.
°C
°F
2) Once the desired set temperature is displayed
press the
Notes: 1) If the optional in-pool temperature sensor is fitted
the heater works off a 0.5 C hysteresis (thermostat). The
heater will raise the water to the set temperature point but
thereafter will not be re-activated until the water
temperature falls by at least 0.5 C. Therefore if the spa
user selects a set temperature point of 38 C the actual
water temperature will be anywhere between 37.5 C - 38 C
depending on when the user checks the temperature.
2) If the standard in-heater temperature sensor is used (i.e.
no optional in-pool temperature sensor fitted) the heater
works off a 2 C hysteresis (thermostat). The heater will
raise the water to the set temperature point but thereafter
will not be re-activated until the water temperature falls by
o
at least 2 C.Therefore if the spa user selects a set
temperature point of 38 C the actual water temperature will
be anywhere between 36 C - 38 C depending on when the
) button to scroll
user checks the temperature.
COUNTDOWN TIMER
The XS-4000 features an integrated countdown
timer that enables the user to set an audible alarm to
sound after a user determined period (5-60 minutes).
The timer will count down the selected period and
show minutes and seconds remaining on the LCD as
it does. The timer icon (
top right of the LCD screen whilst the timer is
running. Once the countdown time has elapsed the
topside panel will beep for one minute or until a
button is pressed.
time-out periods are NOT adjusted by the minute timer.
To start the countdown timer:
1) Press the
toggle the screen to the
2) Press OK
8
5
6
I
I
OK
I
I
I SPD/
CLR
9
11
7
10
and
o o
o
the UP ( ) or DOWN (
o
OK ( ) button to confirm selection.
OK
o
o
o
o
o
o
o o
) will be displayed in the
NOTE: The pump(s), blower and light
UP ( ) or DOWN ( ) button to
TIMR ( ) display mode.
( OK ) to select desired time period.
Buttons:
1.
2.
3.
4.
5.
1
6.
2
7.
8.
3
9.
4
10.
12
11.
12.
Indicator Lights
13.
14.
15.
16.
3) Press the UP ( ) or
adjust the timer in minute increments until the
desired time period is selected.
4) Press OK ( ) to confirm and begin countdown
OK
CLOCK
For convenient user reference and to assist in
)
filtration & sleep time functions, your spa controller
includes a built-in real time clock. The user can
choose to display the time in either 12 or 24 hour
format. For ease of reference the current time and
day is displayed at the bottom left of the LCD
screen.
To set the clock:
1) Press the UP ( ) or
toggle the screen to the
mode.
o
2) Press the OK ( ) button to enter set time
OK
adjustment.
3) Press the UP ( ) or
select the time format (12 or 24 HR). Press
the OK ( ) button to confirm selection.
OK
4) Press the UP ( ) or
modify the weekday (Mon - Sun). Press the
OK ( ) button to confirm selection.
OK
5) Press the UP ( ) or
modify the hour. Press the
confirm selection.
6) Press the UP ( ) or
modify the minutes. Press the
to confirm selection.
Safety Notes:
The appliance must be connected to a suitably rated and
weather protected power supply. The supply line should be a
dedicated power circuit and means for disconnection must
be incorporated in the fixed wiring in accordance with your
local wiring regulations. Means for disconnection from the
supply mains should have a contact separation in all poles
that provide full disconnection under overvoltage category III
conditions. The appliance must be supplied through a
residual current device (RCD) having a rated residual
operating current not exceeding 30mA.
not intended for use by young children or infirm persons
without supervision.
Pump A
Pump B
Pump C
Pump D
UP
OK
DOWN
Air Blower
One-Touch Sanitise
Light (On / Mode)
Light (Speed / Colour)
o
Invert Display 180
Auto Mode LED
Element On LED
Ozone/UV On LED
Sleep Cycle LED
DOWN ( ) button to
.
DOWN ( ) button to
TIME ( ) display
DOWN ( ) button to
DOWN ( ) button to
DOWN ( ) button to
OK ( ) button to
OK
DOWN ( ) button to
OK ( ) button
OK
This appliance is
