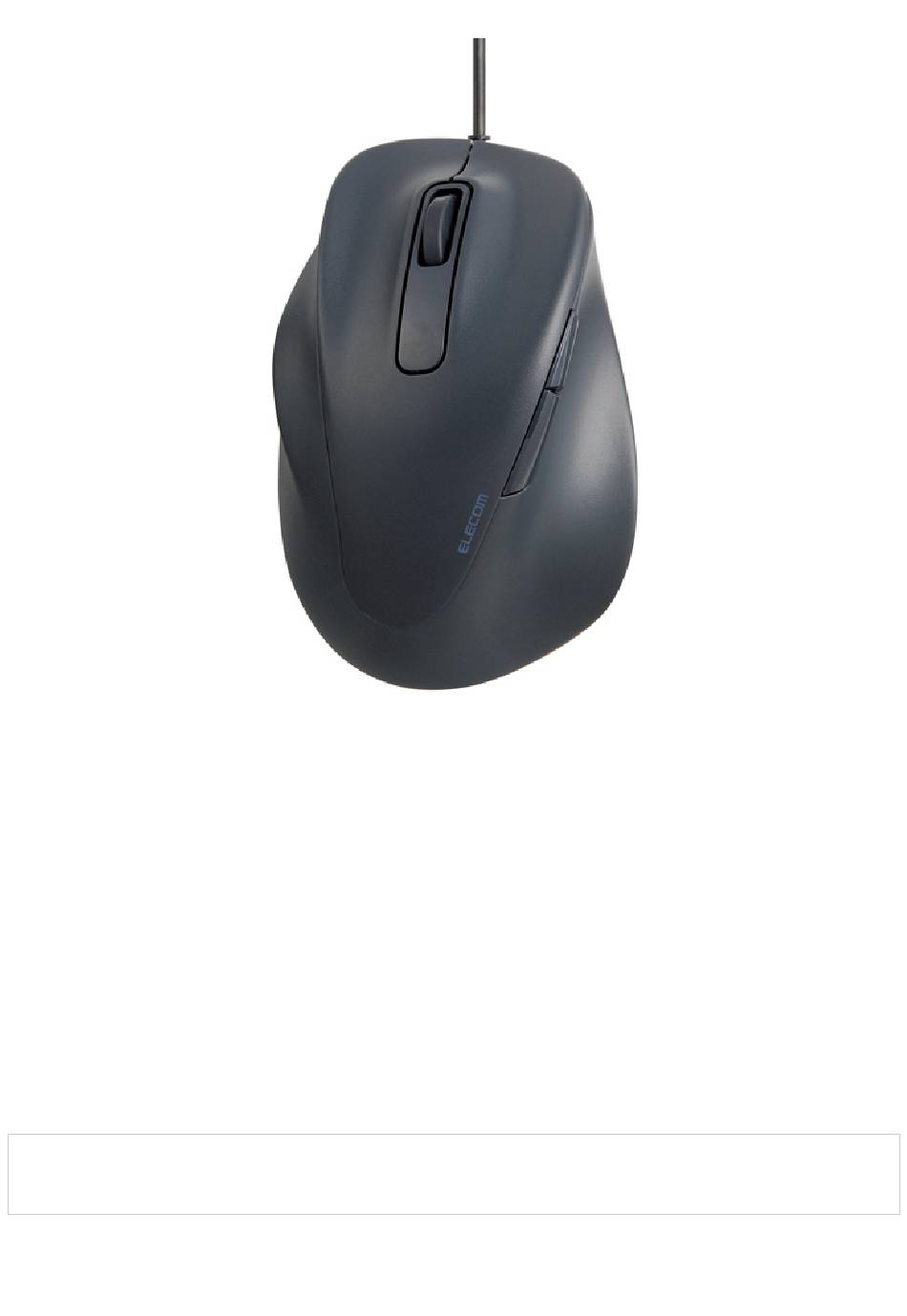

Wired Mouse

M-XGS31UBSK series (S size)

M-XGM31UBSK series (M size)

M-XGL31UBSK series (L size)

M-XGXL31UBSK series (XL size)

User Manual

Compliant model: M-XGS31UBS, M-XGM31UBS, M-XGL31UBS, M-XGXL31UBS

Precautions

This manual describes the necessary precautions you should take for safe operation of this

product.

Need help?

Do you have a question about the M-XGS31UBSK Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Elecom M-XGS31UBSK Series

Page 1 Wired Mouse M-XGS31UBSK series (S size) M-XGM31UBSK series (M size) M-XGL31UBSK series (L size) M-XGXL31UBSK series (XL size) User Manual Compliant model: M-XGS31UBS, M-XGM31UBS, M-XGL31UBS, M-XGXL31UBS Precautions This manual describes the necessary precautions you should take for safe operation of this...
Page 2 Observe these precautions carefully to avoid personal injury, damage, ﬁre, and other problems. Meaning of symbols WARNING Failure to observe precautions carries the possibility of serious personal injury or death due to ﬁre, electric shock, or other causes. CAUTION Failure to observe precautions may result in personal injury due to electric shock or other causes, and may damage other equipment.
Page 3 Do not put this product in ﬁre. Breakage may cause ﬁre or injury. Please do not remove or connect the USB connector with wet hands. In addition, do not modify or forcibly bend the product. It can cause a ﬁre or electric shock. CAUTION Do not place this product in any of the following environments: In a car exposed to sunlight or a place exposed to direct sunlight.
Page 4 quality and/or discolor this product. Please note the following for disinfection. Gently soak a cleaning cloth, such as a microﬁber cloth, in the disinfectant solution. Make sure there are no loose droplets and gently wipe the product using the cloth. After wiping, dry thoroughly and wipe oﬀ...
Page 5 This mouse is designed for the left hand. The button on the right is the default “left click”. To swap the left-click and right-click buttons, "Change OS settings (swap left-click and right-click buttons)" or use the function assignment feature on "ELECOM Mouse Assistant”. *Swapping of left-click and right-click buttons is not supported on Android.
Page 6 Perform the “Back” function on the Web browser. ⑤ “Forward” button Perform the “Forward” function on the Web browser. You will need to install the “ELECOM Mouse Assistant Mac version” from our website to use the “Back” and “Forward” button on Mac. Please refer to “Install ELECOM Mouse Assistant”.
Page 7 3) The driver will be automatically installed, and you will then be able to use the mouse. You can now use the mouse. By downloading and installing the "ELECOM Mouse Assistant" from our company website, functions such as button assignment function and presentation mode can be used. Please proceed to “Install ELECOM Mouse...
Page 8 *If the OS setting is changed, the left-click and right-click buttons will also be swapped for other mice used simultaneously on the same PC. Use the function assignment feature on ELECOM Mouse Assistant to swap the buttons on this product only. ⇒“Install ELECOM Mouse Assistant”」...
Page 9 Once you click "Right", the left and right mouse buttons will be swapped. When “Left” is selected When “Right” is selected Left click Left click ■For Windows 10 1) Open “Mouse” properties. From the Start menu, click the Settings icon, select “Devices”, then “Mouse”. 2) Click the “Select your primary button”...
Page 10 Once you click "Right", the left and right mouse buttons will be swapped. When “Left” is selected When “Right” is selected Left click Left click Change the mouse pointer speed Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow.
Page 11 2) Click on “Bluetooth & devices” and then “Mouse”. 3) Adjust the “Mouse pointer speed” slider bar to adjust the mouse pointer movement speed. ■ For Windows 10 1) Open “Mouse” properties. From the Start menu, click the Settings icon, select “Devices” → “Mouse”, then click “Additional mouse options”...
Page 12 Change the number of lines scrolled in one wheel turn ■ For Windows 11 1) Click on “Start” on the bottom of the screen and click on “Settings”. The “Settings” page will appear. 2) Click on “Bluetooth & devices” and then “Mouse”.
Page 13 3) Adjust the “Lines to scroll at a time” slider bar to adjust the number of lines per scroll. ■ For Windows 10 1) Open “Mouse” properties. From the Start menu, click the Settings icon, select “Devices” → “Mouse”, then click “Additional mouse options”...
Page 14 Connecting to a PC 1) Start up a PC. Please wait until your PC has started up and can be operated. 2) Plug the USB connector into the USB-A port on a PC. You may use any USB-A port.
Page 15 3) The driver will be automatically installed, and you will then be able to use the mouse. You can now use the mouse. By downloading and installing the "ELECOM Mouse Assistant" from our company website, functions such as button assignment function and presentation mode can be used. Please proceed to “Install ELECOM Mouse...
Page 16 *If the OS setting is changed, the left-click and right-click buttons will also be swapped for other mice used simultaneously on the same PC. Use the function assignment feature on ELECOM Mouse Assistant to swap the buttons on this product only.⇒“Install ELECOM Mouse Assistant”」...
Page 17 Once you click "Click Left Side", the left and right mouse buttons will be swapped. When “Click Right Side” When “Click Left Side” is selected is selected Left click Left click Change the mouse pointer speed Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow.
Page 18 2) Adjust the “Tracking speed” slider to adjust the speed of the mouse pointer. Unchecking “Natural scrolling” will cause the scroll direction to be reversed. ChromeOS Connecting to a PC 1) Start up a PC. Please wait until your PC has started up and can be operated.
Page 19 2) Plug the USB connector into the USB-A port on a PC. You may use any USB-A port. For devices that do not have a USB-A port, please use a USB Type-C hub. ® Ensure that the connector is correctly oriented to the port. If there is strong resistance when inserting, check the shape and orientation of the connector.
Page 20 3) The driver will be automatically installed, and you will then be able to use the mouse. You can now use this product. Swap left-click and right-click buttons The left-click and right-click buttons can be swapped on your PC. *If the OS setting is changed, the left-click and right-click buttons will also be swapped for other mice used simultaneously on the same PC.
Page 21 4) Click the "Swap primary mouse button" dropdown menu, then click "Right button". Once you click the "Right button", the left and right mouse buttons will be swapped. When “Left button” is When “Right button” is selected selected Left click Left click...
Page 22 Change the mouse pointer speed Adjust the mouse pointer movement speed on your PC if the mouse pointer moves too fast or too slow. 1) Click on the quick settings panel on the bottom right. 2) Click on “Settings”. The settings page will appear. 3) Click on “Mouse and touchpad”...
Page 23 ELECOM Mouse Assistant must be installed. “ELECOM Mouse Assistant” is a software that allows you to use the mouse more eﬀectively. Using ELECOM Mouse Assistant, users can set the functions they want to the unique buttons and use them to perform the operations they want.
Page 24 Speciﬁcations Connector type USB-A connector Compatible models USB port-equipped Windows OS, macOS, and ChromeOS devices Supported OS Windows 11, Windows 10, macOS Ventura 13, ChromeOS * Update for each new version of the OS or the installation of a service pack might be required. Sensor Resolution 2000 DPI Read method...
Page 25 M-XGXL31UBS series: approximately 125 g / 4.4 oz * including cable Operating environment Temperature: 5 °C to 40 °C / 41 °F to 104 °F; humidity: up to conditions 90 % RH (without condensation) Storage environment Temperature -10 °C to 60 °C / 14 °F to 140 °F; humidity: up conditions to 90 % RH (without condensation) Troubleshooting...
Page 26 spread of infection through the equipment. Gently soak a cleaning cloth, such as a microﬁber cloth, in the disinfectant solution. Make sure there are no loose droplets and gently wipe the product using the cloth. After wiping, dry thoroughly and wipe oﬀ any residual liquid. * Do not spray any liquid onto the product directly.
Page 27 2) Click ”All apps”. 3) Click ”Windows Tools”. The ”Windows Tools” screen will appears.
Page 28 4) Double-click ”Control Panel”. 5) Click ”System and Security”.
Page 29 6) Click ”Power Options”. 7) Click "Change plan settings" to the right of the item selected in "Power Plan". 8) On the ”Edit Plan Settings” screen, click “Change advanced power settings”.
Page 30 9) On the ”Power Options” screen, click the ”+” mark in ”USB settings” from the list, and then click the ”+” mark in ”USB Selective Suspend Settings”. 10) In the drop box next to ”Settings”, select ”Disable”. If you are using a laptop, there are two items instead of “Settings”: “On battery” and “Plugged in”.
Page 31 11) Click "OK" to conﬁrm the settings. 12) Click the “X” (close) in the upper right corner to close “Edit Plan Settings”. For Windows 10 1) Right-click the Start button at the bottom left of the screen, click “Power Options”, and then click “Additional power settings”...
Page 32 4) On the “Power Options” screen, click the “+” mark in “USB settings” from the list, and then click the “+” mark in “USB Selective Suspend Settings”. 5) In the drop box next to “Settings”, select “Disable”. If you are using a laptop, there are two items instead of “Settings”: “On battery” and “Plugged in”.
Page 33 6) Click “OK” to conﬁrm the settings. 7) Click the “X” (close) in the upper right corner to close “Edit Plan Settings”. Compliance status Model/모델명: M-XGXL31UBS www.elecom.co.jp/global/certiﬁcation/ China / 中国 Korea / 대한민국 Taiwan / 台灣 Vietnam / Việt Nam...
Page 34 Speciﬁcations and external appearance of this product may be changed without prior notice for the purpose of product improvement. ELECOM is not responsible for any damages to, or failure of other devices caused by using this product. The images are for illustration purposes only and may diﬀer from your actual product.
Page 35 Las especiﬁcaciones y la apariencia externa de este producto pueden modiﬁcarse sin previo aviso con el ﬁn de mejorar el producto. ELECOM no se hace responsable de los daños o fallos de otros dispositivos causados por el uso de este producto.
Page 36 As especiﬁcações e aparência externa deste produto podem ser alteradas sem aviso prévio para ﬁns de melhoria do produto. A ELECOM não é responsável por quaisquer danos ou falhas de outros dispositivos causados pelo uso deste produto. As imagens são apenas para ﬁns ilustrativos e podem diferir do produto real.
Page 37 일본 외 다른 국가에서 구입하는 고객은 문의 사항이 있는 경우 제품 구입 국가의 대리점에 연락하 십시오. ‘ELECOM CO., LTD.(일본)’는 일본 이외의 국가에서 구입 또는 사용 문의에 대한 고객 지원을 제공하지 않습니다. 또한 일본어 이외의 외국어는 지원되지 않습니다. 제품의 교환은 ELECOM 보증...
