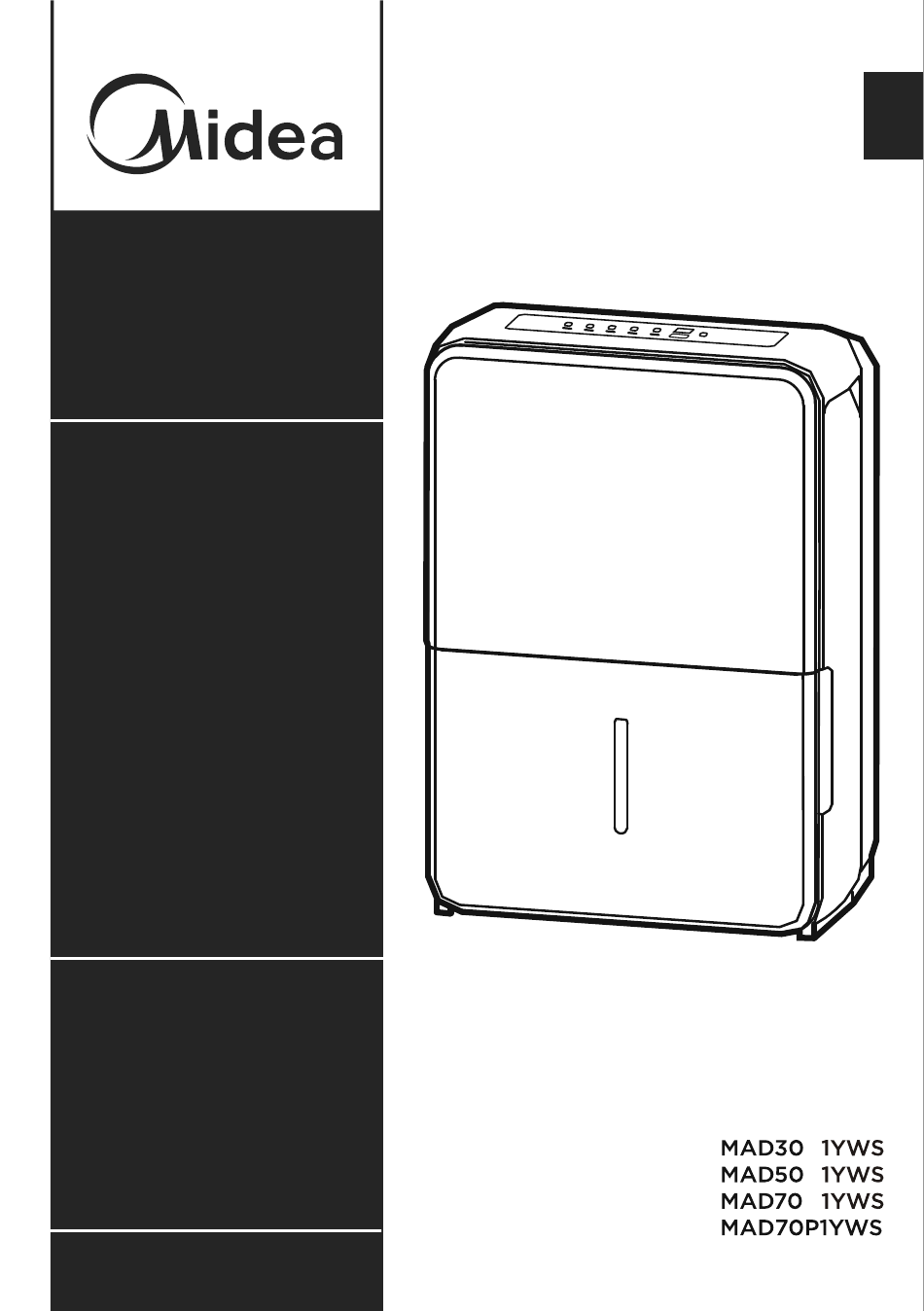

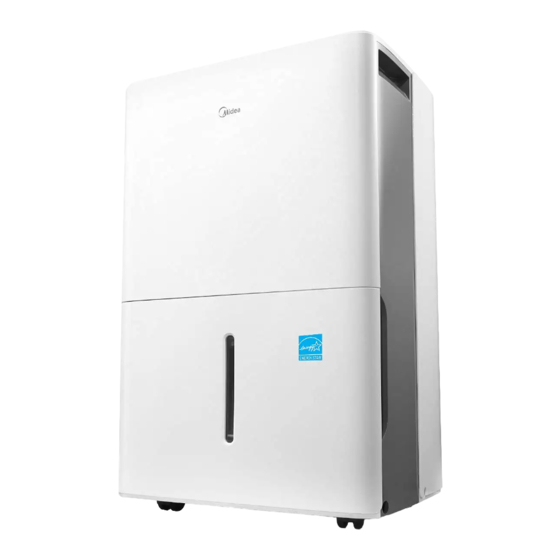

Dehumidifier
MDP
Rated voltage: 115V
Rated power: 295 ~ 690W
Frequency: 60Hz
Moisture
removal: 30 ~ 70 Pints/day
Warning notices: Before
using this product, please
read this manual carefully
and keep it for future
reference.
The design and
specifications are subject to
change without prior notice
for product improvement.
Consult with your dealer or
manufacturer for details.
version A - 09 - 2018
USER MANUAL
C
C
C
www.midea.com
en
Advertisement
Table of Contents
Related Manuals for Midea MDP Series
Summary of Contents for Midea MDP Series
- Page 1 The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details. version A - 09 - 2018 www.midea.com...
-
Page 2: Table Of Contents
Owner’s Manual Safety Precautions ................3 Unit Specifications and Features ........... 6 Operating Instructions ..............7 Installation Instructions ..............13 Care and Cleaning ................14 Troubleshooting Tips ............... 15 Read This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly. -
Page 3: Safety Precautions
Safety Precautions To prevent injury to the user or personal and property damage, these instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The level of risk is shown by the following indications. This symbol indicates the possibility of death or serious injury. - Page 4 CAUTION • Do not use the unit in small spaces. Lack of ventilation can cause overheating and fire. • Do not use in places where water may splash onto the unit. Water may enter the unit and degrade the insulation. It may cause an electric shock or fire.
- Page 5 WARNING - Electrical Information • The manufactures nameplate is located on the rear panel of the unit and contains electrical and other technical data specific to this unit. • Be sure the unit is properly grounded. To minimize shock and fire hazards, proper grounding is important.
-
Page 6: Unit Specifications And Features
Unit Specifications and Features Product overview F r o n t R e a r Control panel Air outlet Panel Air intake Air filter (behind the grill) Continuous Water bucket drain hose outlet Power cord buckle Water level (placed in the water window bucket, used only Pump drain... -
Page 7: Operating Instructions
Operating Instructions CAUTION Clean your unit occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards. Key Pad Features Pump Auto defrost Continuous operation operation indicator on indicator light light on indicator Comfort Bucket... - Page 8 (COMFORT) Button For damper air, press the button and set a higher value (%). Press to activate the comfort dehumidifying operation. • TIMER Set Control Buttons Use the key buttons to set NOTE the Timer ON or Timer OFF from 0 to 24 hours.
- Page 9 • Press or hold the key buttons Other Features to change the Timer by 0.5 hour increments, up to 10 hours, then at Bucket Full Light 1 hour increments up to 24 hours. Lights up when the bucket is ready to be The control will count down the time emptied.
- Page 10 Removing Collected Water There are three ways to remove collected water: 1. Use the bucket • When the unit is off, if the bucket is full, the Full 1. Pull out the bucket. indicator light will light. • When the unit is on, if the bucket is full, the compressor and the fan turn off, and the Full indicator light will light, the digital display shows P2.
- Page 11 2. Continuous draining • Water can be automatically emptied into a floor drain by attaching the unit with a water hose (Id Ø 5/16”, not included) with a female threaded end (ID: M = 1”, not included). • Remove the plastic cover from the back drain outlet of the unit and set aside, then insert the drain hose Remove the through the drain outlet of the unit and lead the...
- Page 12 NOTE The pump may generate a loud noise for the first 3~5 minutes of operation. • Make sure the hose is secure so there are no leaks. • Direct the hose toward the drain, making sure that there are no kinks that will stop the water flowing. •...
-
Page 13: Installation Instructions
Installation Instructions Positioning the Unit A dehumidifier operating in a basement will have little or no effect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. (See Fig. 13) •... -
Page 14: Care And Cleaning
Care and Cleaning Turn the dehumidifier off and disconnect the plug from the power source before cleaning. 1. Clean the Grill and Case • Use water and a mild detergent. Do not use bleach or abrasives. • Do not splash water directly onto the unit. Doing so may cause an electrical shock, cause the insulation to deteriorate, or cause the unit to rust. -
Page 15: Troubleshooting Tips
Troubleshooting Tips Before calling for service, review this list. It may save you time and money. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Solution Make sure the dehumidifiers plug is connected firmly into the wall outlet. Check the house fuse/circuit breaker box.
