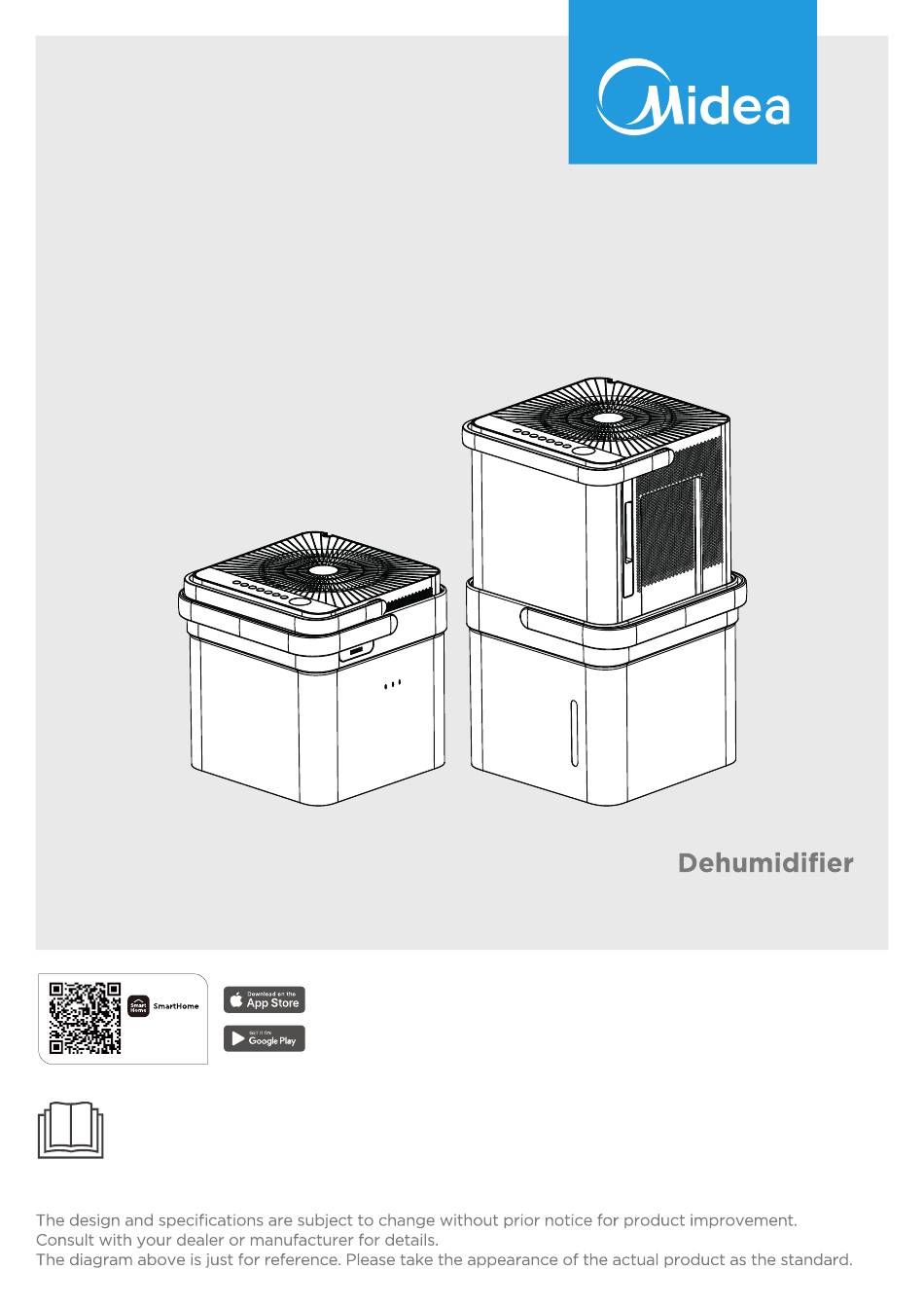

- Page 1 USER MANUAL Download the app & activate product MAD20S1QWT \ MAD35S1QWT \ MAD50S1QWT MAD50PS1QWT-B \ MAD50PS1QWT \ MAD50PS1QGR MAD50PS1QWT-S Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
-
Page 2: Table Of Contents
THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new dehumidifi er offers in a safe way. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Intended Use The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you fi nd any damage, please contact the retailer or dealer. Please note modifi... -
Page 4: Safety Manual
SAFETY MANUAL FOR R32 REFRIGERANT MODEL North America Products IMPORTANT NOTE: Read this manual CAUTION: carefully before installing or operating Risk of fire ISO 817 your new air conditioning unit. Make sure flammable materials to save this manual for future reference. Explanation of symbols displayed on the unit CAUTION This symbol shows that the operation manual should be read carefully. - Page 5 WARNING Please read through these instructions before you start the installation process. Improper installation can cause damage to the unit and/or personal property and can be a personal safety hazard. • Be sure the dehumidifi er has been securely and correctly installed according to the installation instructions in this manual.
- Page 6 • Keep ventilation openings clear of obstruction. • Unit is only to be serviced by a Midea authorized servicer, please call Customer Service at 1-866-646-4332 for support. • Flammable refrigerant R32 is used within appliance. Please follow the instructions carefully to handle, install, clean, and service the appliance to avoid damage or hazard.
-
Page 7: Specifications And Features
SPECIFICATIONS AND FEATURES Product overview Front Rear Front Panel Air Intake Power Cord Storage Channel Pump Hose Outlet Bucket (pump model only) Handle Garden Relief Holes Hose Bucket Water Outlet Level Window Bucket Fig. 1 Bucket Control panel Lock tabs and Display Air Outlet Unit Handle... -
Page 8: Product Installation
PRODUCT INSTALLATION Positioning the Unit The dehumidifi er should be placed in the area where dehumidifi cation is desired most. Adjacent rooms in which dehumidifi cation is also desired should allow adequate airfl ow in and out of the space containing the dehumidifi er. •... - Page 9 Midea Cube Installation Modes and Installation Video The Midea Cube dehumidifier can be installed in 4 different modes – Bucket Mode, Bucketless Mode, Continuous Draining, and Drain Pump Mode (pump model only) Scan this QR code with your mobile device to watch an installation video of the Midea Cube that walks through all four installation modes.
- Page 10 Bucket Mode - Set Up Instructions (Install Video Time 0:36) Step 1: Separate dehumidifi er & bucket from the nested shipping/storage position. Remove all packaging materials from the unit. Fig. 6a Nested Shipping & Storage Position Fig. 6b Step 2: Rotate dehumidifi...
- Page 11 Emptying the Bucket (Time 2:56) • When the bucket reaches the set Fill Level, the NOTE unit’s display will show P2 regardless of power • When you remove the unit from the bucket do status not set the unit on any electrical components as •...
- Page 12 Bucketless Mode – Set Up Instructions (Install Video Time 3:32) Bucketless mode allows you to run the unit in continuous drain mode without the bucket in place, best for use in smaller spaces. NOTE Bucketless mode must be enabled within 3 minutes of plugging in the dehumidifi er, so it is best to set up the unit for this operation before powering on the unit.
- Page 13 Continuous Draining - Set Up Instructions (Install Video Time 4:39) Step 1: Before placing the unit on the bucket, remove the continuous drain cover from the back of the bucket. Make sure to keep the cover if you ever plan to change operating modes. Fig.
- Page 14 Drain Pump Mode - Set Up Instructions (Install Video Time 5:43) Step 1: Before placing the unit on the bucket, remove the continuous drain cover from the back of the bucket. Make sure to keep the cover if you ever plan to change operating modes. Fig.
- Page 15 Step 4: Insert the pump drain hose to the back of the dehumidifi er, using the connection next to the continuous drain port. Check to make sure the pump drain hose is fully seated in the pump drain connector. NOTE To remove the pump hose, push in on the collar around the hose while pulling the hose out.
-
Page 16: Operation Instructions
OPERATION INSTRUCTIONS Control Panel Features Fill Level Network Filter Indicator Button and Connection Indicators Indicator Bucketless LED Display Pump Indicator Indicator (some models) Description • Press to turn unit on or off. ON / OFF • Press for 3 sec to initiate smart connection mode. •... - Page 17 3. FAN BUTTON: When the bucket is full, the Display will show P2. The weights above are approximate weights of the Press this button to change the fan speed between bucket when fi lled with the corresponding volume High and Low. of water.
-
Page 18: Auto Defrost
LED Display Other Features Shows the set humidity or auto start/stop time (0 ~ AUTO DEFROST 24h), also shows error and protection codes. When frost builds up on the evaporator coils, the compressor will cycle off and Auto Defrost function will run automatically. -
Page 19: App Instructions
The app is available for both iOS and Android, however older versions may no longer be compatible. Please keep the app updated with the latest version. Midea makes no guarantee of compatibility and is not responsible for issues arising as a consequence thereof. - Page 20 Using the SmartHome App CAUTION Ensure that your mobile phone is connected to the wireless network. Bluetooth must be turned on. The device must also be powered up. Step 1: Download the SmartHome app Scan the QR code below to download the SmartHome app from app store or search for it directly on the Google Play Store or Apple’s App Store.
- Page 21 2) If no such message appears, proceed as follows: Tap on “+” and select your device in the list of nearby available devices. If your device is not listed, please add your device manually, fi rst selecting the device category e.g. Dehumidifi er. 3) Follow the steps in the app to connect your device to the wireless network.
- Page 22 Compliance We, hereby declare that this dehumidifi er is in compliance with the relevant provisions of RE Directive 2014/53/EU. A copy of the full DoC is attached (Europen Union products only). Wireless module models: US-SK105: FCC ID: 2ADQOMDNA21 IC: 12575A-MDNA21 This device complies with Part 15 of the FCC Rules and it contains licence exempt transmitter(s) / receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
-
Page 23: Cleaning And Maintenance
CLEANING AND MAINTENANCE Turn the dehumidifi er off and disconnect the plug from the power source before cleaning. 1. Clean the Grill and Case • Use water and a mild detergent. Do not use bleach or abrasives. • Do not splash water directly onto the unit. Doing so may cause an electrical shock, cause the insulation to deteriorate, or cause the unit to rust. - Page 24 Nesting and Storing Instructions Step 1: Power off and unplug the unit. Then lift the dehumidifi er off the bucket. Step 2: Empty all water from bucket. WARNING Make sure the bucket is empty before nesting the dehumidifi er to avoid risk of electrical shock.
-
Page 25: Troubleshooting Tips
TROUBLESHOOTING TIPS Malfunction Diagnosis Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Solution Make sure the dehumidifi er plug is connected fi rmly into the wall outlet. Check the house fuse/circuit breaker box. -
Page 26: Warranty
Installation and Operating Instructions. 2) Damages caused by serviced performed by persons other than those authorized by Midea customer service; or external causes such as abuse, misuse, inadequate power supply or acts of God. - Page 28 2023 CD001UI-DM(NEW)A 16120100A19855 20231215...
