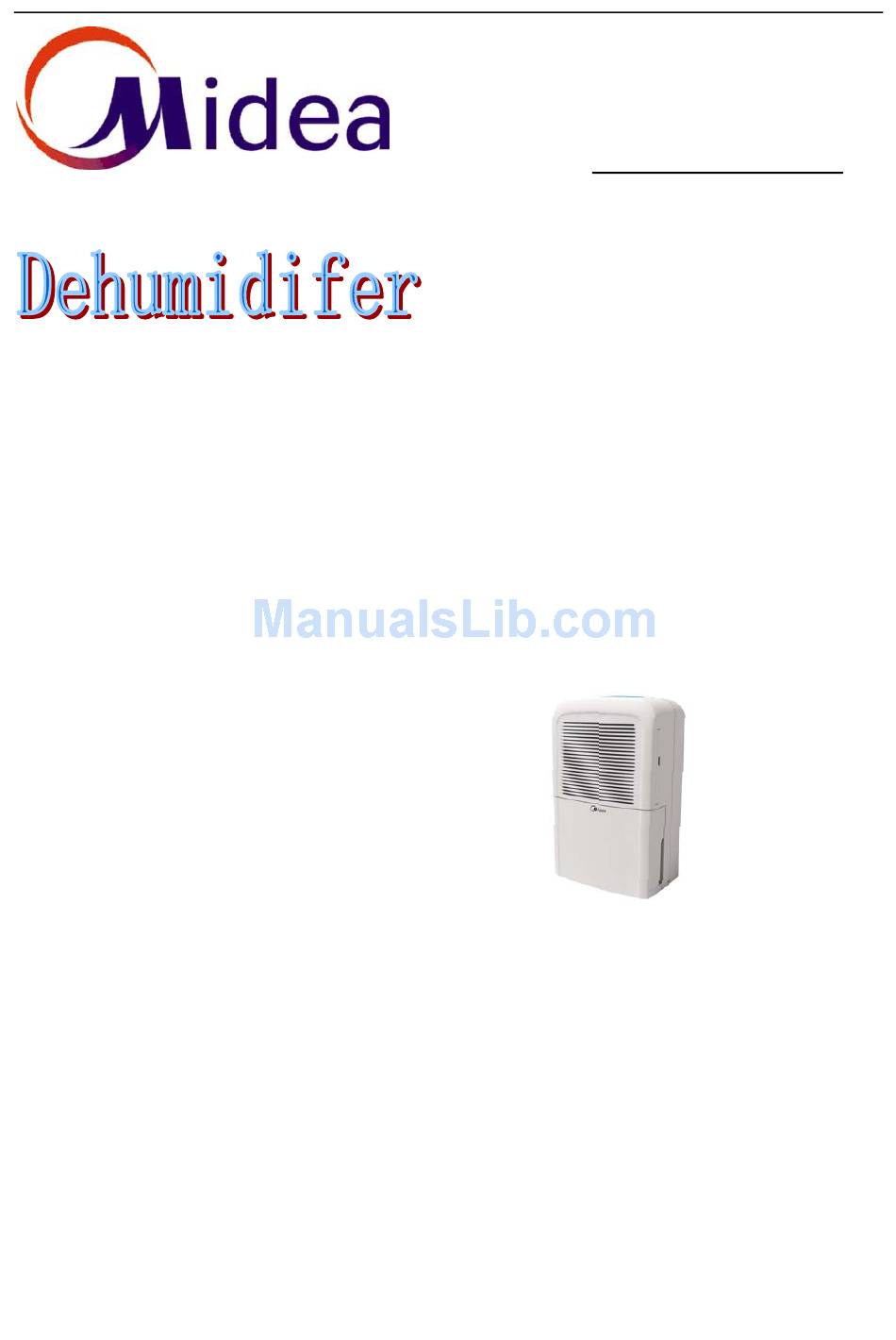

- Page 1 Website: www.mideaaircon.com Service manual CAUTION - BEFORE SERVICING THE UNIT, READ THE SAFETY - PRECAUTIONS IN THIS MANUAL. - ONLY FOR AUTHORIZED SERVICE PERSONNEL. MODELS: CE-CF0.3BD/N3-F CE-CFZ0.3BD/N3-F...
-
Page 2: Table Of Contents
GD Midea Refrigerant Equipment Co. Ltd Service manual for F Dehumidifier CONTENTS 1. PREFACE 1.1 SAFETY PRECAUTIONS.......................1 1.2 INSULATION RESISTANCE TEST....................1 1.3 FEATURES.............................2 1.4 CONTROL LOCATIONS........................2 1.5 OUTSIDE DIMENSIONS........................2 2. ELECTRONIC FUNCTION……………………………………………………………………………………...3 3. TROUBLESHOOTING…………………………………………………………………………………………..4 4. WIRING DIAGRAM..........................8 5. EXPLODED VIEW ..........................8 6. -
Page 3: Features
4.CONTINUE indicator: Lights up when the desired humidity. unit is on CONTINUOUS DEHUMIDIFYING mode. 1.5 OUTSIDE DIMENSIONS Model Width Height Depth (mm) (mm) (mm) CE-CF0.3BD/N3-F CE-CFZ0.3BD/N3-F... -
Page 4: Electronic Function
GD Midea Refrigerant Equipment Co. Ltd Service manual for F Dehumidifier 2 Electronic function 2.1 When the unit is just powered on 2.7.1 Water full protection. When the water tank is When the unit is just powered on or the dropped full , the compressor and fan motor will shut down power is just restored, the unit will immediately and the water full indicator will flash with LED... -
Page 5: Troubleshooting Guide
3 TROUBLESHOOTING GUIDE 3.1 TROUBLESHOOTING GUIDE In general, possible trouble is classified in three kinds. One is called Starting Failure which is caused from an electrical defect, another is ineffective Air Conditioning caused by a defect in the refrigeration circuit and improper application, and the other is called the Structure Damage. - Page 6 GD Midea Refrigerant Equipment Co. Ltd Service manual for F Dehumidifier 3.1.3 Humidity sensor check Humidity display is chaos Water on the Humidity sensor Dry it over heat board Humidity sensor board trouble or main PCB defective Replace humidity sensor board trouble or main PCB 3.1.4 Fail to start or fail to start motor 3.1.5 Abnormal noise...
- Page 7 GD Midea Refrigerant Equipment Co. Ltd Service manual for F Dehumidifier 3.1.6 Complaint and remedy Complaint Cause Remedy No display on Transformer Check resistance between the two input/output lines on panel or any one of (Discharge transformer transformer. Replace the transformer if either of the input/output the button failure.
- Page 8 GD Midea Refrigerant Equipment Co. Ltd Service manual for F Dehumidifier Worn bearings Replace the motor if knocking sounds continue w hen running or loose, or the motor hums or noise appears to be internal while running. Excessive Copper tubing Remove the cabinet and carefully rearrange tubing not to noise contact cabinet, compress or, shroud and barrier.
-
Page 9: Wiring Diagram
GD Midea Refrigerant Equipment Co. Ltd Service manual for F Dehumidifier frequently. Humidity sensor Replace it. Main PCB Check and replace the main PCB. 4 WIRING DIAGRAM 4.1 For models: CE-CF0.3BD/N3-F CE-CFZ0.3BD/N3-F 5 EXPLODED VIEWS (See attached files) 6 SPECIFICATIONS (See attached files)
