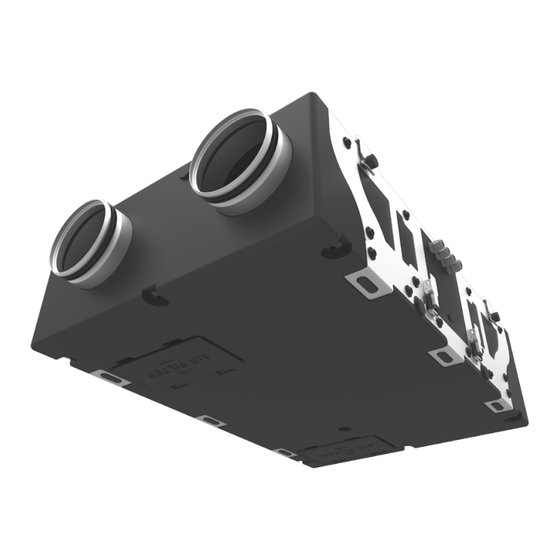

- Page 1 Air hAndling unit Komfort EC D5B180 S14 Komfort EC D5B180-E S14 USER’S MANUAL...
-
Page 2: Table Of Contents
Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Unit design and operating principle ..........................6 Installation and set-up................................8 Connection to power mains ..............................12 Unit control ....................................... - Page 3 Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de • Do not change the power cable length at your own discretion. Do not bend the • Do not lay the power cable of the unit in power cable. Avoid damaging the power close proximity to heating equipment. cable.
-
Page 4: Purpose
Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de PURPOSE Due to the ability to save heating energy by means of energy recovery, the unit is an important element of energy-efficient premises. The unit is a component part and is not designed for stand-alone operation. The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of supply air. -
Page 5: Technical Data
Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 80 %. The unit is rated as a Class I electrical appliance. Hazardous parts access and water ingress protection rating: •... -
Page 6: Unit Design And Operating Principle
Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de DESIGN AND OPERATING LOGIC The unit has the following operating logic: warm stale extract air from the room flows into the unit, where it is filtered by the extract filter, then air flows through the heat exchanger and is exhausted outside by the extract fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the supply filter. - Page 7 Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de UNIT OPERATION MODES Heat recovery Warm extract air from the room flows into the unit and is cleaned in the extract filter. Then the air is moved through the heat exchanger and is exhausted outside with the extract fan. Cold fresh air from outside flows into the unit, where it is cleaned in the supply filter. Then the air flows through the heat exchanger and is directed to the room with the supply fan.
-
Page 8: Installation And Set-Up
Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de MOUNTING AND SET UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. FS2 HUMIDITY SENSOR INSTALLATION AND CONNECTION The FS2 humidity sensor is not included in the delivery and can be ordered separately. The humidity sensor must be installed prior to unit mounting. Install the humidity sensor into the mount on the inner side of the unit and connect the humidity sensor to the appropriate connector. - Page 9 Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de Expansion Fastener anchor Mounting bracket Fasteners for mounting are not included in the delivery set and should be ordered separately. While choosing fasteners consider the material of the mounting surface as well as the weigh of the unit, refer to the Technical Data section.
- Page 10 Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de Installation options according to diagrams 4-5 are possible for the Komfort EC D5B180-E modification. INTAKE AIR EXHAUST AIR SUPPLY AIR EXTRACT AIR SUPPLY AIR EXTRACT AIR Diagram 4. Wall vertical installation Diagram 5. Wall horizontal installation CONDENSATE DRAINAGE The Komfort EC D5B180 heat recovery units require condensate drainage.
- Page 11 Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de Plug Drain pipe Drain hole location in case of installation according to the Diagram 1 Then connect the drain pipe to the sewage system using the SG-32 U-trap kit (available upon separate order). The pipes are required to have a minimum slope of 3°.
-
Page 12: Connection To Power Mains
Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de CONNECTION TO POWER MAINS DISCONNECT THE UNIT FROM POWER MAINS PRIOR TO ANY OPERATIONS. THE UNIT MUST BE CONNECTED TO POWER MAINS BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE SHOWN ON THE RATING PLATE. -
Page 13: Unit Control
Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de UNIT CONTROL OPERATION USING SOFTWARE To work with the pre-installed software, connect the unit to a laptop or to a PC via a USB cable with a Type A and Type В connectors. The USB cable is not included in the delivery set. USB Type A USB Type B The software enables editing the fan parameters:... -
Page 14: Technical Maintenance
Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS. FOLLOW THE SAFETY REGULATIONS WHEN CARRYING OUT MAINTENANCE. Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1. - Page 15 Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de To clean the heat exchanger, pull it out, drain the water through the pipes, then flush the heat exchanger with warm detergent solution. After cleaning install the dry heat exchanger with the drain pan back to the unit. 3.
-
Page 16: Storage And Transportation Regulations
Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 ˚С up to +40 ˚С and relative humidity up to 70 %. •... -
Page 17: Manufacturer's Warranty
Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. - Page 18 Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de...
-
Page 19: Certificate Of Acceptance
Komfort EC d5B180(-E) S14 www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Komfort EC D5B180_____ S14 Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 20 www.blaubergventilatoren.de B170EN-01...
