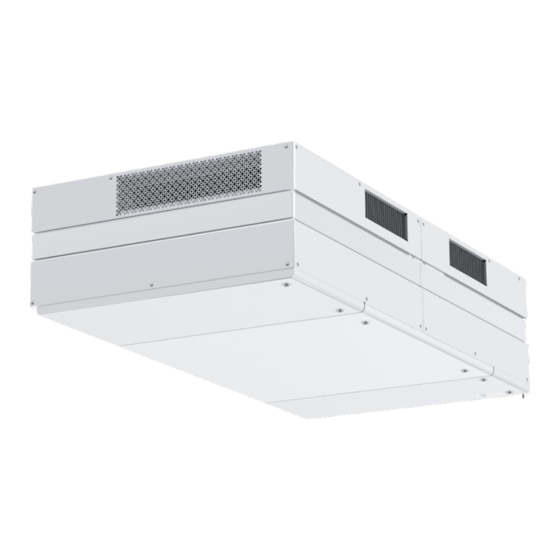

- Page 1 Single-room air handling unit CiViC eC dB 1000 CiViC eC dBe 1000 CiViC eC dBe2 1000 USER'S MANUAL...
-
Page 2: Table Of Contents
Warranty card ....................................23 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the CIVIC EC DB 1000 unit and all its modifications. - Page 3 CiViC eC dB 1000 blaubergventilatoren.de Connection to the mains must be made through a disconnecting device, which is integrated into the fixed wiring system in accordance with the wiring rules for design of electrical units, and has a contact separation in all poles that allows for full disconnection under overvoltage category III conditions.
-
Page 4: Purpose
CiViC eC dB 1000 blaubergventilatoren.de PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 5: Technical Data
CiViC eC dB 1000 blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 60 % without condensation. In cold, damp rooms, there is a possibility of freezing or condensation inside and outside the casing. - Page 6 CiViC eC dB 1000 blaubergventilatoren.de OVERALL AND CONNECTING DIMENSIONS [mm] 2327 1295 1180 2xØ11 1159 2xØ11 1163 1763...
-
Page 7: Design And Operating Principle
CiViC eC dB 1000 blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE Warm stale extract air from the room flows into the unit, where it is filtered by the extract filter, then air flows through the heat exchanger and is exhausted outside by the exhaust fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the supply filter. - Page 8 CiViC eC dB 1000 blaubergventilatoren.de Service side view CIVIC EC DB 1000 CIVIC EC DBE 1000 CIVIC EC DBE2 1000 Extract filter Supply filter Exhaust fan Supply fan ...
- Page 9 CiViC eC dB 1000 blaubergventilatoren.de Air movement inside the unit...
-
Page 10: Mounting And Set-Up
CiViC eC dB 1000 blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. WARNING! Before installation operations route necessary cables and wires to the unit mounting place. WARNING! If the overall dimensions of the assembled unit do not allow moving it to the installation site, it is permissible to temporarily disconnect the unit blocks, and then assemble them in the reverse order. - Page 11 CiViC eC dB 1000 blaubergventilatoren.de After moving the blocks to the installation site, connect the blocks 1, 2, 3. Fasteners for unit mounting are not included in the delivery set and must be ordered separately. While choosing fasteners consider the material of the mounting surface as well as the weigh of the unit, refer to the Technical data section.
- Page 12 CiViC eC dB 1000 blaubergventilatoren.de UNIT INSTALLATION Mark the holes using the mounting bracket or template, drill holes for fasteners and through-holes in the wall Ø~350 mm for Ø 315 mm air ducts. Cut the air ducts to the required length, equal to the wall width, +15 mm to fix the unit to the spigots on the room side. From the outside of the room, the air duct must be cut flush with the wall of the building for the installation of ventilation grilles (purchased separately).
- Page 13 CiViC eC dB 1000 blaubergventilatoren.de Connect the connectors of the control devices according to the marking. Once cables and conductors have been connected, any sagging must be eliminated with cable ties.
- Page 14 CiViC eC dB 1000 blaubergventilatoren.de Install the decorative panels. Install the panels in the centre first, then the top and bottom panels. Install the hinged doors. Remove the retaining screws. Hang the doors. Install the retaining screws to prevent the doors from sliding off.
- Page 15 CiViC eC dB 1000 blaubergventilatoren.de Install the Wi-Fi antenna. CONDENSATE DRAINAGE ARRANGEMENT The unit is equipped with a drain pump for timely removal of condensate from the unit. Connect the flexible hose going from the pump outlet to the sewage system.
- Page 16 CiViC eC dB 1000 blaubergventilatoren.de Sensor mounting (not included in the delivery set) The CO , humidity and VOC sensors are installed in the middle block of the unit. For installation, the heat exchangers must be removed. Sensor positioning The CO2 sensor and VOC sensor are fixed on brackets. The humidity sensor is fastened with a threaded rivet.
- Page 17 CiViC eC dB 1000 blaubergventilatoren.de 1 – CO2 sensor; 2 – humidity sensor; 3 – VOC sensor. Disassemble the CO2 and VOC sensors according to the manual supplied with them. Connect the sensor to the cable according to the diagram. To do this, the cable must be removed from the terminal block located near the corresponding bracket. Reassemble the sensor in reverse order and fix it to the bracket.
-
Page 18: Connection To Power Mains
The automatic circuit breaker is not included in the delivery set and must be ordered separately. ACCESS TO THE CONTROL UNIT Setup mode button EXTERNAL WIRING DIAGRAM (CIVIC EC DB 1000) PE N L3 F1 PE N... -
Page 19: Control
CiViC eC dB 1000 blaubergventilatoren.de CONTROL The unit can be controlled using a wired wall control panel (S22, S25), a wireless wall control panel (S22 Wi-Fi) and a mobile app (S21). The panels and the app can be used together or separately. - Page 20 CiViC eC dB 1000 blaubergventilatoren.de 2. Heat exchanger maintenance (once per year). Some dust may accumulate on the heat exchanger even in case of regular maintenance of the filters. To maintain the high heat recovery efficiency, regular cleaning is required. To clean the heat exchanger, remove it from the unit and clean the heat exchanger by using compressed air or a vacuum cleaner.
-
Page 21: Troubleshooting
CiViC eC dB 1000 blaubergventilatoren.de TROUBLESHOOTING PROBLEM POSSIBLE REASONS TROUBLESHOOTING Make sure the power supply line is connected No power supply. correctly, otherwise troubleshoot a connection error. Turn the unit off. The fan(s) does (do) not start Troubleshoot the motor jam and the impeller when the unit is on. -
Page 22: Manufacturer's Warranty
CiViC eC dB 1000 blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 23: Certificate Of Acceptance
CiViC eC dB 1000 blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Single-room air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 24 blaubergventilatoren.de B177-1EN-03...
