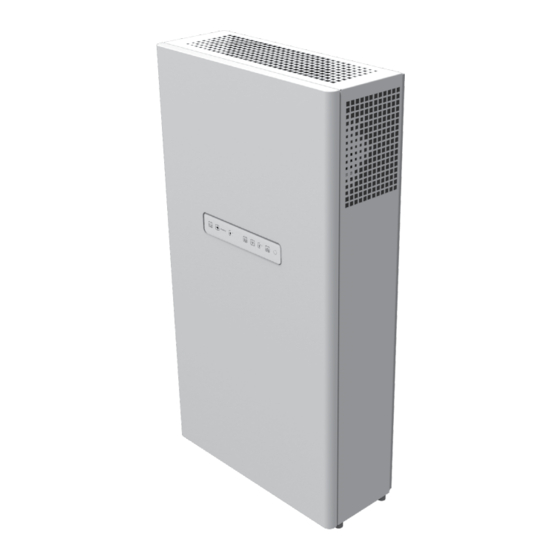

BLAUBERG Ventilatoren Freshbox 200 ERV WiFi User Manual
  1. Manuals
  2. Brands
  3. BLAUBERG Ventilatoren Manuals
  4. Air Handlers
  5. Freshbox 200 ERV WiFi
  6. User manual

BLAUBERG Ventilatoren Freshbox 200 ERV WiFi User Manual

Air handling unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Air hAndling unit
Freshbox 200 ERV WiFi
Freshbox E-200 ERV WiFi
Freshbox E1-200 ERV WiFi
Freshbox E2-200 ERV WiFi
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Freshbox 200 ERV WiFi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLAUBERG Ventilatoren Freshbox 200 ERV WiFi

Summary of Contents for BLAUBERG Ventilatoren Freshbox 200 ERV WiFi

  • Page 1 Air hAndling unit Freshbox 200 ERV WiFi Freshbox E-200 ERV WiFi Freshbox E1-200 ERV WiFi Freshbox E2-200 ERV WiFi USER’S MANUAL...

  • Page 2: Table Of Contents

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de CONTENTS Contents ......................................2 Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................5 Design and operating principle ............................7 Mounting and set-up .................................. 9 Control ......................................... 13 Technical maintenance ................................
  • Page 3 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de • Do not change the power cable length at your own discretion. Do not bend the • Do not lay the power cable of the unit in power cable. Avoid damaging the power close proximity to heating equipment. cable.

  • Page 4: Purpose

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air.

  • Page 5: Technical Data

    THE ExTRACT AIR TEMPERATURE SHOULD BE NO HIGHER THAN +40 ° C AND RELATIVE HUMIDITY SHOULD NOT ExCEED 70 % OVER THE ENTIRE TEMPERATURE RANGE. PARAMETER FRESHBOx 200 ERV WIFI FRESHBOx E-200 ERV WIFI FRESHBOx E1-200 ERV WIFI FRESHBOx E2-200 ERV WIFI...
  • Page 6 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Dimensions [mm] Model Ø D Freshbox (E)/(E1)/(E2)-200 ERV WiFi 1018...

  • Page 7: Design And Operating Principle

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de DESIGN AND OPERATING PRINCIPLE H13 filter (option) F7 filter Supply grille sensor (purchased separately) Supply air reheater Additional exhaust air duct G4 extract filter Extract grille Control unit Counter-flow Control panel heat exchanger Lock Extract fan Supply air preheater Supply fan Exhaust spigot...
  • Page 8 The reheater is switched on and off by means of a button on a sensor control panel, a remote control or via a mobile application. The heat exchanger overheating protection in the Freshbox 200 ERV WiFi and Freshbox E1-200 ERV WiFi unit models without a preheater is achieved by automatic supply fan speed reduction according to extract air sensor readings.

  • Page 9: Mounting And Set-Up

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. BEFORE MOUNTING MAKE SURE THE CASING DOES NOT CONTAIN ANY FOREIGN OBJECTS (E.G. FOIL, PAPER). THE UNIT MUST BE MOUNTED ON A PLANE SURFACE.
  • Page 10 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Remove the mounting template and drill two through holes Ø 120 mm for round air ducts. When mounting the unit with an extract spigot, prepare a hole in the wall for a connecting bend and for laying of a rectangular air duct.
  • Page 11 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Remove the F7 and H13 filters for accessing the mounting holes. If an extract spigot is installed, remove the top protective panel and install the magnetic plug on the exhaust grille. When removing the panel, disconnect the grounding cable. Lift the unit, insert the spigots into the corresponding air ducts installed in the wall.
  • Page 12 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.

  • Page 13: Control

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de CONTROL The unit is controlled by means of a control panel on the unit casing, a remote control or via a mobile application. Control panel 1. The unit is switched on/off using 2. Ventilation modes can be controlled by the buttons.
  • Page 14 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Remote control Activation of the Unit on/o third speed Activation of the fth speed Activation of the rst speed Increase of the reheater temperature Decrease of the reheater setpoint (Freshbox E1/E2 200 ERV WiFi) temperature setpoint (Freshbox E1/E2 200 ERV WiFi) Reheater on/o (Freshbox E1/E2 200 ERV WiFi) Timer on/o Week-scheduled...
  • Page 15 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Run the installed application on the mobile device connected to the unit. • Select a desired connection type. • Enter the app menu CONNECTION - AT HOME. • Select Default • If the mobile device is connected to the Wi-Fi access point of the unit without a router, select the connection.
  • Page 16 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Wi-Fi parameter setup Menu ( )– Connection – Wi-Fi setup. Go to the application menu on your mobile device Then press Receive. The screen will display the current Wi-Fi parameter settings. Select one of the Wi-Fi operation modes: Access Point or Client. Access Point: access point mode without a home router.
  • Page 17 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Cloud server connection The units can be controlled using the mobile app via a cloud server connection. This function allows controlling the unit that is connected to the home router at any remote location via the Internet. Control via cloud server By default the function is disabled.
  • Page 18 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Menu structure Home page Indicators: Current type of connection to the unit. Home connection or connection via a cloud server through Internet respectively. Reheater activity. Filter replacement indicator. Red colour – alarm indication, orange colour – warning indication. Electric heater cooling indicator (preheating or reheating) before switching off the unit.
  • Page 19 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Basic settings Timers Main timer: timer mode settings. When the timer is activated in the Home page menu, the unit temporarily goes to the following settings: Selection of pre-set speed 1-5, Standby.. 00:30 Timer setting Control temperature selection.
  • Page 20 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Date and time Current time and date are displayed and adjusted in this menu. Time display format: hh:mm:ss. Date format: dd.mm.yyyy. — To enter the time and date manually. — The same time as in the mobile device will be automatically set.
  • Page 21 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Engineering menu Air flow Air flow rate, preset speed 1-5 and Boost mode are set in this section. Sensors This section displays the current status of all sensors: — outdoor air temperature. — supply air temperature. —...
  • Page 22 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de Factory settings In this section you can reset your settings to the factory settings. Communication with the unit may be lost after restoration. If necessary, reset your Wi-Fi connection. Alarms This section displays alarms and warnings. Alarms are highlighted in red, warnings are highlighted in black.

  • Page 23: Technical Maintenance

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance operations of the unit are required 3-4 times per year. Maintenance includes periodic dust removal from surfaces, cleaning or replacement of filters (if necessary) and dry cleaning of fans. Maintenance includes general cleaning of the unit and the following operations: 1.

  • Page 24: Troubleshooting

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de TROUBLESHOOTING PROBLEM POSSIBLE REASONS TROUBLESHOOTING The fan(s) do(es) not get Make sure that the unit is properly connected to the power No power supply. started. mains and make any corrections, if necessary. Extract filter clogging. Clean or replace the extract filter.

  • Page 25: Manufacturer's Warranty

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC.
  • Page 26 Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de...

  • Page 27: Certificate Of Acceptance

    Freshbox (E)/(E1)/(E2)-200 ErV WiFi www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Freshbox ____200 ERV WiFi Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 28 www.blaubergventilatoren.de B73-7EN-05...
