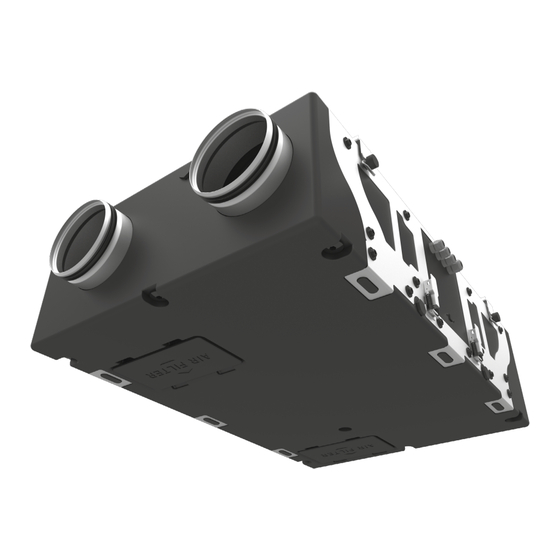

Air hAndling unit
KOMFORT EC D5B180
KOMFORT EC D5B180-E
KOMFORT EC D5 180
KOMFORT EC D5 180-E
KOMFORT D5 180
KOMFORT D5 180-E
EN
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KOMFORT EC D5B180 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BLAUBERG Ventilatoren KOMFORT EC D5B180

  • Page 1 Air hAndling unit KOMFORT EC D5B180 KOMFORT EC D5B180-E KOMFORT EC D5 180 KOMFORT EC D5 180-E KOMFORT D5 180 KOMFORT D5 180-E USER’S MANUAL...
  • Page 2: Table Of Contents

    KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Design and operating logic ..............................7 Mounting and set-up .................................. 9 Connection to power mains ..............................13 Technical maintenance ................................15 Storage and transportation regulations .......................... 17 Manufacturer’s warranty ................................18 Certificate of acceptance ................................
  • Page 3: Safety Requirements

    KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de SAFETY REQUIREMENTS • Please read the user’s manual carefully prior to installing and operating the unit. • All user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical, and technical norms and standards must be observed when installing and operating the unit.
  • Page 4 KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de • Disconnect the unit from • Do not allow children to power mains prior to any operate the unit. technical maintenance. • When the unit generates • Do not store any explosive or unusual sounds, odour, or highly flammable substances emits smoke, disconnect it in close proximity to the unit.
  • Page 5: Purpose

    KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air.
  • Page 6 KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for application with the ambient temperature ranging from +1 °C to +40 °C and relative humidity up to 80 %. In order to prevent condensation on the internal walls of the unit, it is necessary that the surface temperature of the casing is 2-3 °C above the dew point temperature of the transported air.
  • Page 7: Design And Operating Logic

    UNIT DESIGN 1 — supply fan, 2 — extract filter G4, 3 — heat exchanger, 4 — control unit, 5 —extract fan, 6 — bypass damper (for KOMFORT EC D5B180-E models), 7 — supply filter F7, 8 — supply filter G4, 9 — Setup Mode button (for KOMFORT (EC) D5(B)180-E S21 models), 10 — duct preheater connector (for KOMFORT (EC) D5(B)180-E S21 models), 11 —...
  • Page 8 KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de UNIT OPERATION MODES Heat recovery Warm extract air from the room flows into the unit and is cleaned in the extract filter. Then the air is moved through the heat exchanger and is exhausted outside with the extract fan. Cold fresh air from outside flows into the unit, where it is cleaned in the supply filter. Then the air flows through the heat exchanger and is directed to the room with the supply fan.
  • Page 9: Mounting And Set-Up

    KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de MOUNTING AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. FS2 HUMIDITY SENSOR INSTALLATION AND CONNECTION The FS2 humidity sensor is not included in the delivery and can be ordered separately. Install the humidity sensor into the mount on the inner side of the unit and connect the humidity sensor to the appropriate connector. UNIT MOUNTING To attain the best performance of the unit and to minimise turbulence-induced air pressure losses connect the straight air duct section to the spigots on both sides of the unit while mounting.
  • Page 10 KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de Expansion Fastener anchor Mounting bracket Fasteners for mounting are not included in the delivery set and should be ordered separately. While choosing fasteners consider the material of the mounting surface as well as the weigh of the unit, refer to the Technical Data section.
  • Page 11 KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de Exhaust Intake Supply Extract drain pipe Diagram 3. Wall vertical installation Extract Intake Exhaust Supply Ø19 Diagram 4. Wall horizontal installation CONDENSATE DRAINAGE The KOMFORT (EC) D5(B)180 heat recovery units require condensate drainage. The hole for the drain pipes is in the cover of the unit. Remove the service panel and remove the plugs from the holes.
  • Page 12 KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de Drain hole location in case of mounting according to the Diagram 1 Drain hole location in case of mounting according to the Diagram 2 Then connect the drain pipe to the sewage system using the Siphon-Kit SFK 20x32 (available upon separate order). The pipes are required to have a minimum slope of 3°.
  • Page 13: Connection To Power Mains

    KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.
  • Page 14 KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de External wiring diagram for units KOMFORT (EC) D5 180(-E) S2 Speed controller +10V 230 V/50-60 Hz Name Wire** Speed controller 3 x 0.25 mm +10V External wiring diagram for units External wiring diagram for units KOMFORT (EC) D5 180(-E) S3/S4 KOMFORT (EC) D5 180(-E) S40 T C1 C1 C2 C2 SL T C1 C1 C2 C2 SL...
  • Page 15: Technical Maintenance

    KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS. FOLLOW THE SAFETY REGULATIONS WHEN CARRYING OUT MAINTENANCE. Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1.
  • Page 16 KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de 3. Fan maintenance (once per year). Even in case of regular maintenance of the filters, some dust may accumulate inside the fans and reduce the fan performance and supply air flow. Clean the fans with a soft cloth, brush, or using compressed air. Do not use water, aggressive solvents or sharp objects as they may damage the impeller.
  • Page 17: Storage And Transportation Regulations

    KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range from +5 ˚C up to +40 ˚C and relative humidity up to 70 %. •...
  • Page 18: Manufacturer's Warranty

    KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
  • Page 19: Certificate Of Acceptance

    KOMFOrt (EC) d5(B)180(-E) www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model KOMFORT____D5___180___ Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 20 www.blaubergventilatoren.de B170EN-06...

This manual is also suitable for:

Komfort ec d5b180-eKomfort ec d5 180Komfort ec d5 180-eKomfort d5 180Komfort d5 180-e
