Exsys EX-1240HMVS Manual

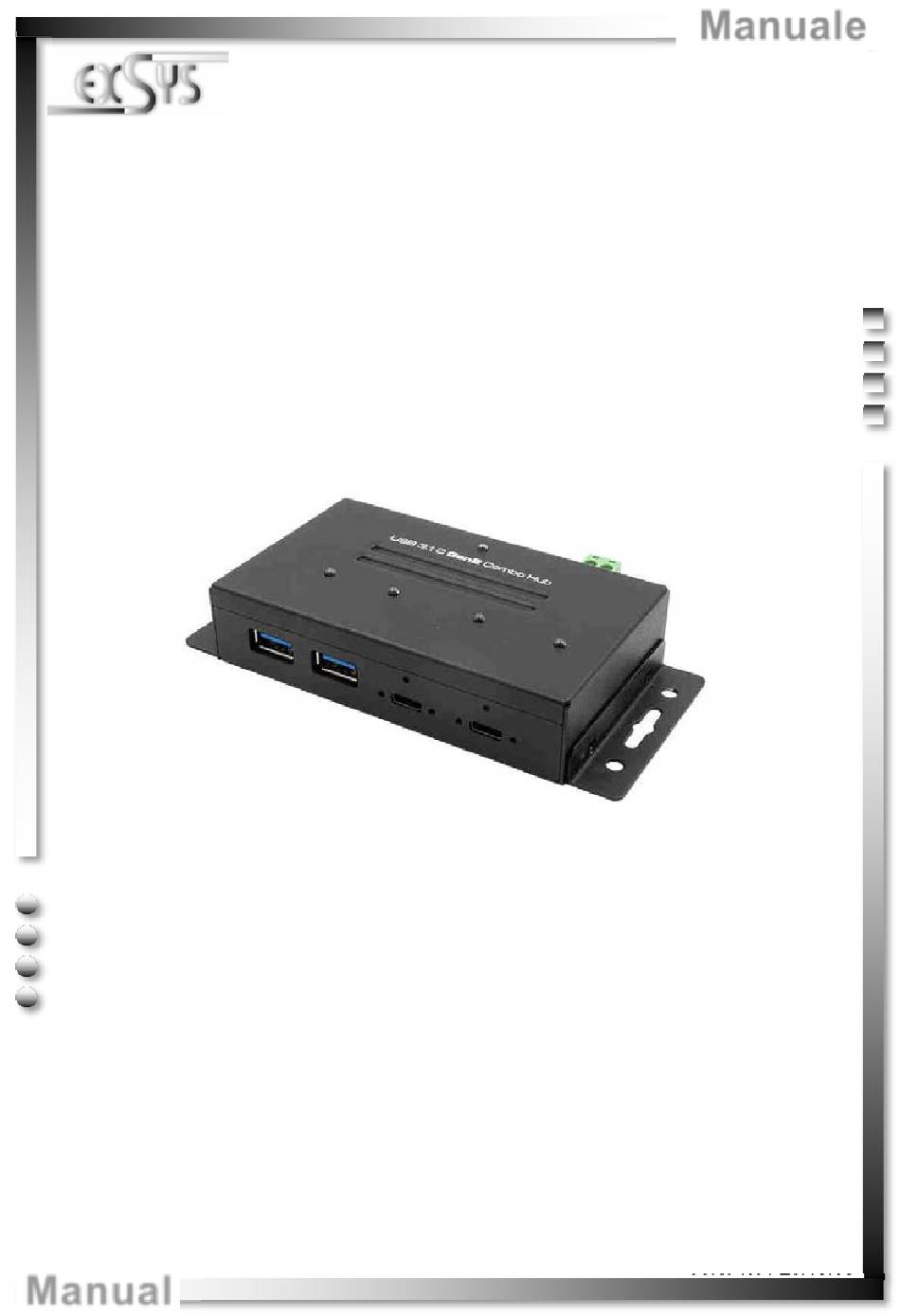

4 port usb 3.1 gen2 metal hub with 15kv esd surge protection, screw lock
Hide thumbs Also See for EX-1240HMVS:

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Manuale
EX-1240HMVS
HUB USB 3.1 (Gen2) a 4 porte con
protezione da sovratensione ESD da
15 KV in metallo, chiusura a vite
4 Port USB 3.1 (Gen2) Metal HUB with
15KV ESD Surge Protection,
screw lock
Germania:
EXSYSVertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de
Svizzera:
EXSYSVertriebs GmbH
Dübendorfstrasse17
8602Wangen
www.exsys.ch
Italia
EXSYS TALIA Srl
Vaia Belvedere, 45/B
22100 Como (CO)
Vers. 1.0 / 26.10.18
www.exsys.it
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the EX-1240HMVS and is the answer not in the manual?

Questions and answers

Related Manuals for Exsys EX-1240HMVS

Summary of Contents for Exsys EX-1240HMVS

  • Page 1 4 Port USB 3.1 (Gen2) Metal HUB with 15KV ESD Surge Protection, screw lock Germania: EXSYSVertriebs GmbH Industriestraße 8 61449 Steinbach www.exsys.de Svizzera: EXSYSVertriebs GmbH Dübendorfstrasse17 8602Wangen www.exsys.ch Italia EXSYS TALIA Srl Vaia Belvedere, 45/B 22100 Como (CO) Vers. 1.0 / 26.10.18 www.exsys.it Manual...
  • Page 2 Struttura & Attacchi Struttura Attacchi Installazione Hardware Installazione Driver Pulizia Dati Tecnici Index Description Extent of Delivery Layout & Connections 9-10 Layout Connections 9-10 Hardware Installation Driver Installation Cleaning Technical Information © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 3: Contenuto Confezione

    Italiano 1. Descrizione L'EX-1240HMVS è un hub USB 3.1 (Gen2) plug & play ad alta velocità per 4 dispositivi USB. L'EX-1240HMVS fornisce 2 porte USB-A e 2 porte USB Type-C per dispositivi e 1 porta uplink USB Type-C per PC in struttura metallica. Supporta tutte le connessioni USB da 1.1 a 3.1.
  • Page 4 Alimentazione inclusa nella Upstream Type-C esterna fornitura opzionale Alimentatore 3.2 Attacchi T-Block +5V : ATTENZIONE Non collegare mai l'alimentazione a terra (GND), questo potrebbe distruggere il tuo hardware!!! GND (Ground) © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 5 Non inserire mai la spina al contrario né forzarla. USB 3.1 (Gen2) Type-C: Avvertenza! Grazie alla doppia assegnazione dei pin, la spina USB Type-C può essere inserita nella presa su entrambi i lati. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 6: Installazione Hardware

    Si prega di osservare le seguenti istruzioni per l’installazione. Poiché ci sono molte differenze tra i PC, possiamo fornirti solamente delle istruzioni in generale per l'installazione del EX-1240HMVS. Se qualcosa non vi è chiaro, fare riferimento alle istruzioni del manuale per l'uso del proprio computer.

  • Page 7: Dati Tecnici

    Da 0° a 55° Celsius Temperatura d’esercizio: Dal -20° al 85° Celsius Temp. di Conservazione: Dal 5% al 95% Umidita Relativa: Alimentazione: +5 Volt 135,00 x 63,00 x 24,00 mm Dimensione: 650g Peso: © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 8: Extent Of Delivery

    EX-1240HMVS 1. Description The EX-1240HMVS is a plug & play high-speed USB 3.1 (Gen2) metal hub for 4 USB devices. The EX-1240HMVS provides 2 USB-A Ports and 2 USB-C Ports for devices and 1 USB-C uplink Port for PC. It supports all USB connections from 1.1 to 3.1. Via a external power supply it is possible to provide a maximum of 900mA on each USB port.
  • Page 9 1x USB 3.1 (Gen2) optional external included external Upstream C-Port Power Supply Power Supply 3.2 Connections +5V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Page 10 Never plug in with force or in wrong direction. USB 3.1 (Gen2) C-Port: Note! By dual assignment of the pins, the USB Type-C plug can be plugged into the port on both sides. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...

  • Page 11: Hardware Installation

    4. Hardware Installation Because there are large differences between PC’s, we can give you only a general in- stallation guide for the EX-1240HMVS. Please refer your computer’s reference manual whenever in doubt. 1. Connect the USB 3.1(Gen2) cable with the USB 3.0/3.1(Gen2) Upstream C-Port at the EX-1240HMVS.

  • Page 12: Technical Information

    All Operating Systems Operating Temperature: 32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit 5% to 95% Rel. Humidity: +5 Volt Power: 135,00 x 63,00 x 24,00 mm Size: Weight: 650g © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
