Bellman & Symfon Visit BE1470 User Manual

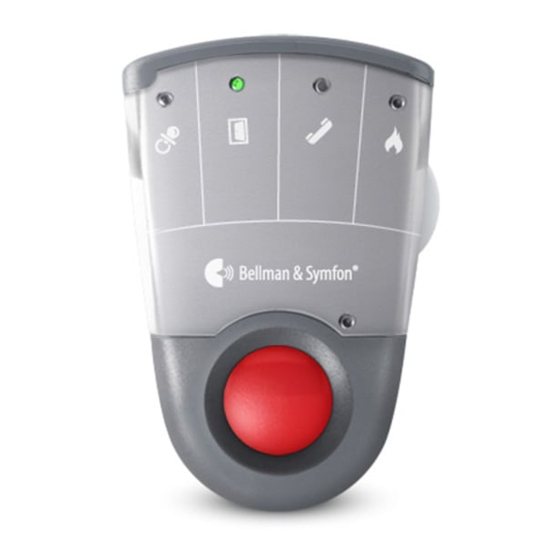

Pager receiver
Hide thumbs Also See for Visit BE1470:
1
2
3
4

Advertisement

Quick Links

Download this manual

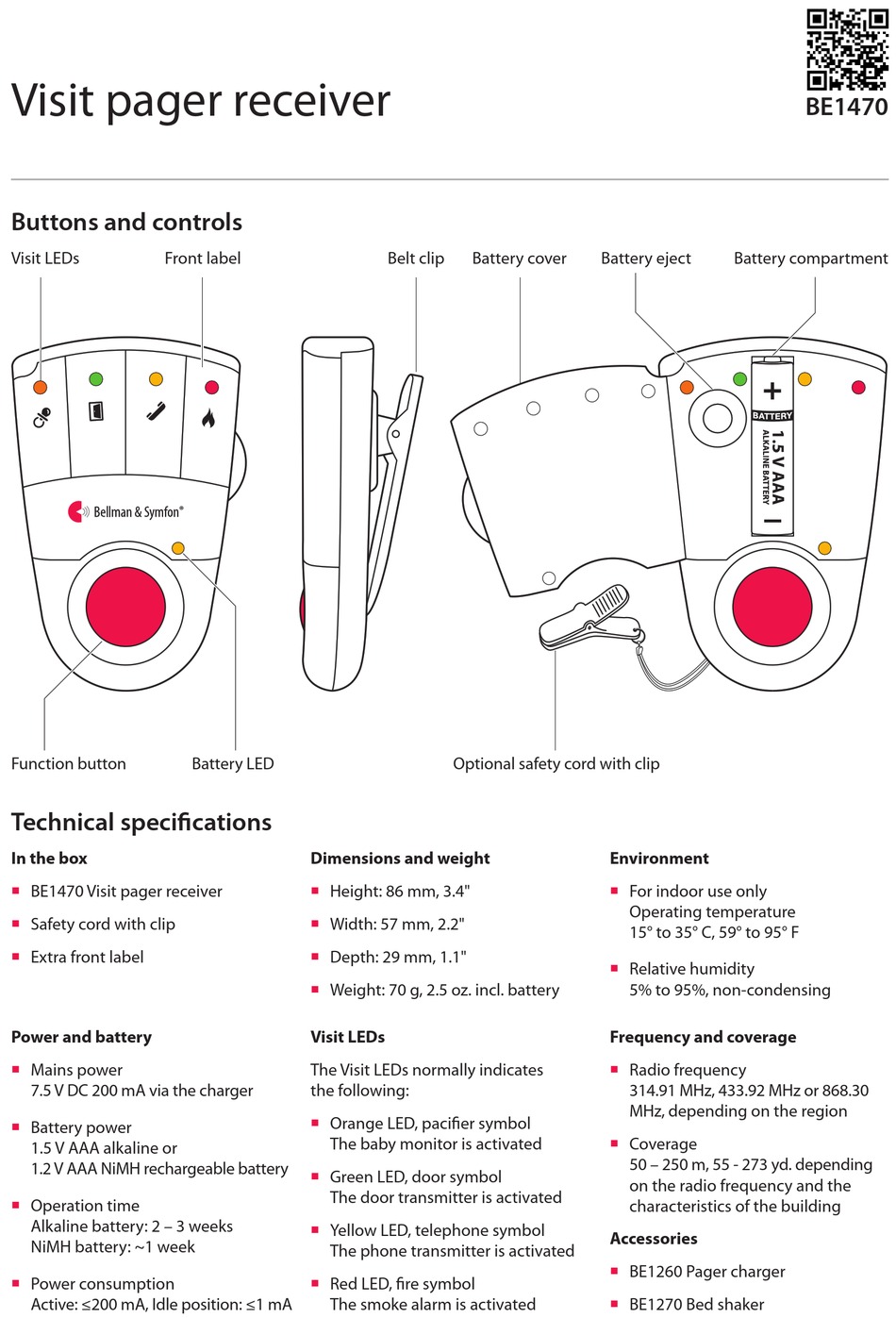

Visit pager receiver

Buttons and controls

Visit LEDs
Front label
Function button

Technical specifications

In the box
BE1470 Visit pager receiver
Safety cord with clip
Extra front label
Power and battery
Mains power
7.5 V DC 200 mA via the charger
Battery power
1.5 V AAA alkaline or
1.2 V AAA NiMH rechargeable battery
Operation time
Alkaline battery: 2 – 3 weeks
NiMH battery: ~1 week
Power consumption
Active: ≤200 mA, Idle position: ≤1 mA
Battery LED
Dimensions and weight
Height: 86 mm, 3.4"
Width: 57 mm, 2.2"
Depth: 29 mm, 1.1"
Weight: 70 g, 2.5 oz. incl. battery
Visit LEDs
The Visit LEDs normally indicates
the following:
Orange LED, pacifier symbol
The baby monitor is activated
Green LED, door symbol
The door transmitter is activated
Yellow LED, telephone symbol
The phone transmitter is activated
Red LED, fire symbol
The smoke alarm is activated
Belt clip
Battery cover
Optional safety cord with clip
Battery eject
Battery compartment
Environment
For indoor use only
Operating temperature
15° to 35° C, 59° to 95° F
Relative humidity
5% to 95%, non-condensing
Frequency and coverage
Radio frequency
314.91 MHz, 433.92 MHz or 868.30
MHz, depending on the region
Coverage
50 – 250 m, 55 - 273 yd. depending
on the radio frequency and the
characteristics of the building
Accessories
BE1260 Pager charger
BE1270 Bed shaker
BE1470
