Flush-Mounted Installation - PEAKnx Controlmini Getting Started

Preparation
Avoid damage to the panel!
The panel may only be installed in landscape format and parallel to the wall to ensure
■
ventilation of the computer in the panel by convection.
Preparation
Note: We recommend hedging the panel, since in rare cases the panel must be taken


completely from the power supply.
Necessary accessories for the installation of the panel:
Glass cover (PNX12-10002)
■
Flush-mounted box (PNX12-10004) or surface-mounted frame (PNX12-10005)
■
Power supply unit 24 V DC for DIN rail (PNX12-10010)
■
or
Power supply unit 24 V DC for the flush-mounted box (PNX12-10011)
■

Flush-mounted installation

Tip: Choose the installation height of the panel according to the height of the primary user so

that the top edge of the panel is at his/her eye level. A slightly lower screen prevents fatigue of
the arms during operation.

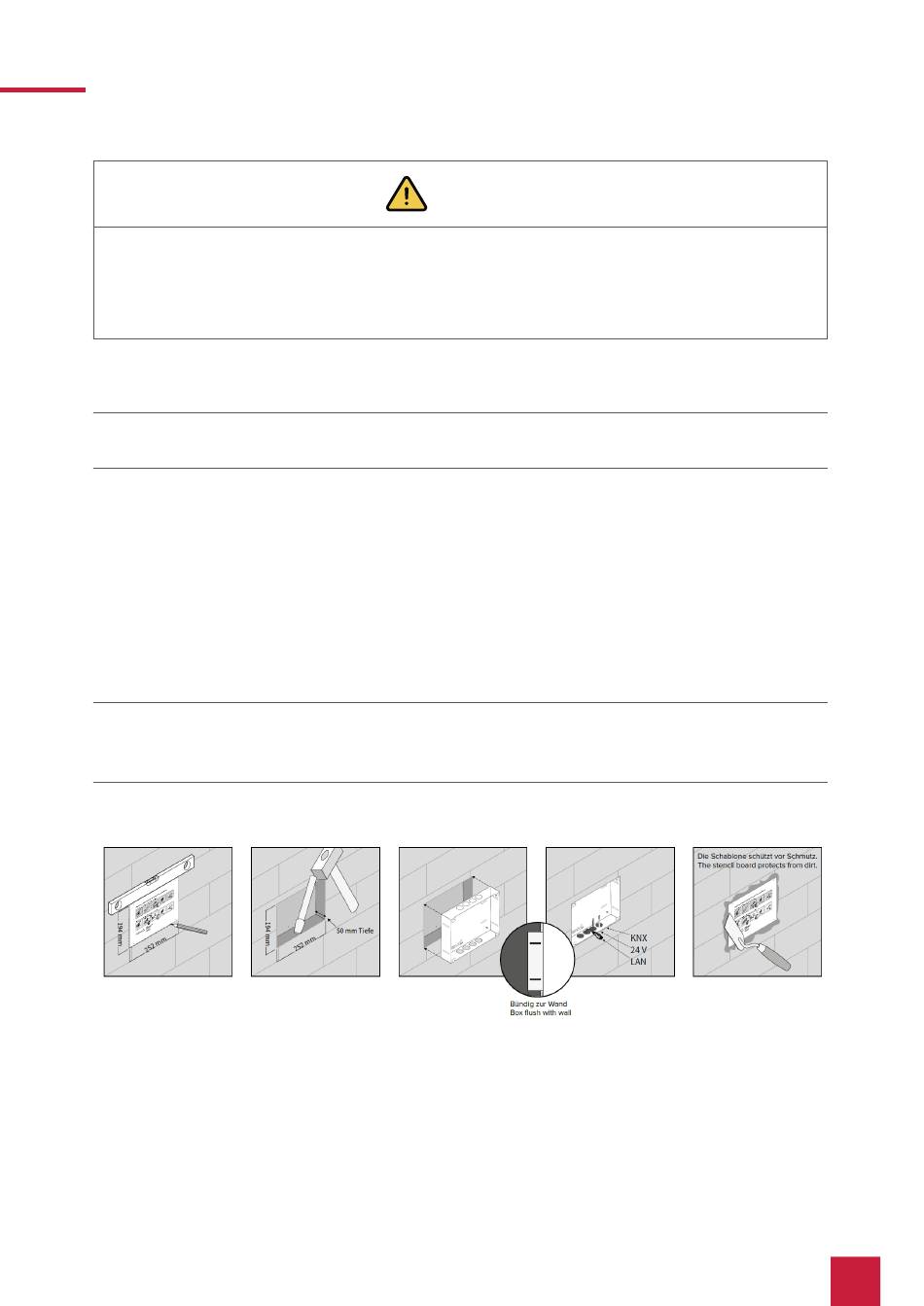

Installation in brickwork
Make a recess of H x W x D: 194 x 252 x 50 mm in the wall. Therefore, use the template
■
provided. The flush-mounted box must later be flush with the wall.
Depending on the cable position, press the circular plates at the top or bottom out of the box
■
and insert the supplied self-sealing grommets to prevent damage to the cable.
When inserting the flush-mounted box, route the supply and communication cables (Ethernet,
■
