4RF Aprisa SRq Quick Start Manual

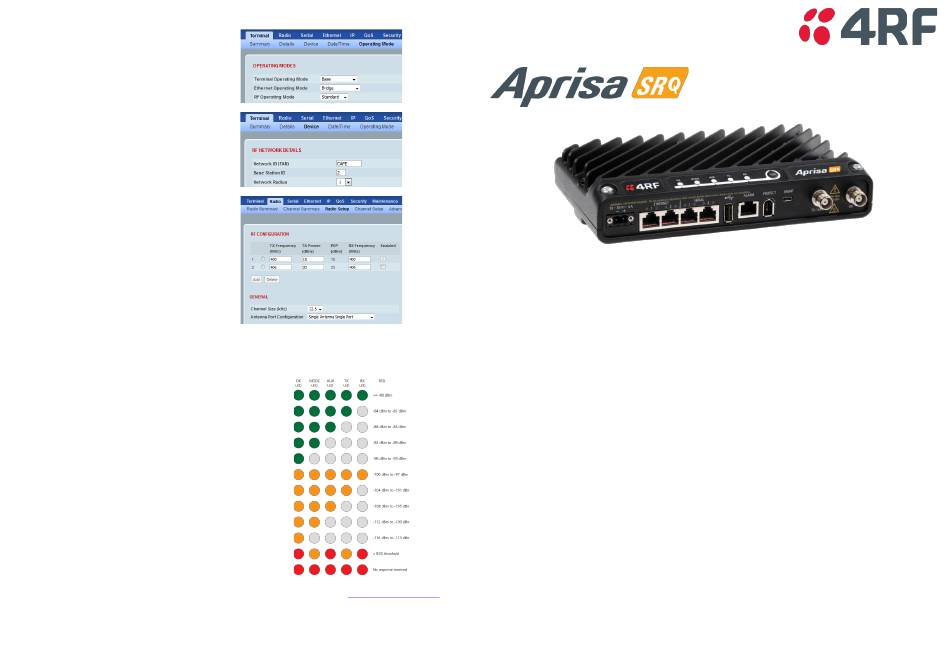

5. Set up the Aprisa SRq radio
The Aprisa SRq has a factory default Terminal Operating Mode
of Remote Station.
One radio in the Aprisa SRq network must be setup as a Base
Station.
The other radios in the Aprisa SRq network are setup as Remote
Stations or Repeater Stations.
Set the Ethernet Operating Mode required.
Set the unique radio Network ID to be the same in your entire
network including the Base Station ID.
Set the Aprisa SRq TX Frequency, RX Frequency, TX Power and
Channel Size to comply with your site license.
Also, set the Antenna Port Configuration, Modem Mode e.g.
ETSI / FCC, the fixed TX Modulation Type (base station radio)
and if ACM is enabled.
You can now configure the remaining terminal and network parameters and settings. Please refer to the Aprisa SRq User Manual for detailed
instructions.
6. Monitor the Aprisa SRq radio signal strength
When the network is installed, the radio signal strength can be
monitored on remote stations by setting the radio to Test Mode.
To enter Test Mode, press and hold the TEST button on the radio LED
panel until all the LEDs flash green (about 3 - 5 seconds).
In Test Mode, the LED Display panel presents a real time visual
display of the RSSI. This can be used to adjust the antenna for
optimum signal strength.
Note: The response time is variable and can be up to 5 seconds.
To exit Test Mode, press and hold the TEST button until all the LEDs
flash red (about 3 - 5seconds).
The OK, MODE and AUX LEDs will be solid green and the TX and RX
LEDs will be solid or flash green if the network is operating correctly.
For more information, please refer to the Aprisa SR+ User Manual available from the 4RF website
required).
Aprisa SRq Quick Start Guide 1.3.0 © 2021 4RF Limited. All rights reserved. This document is protected by copyright belonging to 4RF Limited and may
not be reproduced or republished in whole or part in any form without the prior written permission of 4RF Limited. While every precaution has been
taken in the preparation of this literature, 4RF Limited assumes no liability or errors and omissions, or from any damages resulting from use of this
information. The contents and any product specifications within it are subject to revision due to ongoing product improvements and may change
without notice. Aprisa and the 4RF logo are trademarks of 4RF Limited. All other marks are the property of their respective owners.
Quick Start Guide

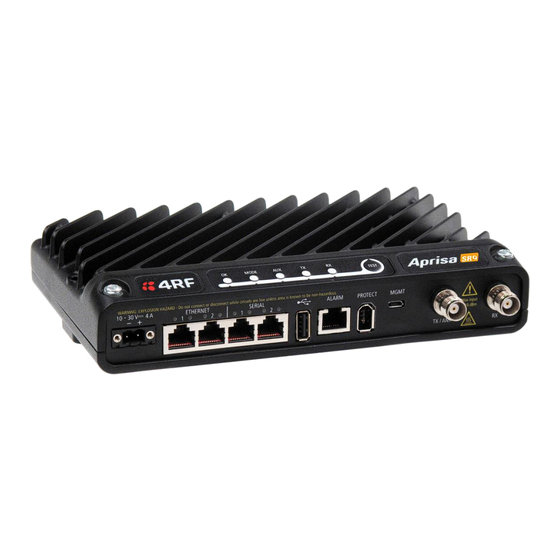

Aprisa SRq Radio
Contents
Follow these steps to operate your Aprisa SRq radio:
https://www.4rf.com/secure (login
1. Check the box contents
2. Install the Aprisa SRq radio and connect the protection earth
3. Connect the Antenna and apply power to the Aprisa SRq radio
4. Connect to the Aprisa SRq radio
5. Set up the Aprisa SRq radio
6. Monitor the Aprisa SRq radio signal strength
