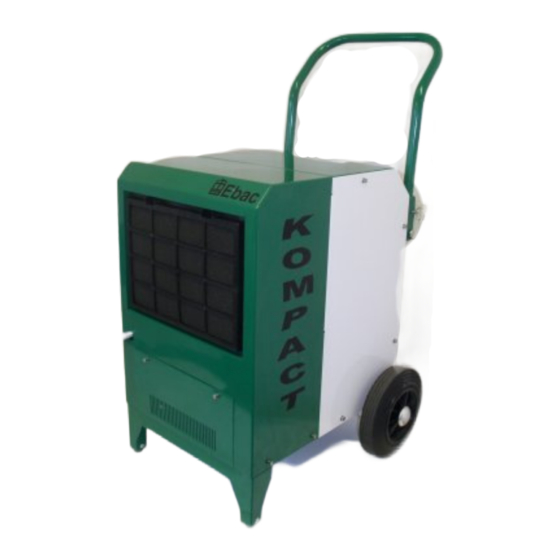

- Page 1 Drawing : - TPC305 Issue : - 7 Date : - 24/11/16 KOMPACT INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL www.eipl.co.uk Page 1 of 12...
- Page 2 Drawing : - TPC305 Issue : - 7 Date : - 24/11/16 INTRODUCTION Designed for a wide range of applications, the Kompact is a rugged, industrial unit, which utilizes an energy-efficient compressor and a compact portable design to provide easy efficient drying. The Kompact has a number of special features: •...
-
Page 3: Specifications
Drawing : - TPC305 Issue : - 7 Date : - 24/11/16 SPECIFICATIONS : 10240KP-GB ODEL : 615 mm EIGHT : 508 mm IDTH : 488 mm EPTH : 37 kg EIGHT : 152 M IRFLOW : 230V/ 50Hz/ 1 ph OWER UPPLY Powder-coated... -
Page 4: Operation
Drawing : - TPC305 Issue : - 7 Date : - 24/11/16 OPERATION The following procedures should be followed to test the Kompact for correct operation: After unpacking, examine all external features to confirm damage- free shipment. Report all defects and damage at once. Connect the power cable to a grounded 13 Amp electrical outlet. -
Page 5: Routine Service
Drawing : - TPC305 Issue : - 7 Date : - 24/11/16 ROUTINE SERVICE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE SERVICE. THE SERVICING AND REPAIR OF THIS UNIT SHOULD ONLY BE CARRIED OUT BY A SUITABLY QUALIFIED PERSON. - Page 6 Drawing : - TPC305 Issue : - 7 Date : - 24/11/16 REPAIRS Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.
-
Page 7: Troubleshooting
Drawing : - TPC305 Issue : - 7 Date : - 24/11/16 TROUBLESHOOTING YMPTOM AUSE EMEDY 1. Check the power from 1. No power to unit power supply panel. Unit inoperative 2. Mains cable damaged. 2. Contact the Factory Service Center 1. - Page 8 Drawing : - TPC305 Issue : - 7 Date : - 24/11/16 KOMPACT SPARE PARTS LIST ESCRIPTION UMBER UANTITY UMBER Filter 1019712 Timer 1601900 Evaporator Coil 2026074 Condenser Coil 2026014 Drain Tray 2131107 Capillary Tube 3014251 48” Solenoid Valve 3020814 Filter Dryer 3020901 Compressor...
- Page 9 Drawing : - TPC305 Issue : - 7 Date : - 24/11/16 WARNINGS This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved.
- Page 10 Drawing : - TPC305 Issue : - 7 Date : - 24/11/16 Page 10 of 12...
- Page 11 Drawing : - TPC305 Issue : - 7 Date : - 24/11/16 Page 11 of 12...
- Page 12 DL14 9AD Germany Tel: +44 (0) 1388 664400 Tel: +01 757 873 6800 Tel: +49 3043 557241 Fax: +44 (0) 1388 662590 Fax: +01 757 873 3632 Fax: +49 3043 557240 www.eipl.co.uk www.ebacusa.com www.eip-ltd.de sales@eipl.co.uk sales@ebacusa.com sales@eip-ltd.de Page 12 of 12...
