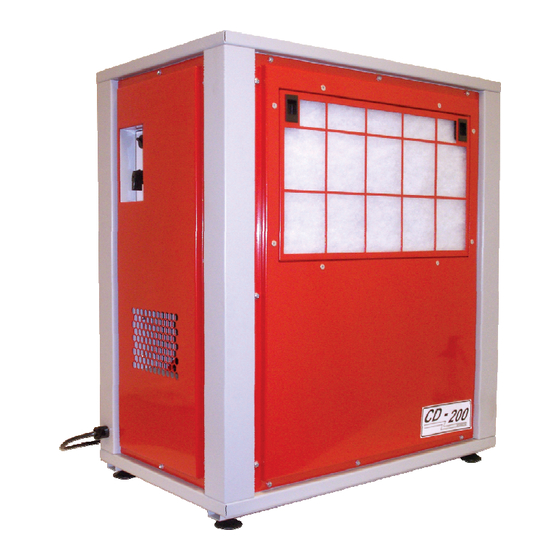

EBAC MODEL CD200
EBAC MODEL
EBAC MODEL
EBAC MODEL
INDUSTRIAL DEHUMIDIFIER
INDUSTRIAL DEHUMIDIF
INDUSTRIAL DEHUMIDIF
INDUSTRIAL DEHUMIDIF
OWNER'S MANUAL
OWNER'S MANUAL
OWNER'S MANUAL
OWNER'S MANUAL
CD200 OWNERS MANUAL
Drawing No. :- TPC577
Issue
Date
CD200
CD200
CD200
IER
IER
IER
:- 1
:- 25/04/22

Advertisement

loading
Need help?

Need help?

Do you have a question about the EBAC CD200 and is the answer not in the manual?

Questions and answers

Related Manuals for EIP EBAC CD200

Summary of Contents for EIP EBAC CD200

  • Page 1 Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 EBAC MODEL EBAC MODEL CD200 CD200 EBAC MODEL EBAC MODEL CD200 CD200 INDUSTRIAL DEHUMIDIF INDUSTRIAL DEHUMIDIF INDUSTRIAL DEHUMIDIF INDUSTRIAL DEHUMIDIFIER OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL OWNER’S MANUAL CD200 OWNERS MANUAL...

  • Page 2: Package Contents

    Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 UNIT PACKAGE CONTENTS Item Description Quantity 11182GR-US Dehumidifier 3086144 Quick release hose coupling 3944110 PVC Tube – 3/8” I/D TPC577 Manual CD200 OWNERS MANUAL...
  • Page 3 Do not discard the packing, it will be useful when transporting the dehumidifier unit in the future. INTRODUCTION The Ebac CD200 industrial dehumidifier removes moisture from the air through the refrigeration process. The Ebac CD200 is basically comprised of:...

  • Page 4: Specifications

    Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 SPECIFICATIONS 11282GR-US ODEL 32.75” (832mm) EIGHT 29.5” (745mm) IDTH 17.5” (445mm) EPTH 176 lbs EIGHT Low 585 CFM IRFLOW High 664 CFM 2250 W POWER 220V/60Hz/1ph OWER UPPLY Powder-coated INISH Epoxy R407c EFRIGERANT...

  • Page 5: Installation

    Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 INSTALLATION POSITIONING: Position the dehumidifier unit in the center of the room to be conditioned if at all possible. However if a damp patch is particularly apparent the outlet grille should be pointed towards it if possible.

  • Page 6: Operation

    Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 OPERATION The following procedures should be followed to test the CD200 for correct operation: 1) After unpacking, examine all external features to confirm damage-free shipment. Report all defects and damage at once. Connect the power cable to a grounded power source.
  • Page 7 Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 Light Functions: The unit has four LED indicators, located on the side of the unit. The following lists the functions of these lights: 1 - ON / OFF Green solid – Indicates power ON 2 –...

  • Page 8: Routine Service

    Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 ROUTINE SERVICE WARNING: ENSURE THAT THE POWER CORD TO THE MACHINE HAS BEEN DISCONNECTED BEFORE CARRYING OUT ROUTINE SERVICE. THE SERVICING AND REPAIR OF THIS UNIT SHOULD ONLY BE CARRIED OUT BY A SUITABLY QUALIFIED PERSON To ensure continued full efficiency of the dehumidifier, maintenance procedures should be performed as follows:...
  • Page 9 Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 REPAIRS 1) Should an electrical component fail, consult the Factory Service Center to obtain the proper replacement part. 2) If refrigerant gas is lost from the machine, it will be necessary to use a refrigeration technician to correct the fault.

  • Page 10: Troubleshooting

    Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 TROUBLESHOOTING EMEDY YMPTOM AUSE 1. Check the power from power Unit inoperative 1. No power to unit supply panel 1. Tighten fan 2. Replace the fan motor 1. Loose fan on shaft 3.
  • Page 11 Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 CD200 SPARE PARTS LIST Description Part Number Product Part Number 11182GR-US PCB Timer 1619522 Controls Display Timer 1619524 Humidity Sensor PCB 1619526 PCB Connecting Cable 2013753 Filter 2018233 Keypad Label 2018241 Condenser Coil 2028226...
  • Page 12 Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 CD200 OWNERS MANUAL...
  • Page 13 Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 CD200 OWNERS MANUAL...

  • Page 14: Limited Warranty

    Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 LIMITED WARRANTY Our products carry a one-year unconditional warranty against any defects in workmanship or material. This warranty will cover all parts and labor required to repair your Ebac product. This warranty is invalid if the unit has been abused, damaged, whether intentional or accidental, or if any modifications have been made to the unit.
  • Page 15 Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 WARNINGS This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the application in a safe way and understand the hazards involved.
  • Page 16 Drawing No. :- TPC577 Issue :- 1 Date :- 25/04/22 UK Head Office American Sales Office Ebac Industrial Products Ltd Ebac Industrial Products Inc St Helens Trading Estate 700 Thimble Shoals Blvd. Bishop Auckland Suite 109, Newport News County Durham Virginia, 23606-2575 DL14 9AD Tel: +44 (0) 1388 664400...
