12. Installing the LED Luminaire Module

WARNING: Before starting installation, disconnect the power by turning
off the circuit breaker or removing the fuse at fuse box. Turning power off
using the fan switch is not sufficient to prevent electric shock.
NOTE: If you do not plan to install the luminaire module with
your fan at this time, skip to step 5.
1. Remove 1 of the 3 screws from the outer perimeter of the
adapter plate and keep it for future use. Loosen the other
2 screws (do not remove).
2. Raise and hold the LED luminaire module close to the mounting
plate and proceed to secure the wire connections. Connect the
white wire connectors from the luminaire module to the white
wire of the fan. Follow the same procedure with the black wire
connectors (FIG. 19).
3. Tuck connections neatly into mounting plate, Place the luminaire
module key holes over the 2 screws previously loosened from the
mounting ring, turn luminaire module until it locks in place at the
narrow section of the key holes. Secure by tightening the 2 screws
previously loosened and the one previously removed (FIG. 19).
4. Raise acrylic shade up against the luminaire module, and secure it
to fan by turning glass clockwise until snug. Do not over-tighten.
18

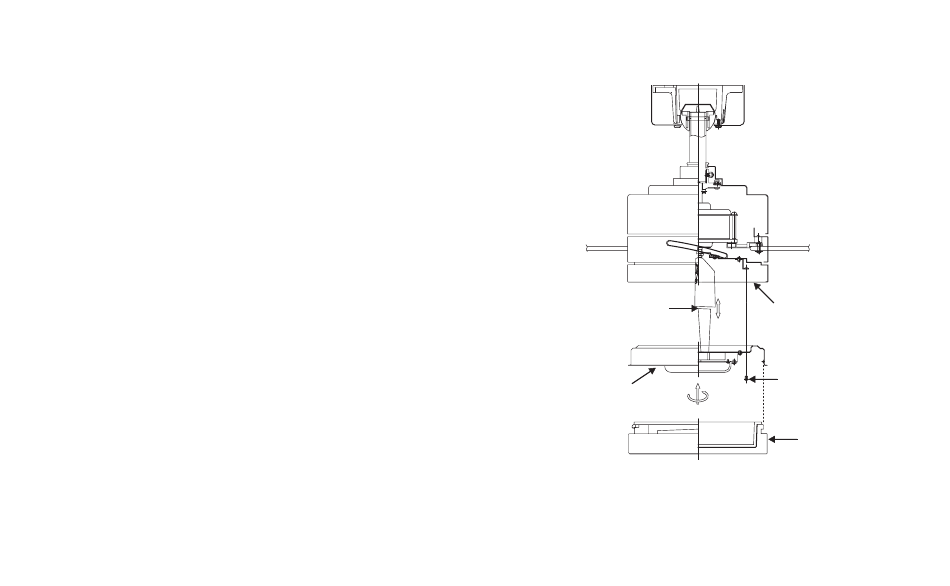

Connection Plugs
LED Luminaire Module
FIG. 19
Adapter
Plate
Screws
Acrylic
Shade
