8. Installing the Wall Control (cont.)
1.
Carefully tuck the wire connections inside the junction box.
Secure the wall control with the two wall control mounting screws
provided (FIG. 15).
2.
Attach the wall mounting plate over the wall control and secure
with the two wall mounting plate screws provided.
3.
Fasten the wall plate to the wall mounting plate.
NOTE: A maximum of 2 fans can operate on a circuit through the
wall control.
NOTE: A maximum of 12 fans can operate on a circuit through an on/
off switch or breaker when utilizing the app for the fan control (with-
out the wall control in the circuit).
FR - W 1 8 03

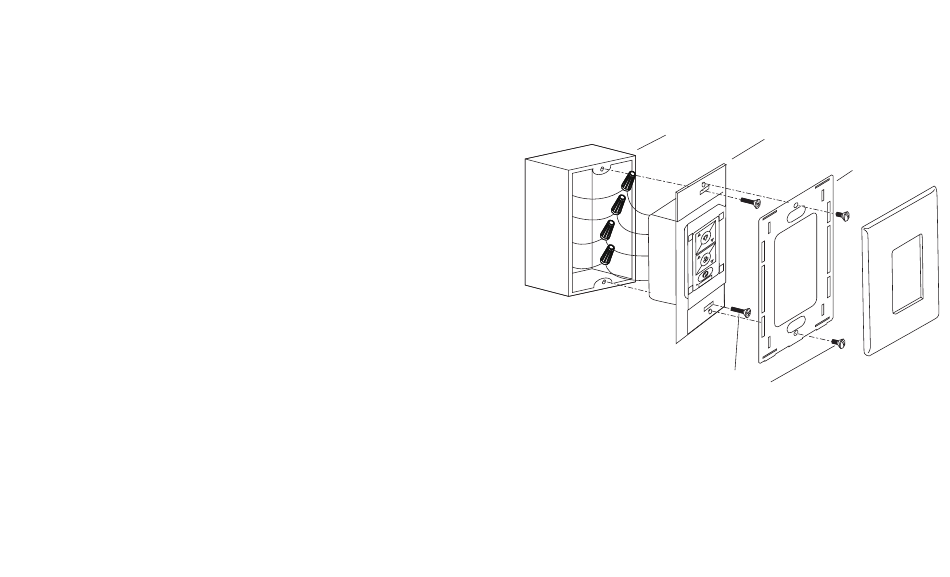

Wall Outlet Box
Wall Control
Mounting Screws
FIG. 15
Wall Mounting Plate
Wall Plate
15
