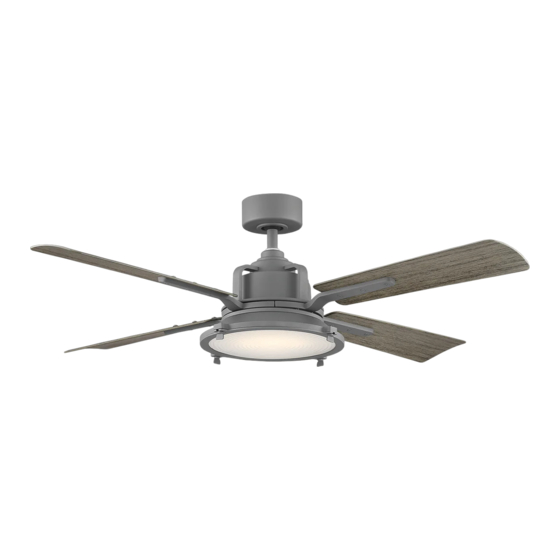

- Page 1 Nautilus Installation Instructions works with the Google Assistant...
- Page 2 Please read and save these instructions before installation DO NOT RETURN TO STORE F R - W 1 8 1 8 Nautilus Instructions...
- Page 3 For fast service have the following information below when you call: Model Name and Number 2. Part Number and Part Description 3. Date Of Purchase and Purchase Location 1-866-810-6615 option 1 MON-FRI 8AM-8PM EST Email: fansupport@modernforms.com FR- W 1 81 8 Nautilus Instructions 3...
- Page 4 All set screws must be checked and re-tightened where necessary before installation. F R - W 1 8 1 8 Nautilus Instructions...
- Page 5 Modern Forms. Substitution of parts or accessories not designated for use with this product by Modern Forms could result in personal injury or property damage and will void the warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.
- Page 6 Dims light to 1% | ON/OFF 6 fan speeds F-RCBT-WT White Accessories: personalize your experience Bluetooth Wall Control Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-WCBT-WT White F R - W 1 8 1 8 Nautilus Instructions...
-
Page 7: Table Of Contents
6. Installing the Optional Wall Control 7. Finishing the Installation 8. Installing the Luminaire Module 9. Controlling the Fan 10. Factory Reset 11. Breeze Mode 12. Application 13. Accessories 14. Troubleshooting 28-30 Tools Required FR- W 1 81 8 Nautilus Instructions 7... - Page 8 Spring washer (1) Before discarding packaging materials be certain all parts have been removed. Place the parts from the hardware bag into a small container to keep them from being lost. F R - W 1 8 1 8 Nautilus Instructions...
- Page 9 Hanging Weight: 17 lbs IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place. FR- W 1 81 8 Nautilus Instructions 9...
-
Page 10: Mounting Options
45° (Fig. 1C). NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling (Fig. 1C). F R - W 1 8 1 8 Nautilus Instructions... - Page 11 Support Brace 2. Outer Box 3. Joist Outer Box Support Ceiling Max 30° Angle Support Brace 2. Mounting Bracket 3. Recess Outlet Box Outlet Box FR- W 1 81 8 Nautilus Instructions 11...
-
Page 12: Installing The Mounting Bracket
3. Attaching the Fan Blade Attach the blade to blade arm using the screws from washers as shown in (Fig. 3). 2. Fasten blade assembly to motor using screws supplied (Fig.3). F R - W 1 8 1 8 Nautilus Instructions... - Page 13 3. 120V Wires Mounting Bracket 4. cUL Listed 2. Screw Electrical Box 5. Mounting screws FR- W 1 81 8 Nautilus Instructions 13...
-
Page 14: Hanging The Fan
A Safety cable is required for all installations in Canada. Safety cable is required for ceiling fan and light combinations over 35 lbs. in both flush and downrod models in the United States. F R - W 1 8 1 8 Nautilus Instructions... - Page 15 FR- W 1 81 8 Nautilus Instructions 15...
-
Page 16: Making The Electrical Connections
Connect the black (hot) wire from the ceiling to the black wire marked “AC in L” from the receiver. 8. Connect the white (neutral) wire from the ceiling to the white wire marked “AC in N” from the receiver. F R - W 1 8 1 8 Nautilus Instructions... - Page 17 Follow the steps above to connect the fan to your household wiring. Use the plastic wire nuts with your fan. Secure the plastic wire nuts with electrical tape. Make sure there are no loose strands or connections. FR- W 1 81 8 Nautilus Instructions 17...
-
Page 18: Installing The Optional Wall Control
Fasten the wall plate to the wall mounting plate (Fig. 6A). to Fan House Wires Wall Switch Wires (Hot) (Hot In) (Neutral) (Neutral) (Copper/Ground) (Ground) Fan Switch leg (Hot out to Fan) From Breaker * Home Wiring may vary F R - W 1 8 1 8 Nautilus Instructions... - Page 19 Individually pair each of the wall controls with the fan receiver using the pairing instruction. See page 23. If Applicable Wallcontroller 1 Wallcontroller 2 Wallcontroller 3 Wall Control 3 Wall Control 1 Wall Control 2 Line/Hot Green (Green or Bare) Neutral/White FR- W181 8 Nautilus Instructions 19...
-
Page 20: Finishing The Installation
LED module and blue from fan to black from LED module (Fig. 8). 4. Secure the luminaire module with the 3 screws to the adapter plate (Fig. 8). 5. Install glass shade without over-tightening (Fig. 8A). F R - W 1 8 1 8 Nautilus Instructions... - Page 21 FR- W 1 81 8 Nautilus Instructions 21...
-
Page 22: Controlling The Fan
Synchronizing Control Across Multiple Fans If you are controlling multiple fans with one controller, fans/lights may be synced by referring to Fig. 9B and instructions on the next page. F R - W 1 8 1 8 Nautilus Instructions... - Page 23 All fans will be set to summer mode (CCW rotation). This will bring all fans controlled by the remote into sync. FR- W 1 81 8 Nautilus Instructions 23...
-
Page 24: Factory Reset
In addition to the included remote control, you can control your fan with a wall control (sold separately) or through the Modern Forms app. To use the Modern Forms app, download it for free from the App Store or Google Play. - Page 25 Press and hold buttons for 10 seconds until the receiver beeps Scan and follow prompts for multilingual instruction options and Smart Fan FAQs: Spanish For detailed Instructions and Smart Home Device Integration French FR- W 1 81 8 Nautilus Instructions 25...
-
Page 26: Accessories
Bluetooth Wall Control Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-WCBT-WT White Bluetooth Remote Control Dims light to 1% | ON/OFF 6 fan speeds F-RCBT-WT White F R - W 1 8 1 8 Nautilus Instructions... - Page 27 Downrod XF-12 - 12” Downrod | XF-18 - 18” Downrod XF-24 - 24” Downrod | XF-36 - 36” Downrod XF-48 - 48” Downrod | XF-60 - 60” Downrod XF-72 - 72” Downrod FR- W 1 81 8 Nautilus Instructions 27...
-
Page 28: Troubleshooting
5. Make sure the gaps between the blades are evenly distributed or make sure you are using an approved cUL/UL listed outlet box and it is installed correctly. F R - W 1 8 1 8 Nautilus Instructions... - Page 29 Confirm your network is compatible by checking your router settings or contact your router manufacturer. 2. Make sure your network’s SSID is not hidden. 3. Your fan does not support 5 GHz network connectivity. connection. FR- W 1 81 8 Nautilus Instructions 29...
- Page 30 10 seconds and back on. Alternately, you can use the circuit breaker the fan is connected to by toggling it off for 10 seconds and back on. If your fan is wired through a Modern Forms wall control (P/N: F-WCBT-WT) pull the Air-Gap Switch on your wall control, wait 10 seconds, and re-insert.
- Page 31 What is Pairing? Pairing is the process of connecting your Modern Forms remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
- Page 32 Notice of a defect in writing must be received by Modern Forms within five (5) years from the date of purchase (or according period of time as outlined by material). Excluded from warranty are any 3rd party component which carries its own manufacturer’s warranty.
- Page 33 La notificación de un defecto por escrito debe ser recibida por Modern Forms dentro de los cinco (5) años a partir de la fecha de compra (o según el período de tiempo indicado en el material). Quedan excluidos de la garantía todos los componentes de terceros que tengan la garantía de su propio fabricante.
- Page 34 F R - W 1 8 1 8 Nautilus Instructions...
- Page 35 FR- W 1 81 8 Nautilus Instructions 35...
- Page 36 FR- W 1 81 8 modernforms.com...
