- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Permasteel PG-50506SRLN-1 Owner's Manual Shop genuine replacement parts for Permasteel PG-50506SRLN-1 Find Your Permasteel Grill Parts - Select From 54 Models -------- Manual continues below --------...

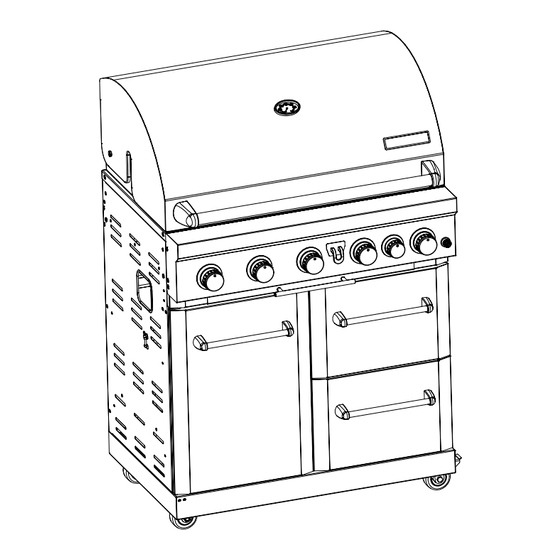

- Page 2 FOR OUTDOOR USE ONLY Stainless Steel Gas Grill USER’S MANUAL MODEL NUMBER: PG-50506SRL(N) This unit can match with both side shelves and side cabinets. CUSTOMER SERVICE: (888)-287-0735...
- Page 3 This warranty does not cover Product that have been altered or damaged due to: normal wear, rust, abuse, improper maintenance, improper use, disassembly of parts and/or attempted repair by anyone other than an authorized employee of Permasteel, Inc.This warranty does not cover surface scratches, rust or heat damage to the finish, which is considered normal wear.
-
Page 4: Table Of Contents
TABLE OF CONTENTS BEFORE YOU BEGIN MESSAGE TO OUR USERS PAGE 1 SAFETY SYMBOLS PAGE 1 INSTALLATION & SAFETY PRECAUTIONS PAGE 2 GAS WARNING PAGE 2 ASSEMBLY PARTS PAGE 3 OPTIONAL SIDES FOR CHIOCE PAGE 5 ASSEMBLE WITH SIDE SHELVES PAGE 8 ASSEMBLE WITH SIDE CABINETS PAGE 13... -
Page 5: Message To Our Users
MESSAGE TO OUR USERS Thank you for your purchase of our Stainless Steel BBQ Gas Grill. We sincerely wish you will enjoy using our fine products. Please read this User’s Manual in its entirety before using the grill. Please contact our customer service at (888)-287-0735 if you have any questions. Please read this User’s Manual carefully. -
Page 6: Installation & Safety Precautions
Your grill has been designed to operate using only the gas specified on the rating plate. Do not attempt to operate your grill with other gases.Failure to follow this warning may result in a fire hazard and bodily harm, and PermaSteel will void your warranty. -
Page 7: Parts
GRILL PARTS LIST REF# DESCRIPTION Q’TY REF# DESCRIPTION Q’TY Back Panel Temp. Gauge Seat Hole Bushing Temp. Gauge Rear Burner Cover Clip Rings Thermocouple Cover Name Plate Thermocouple Bracket Handle Seat Smoker Box Handle Smoker Cover Grease Tray Firebox Knob, Rear Burner Corrugated Pipe B Knobs Thermocouple... - Page 8 GRILL PARTS DIAGRAM...
-
Page 9: Optional Sides For Chioce
OPTIONAL SIDES FOR CHOICE Dear Customer: Below parts are optional for your choice (no Dear Customer: Below parts are optional for your choice (no included with grill) included with grill) Side Shelves Side Cabinets... - Page 10 OPTIONAL SIDES FOR CHOICE REF ＃ Parts of Left Shelf Push Bar S-style Hooks Left Side Shelf Left Side Shelf Support Motor Bracket REF ＃ Parts of Right Shelf Push Bar Right Side Shelf Right Side Shelf Support...
- Page 11 OPTIONAL SIDES FOR CHOICE REF# Parts of Left Cabinet CounterTop Motor Bracket Back Panel Cross Bar Magnets Left Side Panel Drawer Brackets Sliding Bars Drawer Seat Drawer Transom Right Side Panel Drawer Front Panel Drawer Handle Seats Drawer Handle Upper Door Hinge Left Door Handle Left Door Door Transom...
-
Page 12: Assemble With Side Shelves
ASSEMBLY INSTRUCTIONS ASSEMBLE THE SIDE SHELVES TO GRILL: ASSEMBLE THE SIDE SHELVES TO GRILL: Tools Required: #2 Philips head screwdriver (not provided) Hexagon/Allen wrench (provided). The following hardware kit is provided with side shelves. Item Description Specification Quantity Truss head screw 1/4-20x1/2”... - Page 13 ASSEMBLY INSTRUCTIONS STEP II: Take out left side shelf from carton. Use two 1/4-20x1/2” screws to attach left side shelf from inside of the firebox, and use three same screws to attach it from outside of firebox. Use three 5/32-32x1/2” screws to attach left side shelf angle iron to side shelf, and also use two same screws to attach it to firebox from outside.
- Page 14 ASSEMBLY INSTRUCTIONS STEP III: Take out right side shelf from carton. Use two 1/4-20x1/2” screws to attach right side shelf from inside of the firebox, and use three same screws to attach it from outside of firebox. Use three 5/32-32x1/2” screws to attach right side angle iron to side shelf, and also use two same screws to attach it to firebox from outside.
- Page 15 ASSEMBLY INSTRUCTIONS STEP IV: Remove packing material from flame tamers, cooking grids and warming rack , then place them in the proper positions shown below. If separately rotisserie kit is available, please follow below assemble steps(see the picture as above): Take out rotisserie parts from carton.
- Page 16 ASSEMBLY INSTRUCTIONS STEP V: When the grill is in the desired location, lock the caster brakes, this will keep the grill unit in place for safe operation.
-
Page 17: Assemble With Side Cabinets
ASSEMBLY INSTRUCTIONS ASSEMBLE SIDE CABINETS TO GRILL: ASSEMBLE SIDE CABINETS TO GRILL: Tools Required: #2 Philips head screwdriver (not provided) Hexagon/Allen wrench (provided). The following hardware is provided with island sides. Item Description Specification Quantity Truss head screw 1/4-20x1/2” 2 pcs (With Split lock And Gasket) STEP I: Take out grill body and the cabinets from packing carton, and remove all the... - Page 18 ASSEMBLY INSTRUCTIONS STEP II : Place the motor bracket to the left side cabinet with 2 pcs of 1/4-20*1/2 screws. STEP III : Remove packing material from flame tamers, cooking grids, warming rack, then place them in the proper positions shown below.
- Page 19 ASSEMBLY INSTRUCTIONS STEP IV : Place the side cabinets close to grill, make them on the same line. STEP V : When the grill is in the desired location, lock the caster brakes, this will keep the grill unit in place for safe operation.
- Page 20 ASSEMBLY INSTRUCTIONS If separately rotisserie kit is available, please follow below assemble steps: Take out rotisserie parts from carton. Tread key washers and counter balance onto treaded end of rotisserie rod ,next tread handle and tighten, slide shaft collar through other side of rod followed by the two prongs, (forks should be pointing towards each other) tighten thumb screws on shaft collar and prongs.
- Page 21 ASSEMBLY INSTRUCTIONS Safety Notice: The regulator hose(natural gas hose) should go through the U shaped bracket, in order to prevent the hose from lifting up and touching the hot firebox. Note: if replacing regulator (natural gas hose) please make sure to put regulator hose (natural gas hose) through U shape bracket.
-
Page 22: Gas Connection
GAS CONNECTION WARNING IMPORTANT: PG-50506SRL has been designed to operate using only LP gas, PG-50506SRN has been designed to operate using only Natural Gas, please notice the gas specified on the rating plate. Do not attempt to operate your grill with other gases. Failure to follow this warning may result in a fire hazard and bodily harm. - Page 23 GAS CONNECTION OPD HAND WHEEL CONNECT THE REGULATOR TO THE LP TANK VERY IMPORTANT: - THE REGULATOR SHALL NOT BE IN A LOCATION THAT WILL ATTAIN A TEMPERATURE ABOVE 140℉（60℃）. - THE REGULATOR SHALL INCORPORATE A PRESSURE RELIEF VALVE OR OVERPRESSURE DEVICE. - THE INLET OF THE PRESSURE REGULATOR SHALL BE FITTED TO CONNECT THE TYPE I CONNECTION OF THE TANK VALVE PER ANSIZ21.81.
- Page 24 GAS CONNECTION WARNING Never insert any foreign objects into the valve outlet. It may damage the valve and cause leak, leaking gas may result in fire, explosion, heavy body injury, or even death. Do not use this grill until leak tested. If you cannot stop a gas leak, close the LP tank valve IMMEDIATELY, call LP gas supplier or the fire department.
- Page 25 GAS CONNECTION The appliance must be isolated from the gas supply piping system by closing its individual manual shut off valve during any pressure testing of the gas supply piping system at test pressure equal to or less than 1/2 psi (3.5Kpa). WARNING Do not use hard metal piping of any kind to connect this type of grill to natural gas source.
- Page 26 GAS CONNECTION 2. Coat pipe nipple with gas resistant teflon tape or pipe dope. Tighten quick- disconnect coupler onto pipe nipple that leads to natural gas supply. 3. After grill is completely assembled, make sure natural gas supply valve is “OFF” and then connect natural gas hose to socket.
-
Page 27: Leak Testing
LEAK TESTING GENERAL Although all gas connections on the grill are leak tested at the factory prior to shipment, a complete gas tightness check must be performed at the installation site due to possible mishandling in shipment, or excessive pressure unknowingly being applied to the unit. - Page 28 LEAK TESTING SAFETY TIPS: 1) Always check for leaks after every gas tank change. 2) Always check for leaks before each use. 3) Check all gas supply fittings for leaks before each use. It is handy to keep a spray bottle of soapy water near the shut-off valve of the gas supply line. Spray all the fittings.
-
Page 29: Final Installation Checklist
FINAL INSTALLATION CHECKLIST WARNING PRE-START CHECKLIST: Property damage, bodily harm, severe burns, and death could result from failure to follow these safety steps. These steps should be performed after the grill has been assembled, stored, moved, cleaned, or repaired, DO NOT operate this grill until you have read and understand ALL of the warning and instructions in this manual. -
Page 30: Grill Lighting Instruction
GRILL LIGHTING INSTRUCTION VERY IMPORTANT: ALWAYS INSPECT THE HOSE PRIOR TO EACH USE. BEFORE LIGHTING: Inspect the gas supply hose before turning the gas “HI”. If there is evidence of cuts, wear, or abrasion, it must be replaced before use. The replacement hose assembly must be that specified by the manufacturer. - Page 31 GRILL LIGHTING INSTRUCTION Usage: 1) Read instructions before lighting. 2) Open the lid during lighting. 3) Simply place a lighted match between the coils on the end of the lighting rod and hold next to the burner to ignite. 4) Push and turn the knob to “HI ” position, make sure the burner lights and stays lighted.
-
Page 32: Operating Instruction
OPERATING INSTRUCTION TOTAL GAS CONSUMPTION: Total gas consumption (per hour) of PG-50506SRL(N) grill with all burners on “HI”: Main burners 60,000 Btu/hr Rear burner 12,000 Btu/hr Total 72,000 Btu/hr USING THE GRILL: Grilling requires high heat for searing and proper browning. Most foods are cooked at the “HI ”... -
Page 33: Care & Maintenance
CARE & MAINTENANCE MAINTENANCE 1) Keep the grill area clear and free from combustible materials, gasoline and other flammable vapors and liquids. 2) Keep the holes in the three sides of the cart clear and free from debris, thus ensure the flow of combustion and ventilation air is unobstructed. 3) Visually check burner flames as following: - Remove cooking grids and flame tamers. -
Page 34: Trouble Shooting
TROUBLE SHOOTING BEFORE CALLING FOR SERVICE Please check the following problems/solutions before contact our service center (888)- 287-0735. -
Page 35: Food Safety
FOOD SAFETY FOOD SAFETY: 1) Always follow the following tips to enjoy safe and healthy outdoor grilling. 2) Always use hot soapy water to wash hands, surfaces & utensils after processing raw meat. 3) Always separate raw meat from cooked foods to avoid cross-contamination. 4) Always use clean utensils to handle the food. - Page 36 Product Registration form and (1) fax the form and a copy of your receipt to FAX # 909-287-0733, or (2) mail the form and a copy of your receipt to PermaSteel Inc, 14231 Fern Avenue, Building 10, Chino, CA 91710.
- Page 37 PERMASTEEL, INC. 14231 FERN AVENUE, BUILDING 10, CHINO, CA 91710 TEL: (888)-287-0735 FAX: (909)-287-0733 EMAIL: SERVICE@PERMASTEEL.NET...
