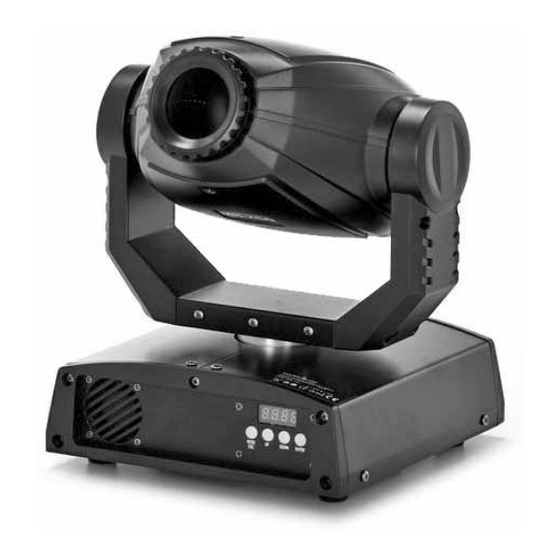

Summary of Contents for Stairville MH-X50+

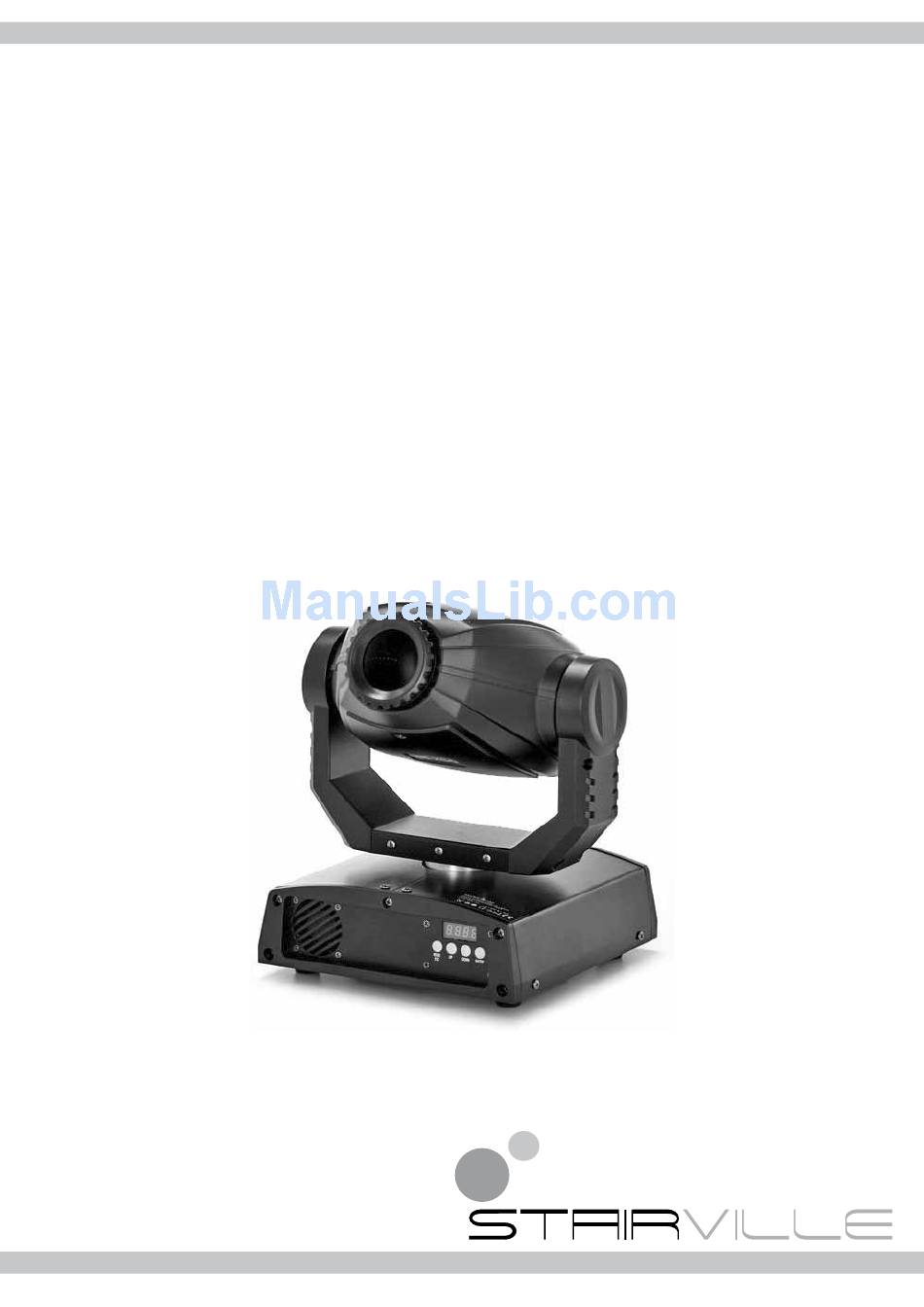

- Page 1 ‘ wner anual MH-X50+ l dMX-C led s OntrOlled Oving...
-
Page 2: Table Of Contents
Contents Safety notes ............................3 Power supply ..........................3 Operating conditions ........................3 Installation ............................4 Setup ..............................5 Connections in DMX mode ......................5 Connections in master/slave mode ....................5 DMX connectors ........................5 Components and functions .........................6 Front side ...........................6 Rear side ...........................6 Operation ............................7 Main menu ..........................7 DMX address ..........................7 Operation mode .........................7 Pan inversion ..........................7... -
Page 3: Safety Notes
Safety notes Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in elec- tric shock, fire or serious injury. Save all warnings and instructions for future reference. DANGER Electric shock caused by high voltages inside! Within the unit there are areas where high voltages may be present. -
Page 4: Installation
Installation You can install the device on the wall, the ceiling or on the ground. A mounting bracket and the required screws are provided together with the device. WARNING Injuries caused by falling parts! Make sure that the installation complies with the standards and rules that apply in your coun- try. -
Page 5: Setup
Setup The required connections depend on the operation mode of the device. Notice Malfunction or damage to equipment! For failure-free operation of the DMX chain, use dedicated DMX cables. Never use ordinary microphone ca- bles. Never connect the DMX output to audio devices such as mixers or amplifiers. The voltages used on the DMX lines may severely damage the audio input circuits. -
Page 6: Components And Functions
Components and functions Front side ö 8888 MODE DOWN ENTER & Display ö DMX indicator: Shows that a DMX signal is being received ENTER: Activates a setting DOWN: Decreases a value UP: Increases a value & MODE/ESC: Chooses between the options of the selected mode Rear side USE ONLY A 250V FUSE INPUT... -
Page 7: Operation
Operation To operate the device, connect it to the mains. After a few seconds, the fans start to work, the head moves to its default pan and tilt positions and the display indicates a system reset. After another few seconds, the dis- play shows “d001”. -
Page 8: Tilting Range
Tilting range Press “MODE/ESC” until the display shows “ti27”. Using the “Up” and “Down” buttons, you can now ti27 define the tilting range. Choose between “ti27” (tilting range = 270°), “ti18” (tilting range = 180°) and “ti 9” (tilting range = 90°). Press “ENTER” to store the setting. System reset Press “MODE/ESC”... -
Page 9: Menu Diagram
Menu diagram d001 DMX Address d512 NASL Operation mode NAFA NStS SLAU Pan inversion rPAN Tilt inversion rtit Display inversion rdiS 14CH DMX mode PA54 Panning range PA36 PA18 ti27 Tilting range ti18 ti 9 rESt System reset LoAd Load defaults www.thomann.de... -
Page 10: Functions In 8-Channel Dmx Mode
Functions in 8-channel DMX mode Channel Value Function 0…255 Pan (0° to maximum value of the panning range: 180°, 270° or 540°) 0…255 Tilt (0° to maximum value of the tilting range: 90°, 180° or 270°) Colour wheel 0…6 White 7…13 Yellow 14…20... - Page 11 Channel Value Function Gobo rotation 0…63 Gobo fixed 64…147 Positive rotation with increasing speed 148…231 Negative rotation with increasing speed 232…255 Gobo bouncing Prism 0…7 Reserved 8…247 Rotating prism with increasing speed 248…255 Prism fixed 0…255 Focus www.thomann.de...
-
Page 12: Functions In 14-Channel Dmx Mode
Functions in 14-channel DMX mode Channel Value Function 0…255 Pan (0° to maximum value of the panning range: 180°, 270° or 540°) 0…255 Tilt (0° to maximum value of the tilting range: 90°, 180° or 270°) 0…255 Fine pan 0…255 Fine tilt 0…255 Response speed (normal to slow) - Page 13 Channel Value Function Gobo rotation 0…63 Gobo rotation fixing 64…147 Positive rotation with increasing speed 148…231 Negative rotation with increasing speed 232…255 Gobo bouncing Special functions 0…7 Reserved 8…15 Blackout while pan/tilt moving 16…23 Disabled blackout while pan/tilt moving 24…31 Blackout while colour wheel moving 32…39 Disabled blackout while colour wheel moving...
-
Page 14: Troubleshooting
Troubleshooting A few common problems that may occur during operation are shown in the following. Here are some sugges- tions for easy troubleshooting: The device does not work, no light and the fan does not work 1. Check the power connection and main fuse. No response to the DMX controller 1. -
Page 15: Protecting The Environment
Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed and are not in the reach of babies and young children. - Page 16 © 2011 • Musikhaus Thomann e. K. • Treppendorf 30 • 96138 Burgebrach • Germany • www.thomann.de...
