ANTAIRA LNP-1002C-SFP-24 Series Quick Installation Manual

Antaira Technologies

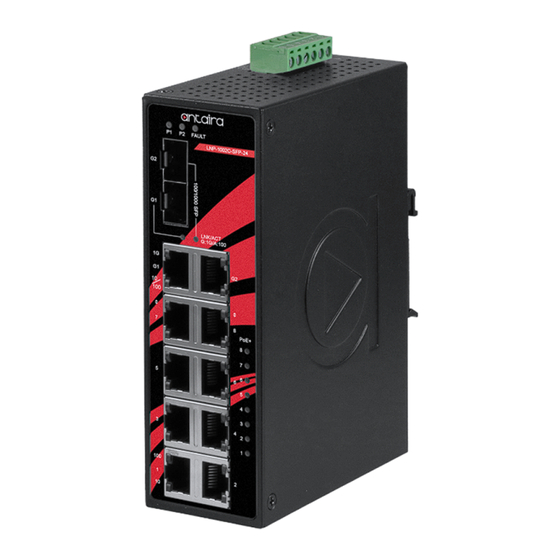

LNP-1002C-SFP-24 Series
10-Port Industrial PoE+ Unmanaged Ethernet Switch,
w/8*10/100Tx (30W/Port) and 2*Gigabit Combo Ports
(2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots);
12~55VDC Power Input
Quick Installation Guide
Version 1.0
(March 2022)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
 1 – Quick installation guide
 1 – LNP-1002C-SFP-24(-T)
 1 – Wall mounting bracket set with screws
 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
 1 – Dust cover set

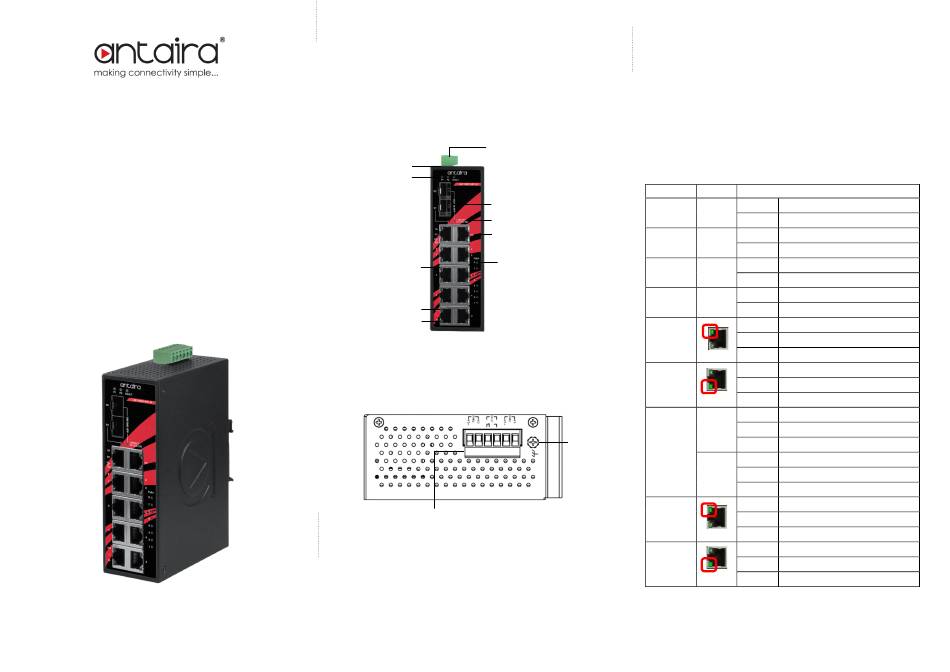

Front Panel Layout
Grounding Screw
LED for Power 1, Power 2 and Fault
LAN# 1~8 – 10/100Tx RJ45
LAN# 1~8 – LED for Link/Activity Status
100Mbps
LAN# 1~8 – LED for Link/Activity Status
10Mbps
Top Panel View
LNP-1002C-SFP-24 series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~55VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance
• All RJ45 ports support the auto MDI/MDI-X function
• Embedded 8*10/100Tx (30W/Port) and 2*Gigabit combo
ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots)
• Store-and-forward switching architecture
• 8K MAC address table
• Jumbo frame supports 9.6K
19020000000175
Power Input & Connection
• DC 12 to 55V redundant power, with a 6-pin removal
terminal block
• It is recommended to use a UL listed industrial power supply
Operating Temperature
• Standard operating temperature model: -10°C to 70°C
• Extended operating temperature model: -40°C to 75°C
Case/Installation
• IP30 protection
• DIN-Rail and wall mount design
6-Pin Removal Terminal Block (Power Input)
LED Indicators
LED
Gigabit Combo Port G1~2 – 100/1000 SFP
Power 1
SFP Fiber Ports G1~2 – LED for Link/Activity Status
Gigabit Combo Port G1~2 – 10/100/1000Tx RJ45
Power 2
LAN# 1~8 – LED for PoE Status
Fault
PoE Indicators
(Port 1~8)
LAN Port 1~8
(Upper LED)
LAN Port 1~8
(Lower LED)
Grounding Screw
SFP Port
Combo G1~G2
LINK/ACT
LAN Port
Combo G1~G2
(Upper LED)
LAN Port
Combo G1~G2
(Lower LED)
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
On Power input 1 or 2 is inactive
Red
Off Both power input 1 and 2 are active
On The port is supplying power to the powered-device
Green
Off No powered-device attached or power supplying fails
On Connected to network, 100Mbps
Flashing Networking is active
Off Not connected to network
Green
On Connected to network, 10Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network, 1000Mbps
Green Flashing Networking is active
Off Not connected to network
On Connected to network, 100Mbps
Flashing Networking is active
Amber
Off Not connected to network
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
Green
On Connected to network, 10/100Mbps
Flashing Networking is active
Green
Off Not connected to network
