- Page 1 LNP-0800G Series 8-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch, with 8*10/100/1000Tx (30W/Port), 48~55VDC Power Input Hardware Manual Version 1.0 (May 2022)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Top View Panel 2.4 LED Indicators... -
Page 6: Overview

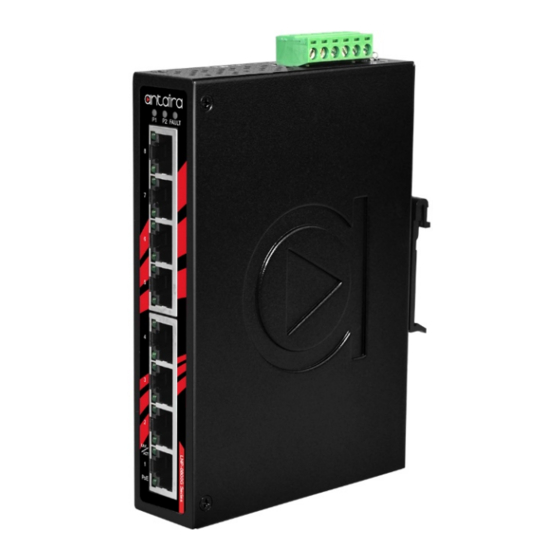

LNP-0800G Series - Hardware Manual - v1.0 1 Overview Antaira Technologies’ LNP-0800G Series is an 8-port industrial gigabit PoE+ unmanaged Ethernet switch embedded with 8*10/100/1000Tx Ethernet ports that support IEEE 802.3af/at for a maximum of 30W/port. This product series is housed in a hardened IP30-rated metal enclosure that includes DIN-rail and wall mounting hardware. -
Page 7: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within this hardware manual. -
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 30mm x 99mm x 142mm... -
Page 9: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 Top View Panel Figure 2.3, below, shows the top panel of the product series:... -
Page 10: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 11: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 2.5 Ethernet Ports RJ45 Ports ● RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections. Auto MDI means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 2.6 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 2.8 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only), and form a normally open circuit. -
Page 14: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 2.9 Grounding Note Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown below in Figure 2.9. -
Page 15: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. -
Page 16: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. - Page 17 Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 Figure 3.4 - Remove the DIN-Rail bracket from the Switch Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions...
-
Page 18: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 19: Maintenance And Service
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot... -
Page 20: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet Standards IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3af/at Power over Ethernet... - Page 21 Antaira Technologies - Industrial Ethernet Switches LNP-0800G Series - Hardware Manual - v1.0 Dimensions 30 x 142 x 99 mm (W x H x D) Unit: 1.55 lbs. Weight Shipping: 1.9 lbs. Mounting DIN-Rail mounting; Wall mounting Power Requirement Input Voltage...
- Page 22 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
