- Page 1 LNP-800AGH Series 8-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, with 8*10/100/1000Tx Ports (30W/Port), 48~55VDC Power Input Hardware Manual Version 1.0 (April 2021)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Hardware Manual Version 1.0 (April 2021) The manual supports the following models: ● LNP-800AGH ● LNP-800AGH-T This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Top View Panel 2.4 LED Indicators... -
Page 5: Overview

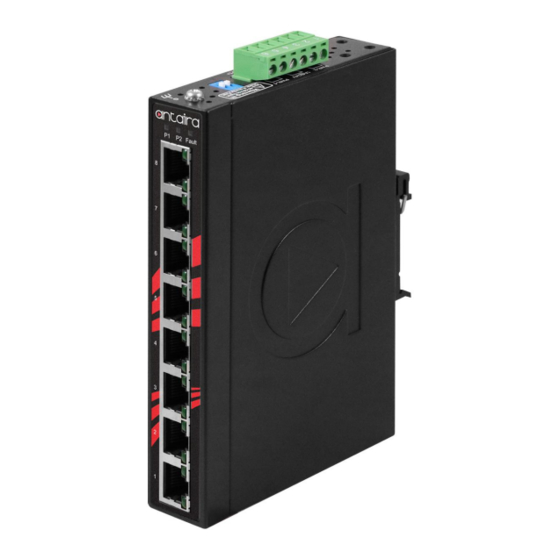

LNP-800AGH Series - Hardware Manual - v1.0 1 Overview Antaira Technologies’ LNP-800AGH series is an 8-port industrial gigabit PoE+ unmanaged Ethernet switch embedded with 8*10/100/1000Tx Ethernet ports that support IEEE 802.3af/at for a maximum of 30W/port. This product series is housed in a hardened IP30 rated metal enclosure that includes DIN-rail and wall mounting hardware. -
Page 6: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within this hardware manual. -
Page 7: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 54mm x 99mm x 142mm... -
Page 8: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 Top View Panel Figure 2.3, below, shows the top panel of the product series:... -
Page 9: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 Figure 2.3 - Top View Panel 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. -
Page 10: Dip Switch Function
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 2.5 DIP Switch Function DIP-1 DIP-2 Function Power failure relay alarm disabled PWR 1 failure, relay alarm enabled PWR 2 failure, relay alarm enabled PWR 1 or PWR 2 failure, relay alarm enabled Table 2.2 - DIP Switch Functions... -
Page 11: Cabling
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 4 / TP2+ 7 / TP3+ 4 / TP2+ 4 / TP3+ 5 / TP2- 8 / TP3- 5 / TP2- 5 / TP3- 6 / TP1-... -
Page 12: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.7. Figure 2.7 - Power Terminal Block Caution: Only use copper conductors, 125°C, tighten to 5 lbs. -
Page 13: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG. If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm. -
Page 14: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. -
Page 15: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 Figure 3.2 - Insert the Switch on the DIN-Rail Figure 3.3 - Stable the Switch on the DIN-Rail 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. - Page 16 Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 Figure 3.4 - Remove DIN-Rail bracket from the Switch Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions...
-
Page 17: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 18: Maintenance And Service
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot... -
Page 19: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet Standards IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3x Flow Control... - Page 20 Antaira Technologies - Industrial Ethernet Switches LNP-800AGH Series - Hardware Manual - v1.0 Housing Metal, IP30 rated Dimensions 26 x 144.5 x 95 mm (W x H x D) Unit: 0.86 lb. Weight Shipping: 1.5 lbs. Mounting DIN-Rail mounting; Wall mounting...
- Page 21 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
