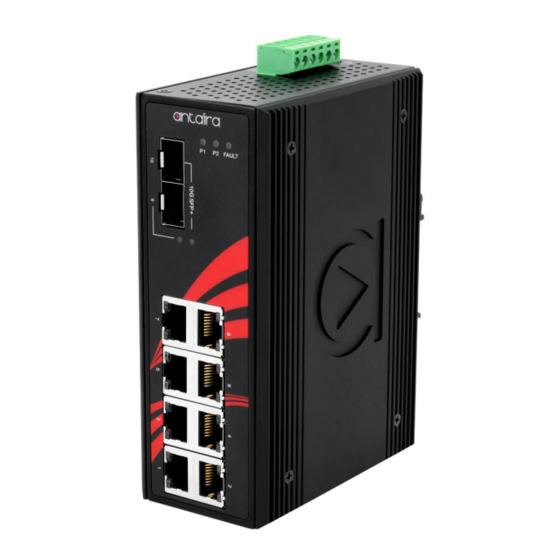

- Page 1 Antaira Technologies - Industrial Ethernet Switches LNP-1002G-10G-SFP-24 User Manual V1.1 LNP-1002G-10G-SFP-24 10-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch with 8*10/100/1000Tx (PSE: 30W/Port) + 2*10G SFP+ Slots; 24~55VDC Version 1.1 (July 2018) User Manual...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Ethernet Switches Industrial Grade Unmanaged Ethernet Switches This manual supports the following models: LNP-1002G-10G-SFP-24 This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNP-1002G-10G-SFP-24 User Manual V1.1 Table of Contents 1.Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........1 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............ -
Page 5: Overview
LNP-1002G-10G-SFP-24 User Manual V1.1 1. Overview Antaira Technologies’ new compact DIN-Rail industrial gigabit PoE+ unmanaged switch, LNP- 1002G-10G-SFP, features 8*10/100/1000Tx Ethernet ports that support IEEE 802.3at high power PoE (30W/Port), and two 10G SFP+ slots for long distance fiber connections. The device is designed with high EFT and ESD protection and supports extreme operating temperature environments (-40°... -
Page 6: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LNP-1002G-10G-SFP-24 User Manual V1.1 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described... -
Page 7: Hardware Description
LNP-1002G-10G-SFP-24 User Manual V1.1 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-1002G-10G-SFP- 24: 10-port industrial PoE+ gigabit unmanaged Ethernet switch with 8*10/100/1000Tx (PSE: 30W/Port) + 2*10G SFP+ slots; 24~55VDC. (W x D x H) is 54mm x 99mm x 142mm... -
Page 8: Front Panel
LAN# 1~8 – PoE Status Figure 2.2 2.3 Top View Figure 2.3, below, shows the top panel of the LNP-1002G-10G-SFP-24 switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (24~55 VDC). Figure 2.3... -
Page 9: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNP-1002G-10G-SFP-24 User Manual V1.1 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 10: Cabling
Antaira Technologies - Industrial Ethernet Switches LNP-1002G-10G-SFP-24 User Manual V1.1 The following figures show the cabling schematics for straight-through and crossover cables. Figure 2.4 Figure 2.5 Straight-Through Cables Schematic Crossover Cables Schematic The following figures show the 10,100, and 1000 Ethernet RJ‐45 pin outs. - Page 11 Antaira Technologies - Industrial Ethernet Switches LNP-1002G-10G-SFP-24 User Manual V1.1 To connect the transceiver and LC cable, please follow the steps below: First, insert the SFP transceiver module into the SFP slot as shown below in Figure 2.7. Notice that the triangle mark is at the bottom of the SFP slot.
-
Page 12: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNP-1002G-10G-SFP-24 User Manual V1.1 2.7 Wiring the Power Inputs Please follow the below steps to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.12. -
Page 13: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNP-1002G-10G-SFP-24 User Manual V1.1 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please refer to Figure 3.1 to learn how to install the DIN-Rail on the switch. -
Page 14: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNP-1002G-10G-SFP-24 User Manual V1.1 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. -
Page 15: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LNP-1002G-10G-SFP-24 User Manual V1.1 4. Hardware Installation Installation Steps This section will explain how to install Antaira Technologies’ LNP-1002G-10G-SFP-24: 10-port industrial PoE+ gigabit unmanaged Ethernet switch with 8*10/100/1000Tx (PSE: 30W/Port) and 2*10G SFP+ slots; 24~55VDC. Installation Steps 1. -
Page 16: Network Applications
Antaira Technologies - Industrial Ethernet Switches LNP-1002G-10G-SFP-24 User Manual V1.1 5. Network Applications Figure 5.1 Industrial Ethernet Switch Application Reference... -
Page 17: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. ... -
Page 18: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNP-1002G-10G-SFP-24 User Manual V1.1 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies’ LNP-1002G-10G-SFP: 10-port industrial PoE+ gigabit unmanaged Ethernet switch with 8*10/100/1000Tx, and 2*10G SFP+ slots; 24~55VDC. IEEE 802.3 10Base-Tx Ethernet IEEE 802.3u 100Base-Tx Fast Ethernet... - Page 19 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
