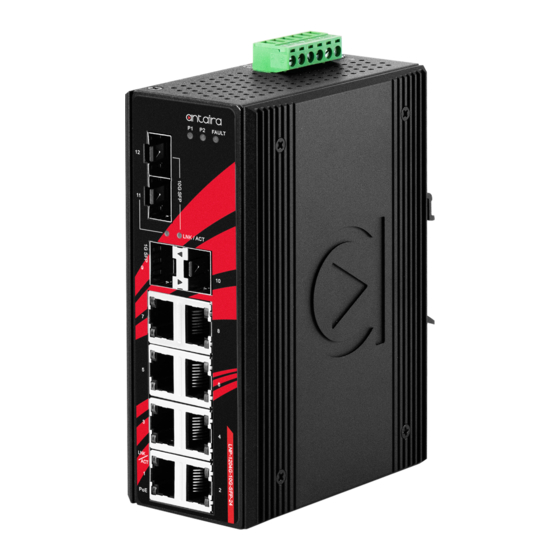

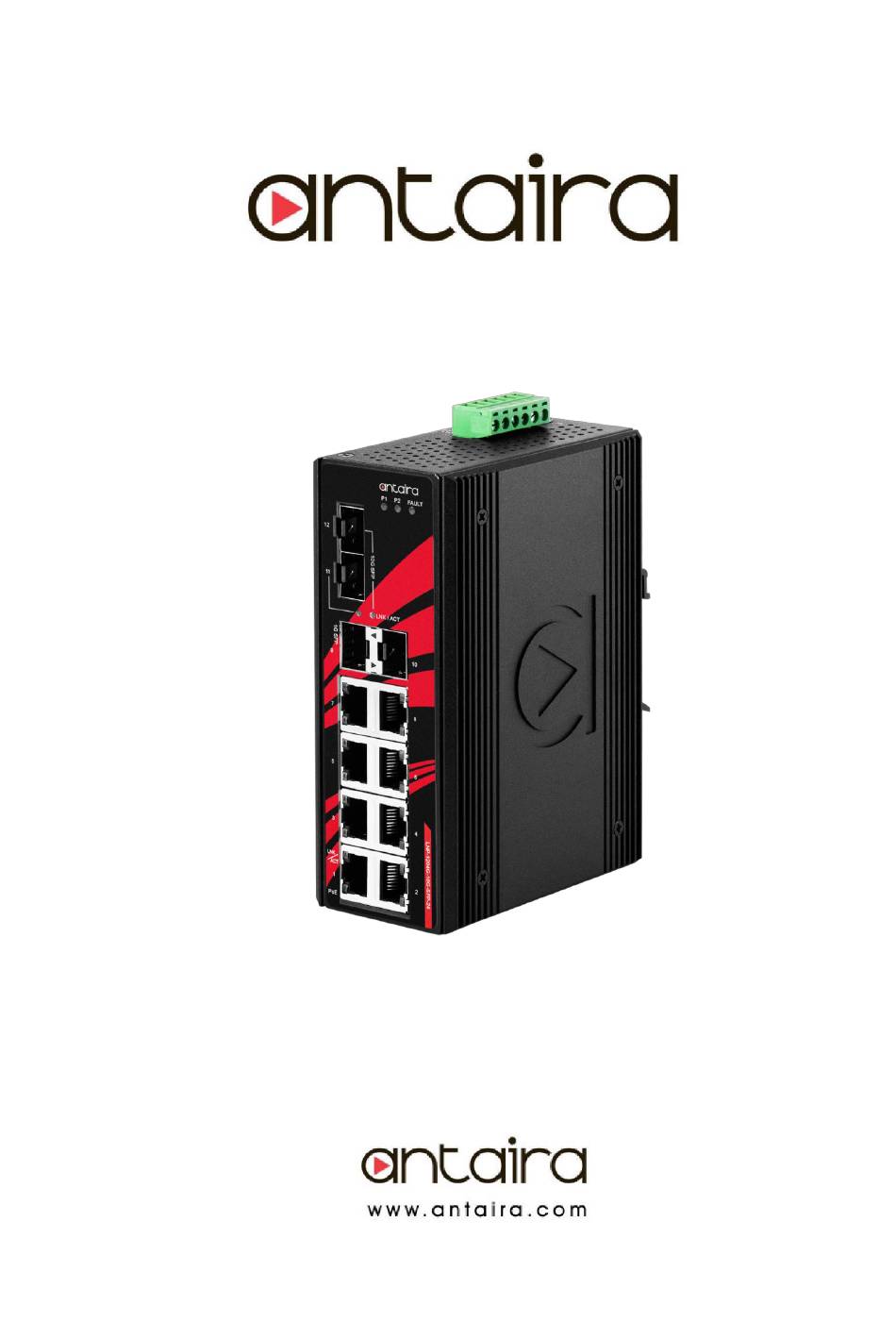

- Page 1 LNP-1204G-10G-SFP-24 12-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, w/8*10/100/1000Tx (30W/Port), 2*1G SFP Slots, and 2*10G SFP+ Slots; 12~55VDC Power Input Hardware Manual Version 1.1 (November 2020)
- Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 CE Mark Warning This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 Table of Contents 1. Introduction ................ 6 1.1 Product Overview ..............6 1.2 Product Hardware Features ............6 1.3 Package Contents ..............7 1.4 Safety Precaution ..............7 2. Hardware Description ............9 2.1 Physical Dimensions .............. -
Page 6: Introduction
8*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3at for a maximum of 30W/port. The LNP-1204G-10G-SFP-24 has 2*1G SFP slots and 2*10G SFP+ slots which provide options for long-distance fiber connections. The Ethernet switches are designed with high EFT and ESD protection and support standard operating temperature from -40°... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 • DIN-Rail and wall mount design • Installation in pollution degree 2 environment 1.3 Package Contents ➢ 1 – LNP-1204G-10G-SFP-24 ➢ 1 – Quick Installation Guide ➢ 1 – Wall mounting bracket set with screws ➢... - Page 8 Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 Figure 1.2 - Hot Surface Warning Label Figure 1.2 - É tiquette d'avertissement de surface chaude...
-
Page 9: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LNP-1204G-10G-SFP-24: (W x D x H) is 54mm x 99mm x 142mm Figure 2.1 LNP-1204G-10G-SFP-24 Physical Dimensions... -
Page 10: Front Panel
Figure 2.2 - The Front Panel of LNP-1204G-10G-SFP-24 2.3 Top View Figure 2.3, below, shows the top panel of the LNP-1204G-10G-SFP-24 switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12~55VDC). 6-Pin Removal Terminal Block Grounding Screw Figure 2.3... -
Page 11: Led Indicators
Networking is active 11~12 Not connected to network Table 2.1 - LED Indicators for LNP-1204G-10G-SFP-24 Note: "P1" is the abbreviation for "Power 1", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". 2.5 Ethernet Ports •... -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 • RJ-45 Pin Assignments Pin Number Assignment Table 2.3 - RJ45 Pin Assignments The “+” and “-” signs represent the polarity of the wires that make up each wire pair. -
Page 13: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. Caution: Please employ optional optical transceiver (SFP/Fixed Fiber) that complies with IEC-60825-1 and classified as Class 1 laser product. -
Page 14: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 • Only use copper conductors, 125°C, tighten to 5 lbs. • The wire gauge for the terminal block should range between 18~20 AWG. Caution: • Utilisez uniquement des conducteurs en cuivre, 125°C, serrez à 5 lb. - Page 15 Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown blow in Figure 2.9.
-
Page 16: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on... -
Page 17: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall Attention: “Wall”... -
Page 18: Hardware Installation
LNP-1204G-10G-SFP-24 Hardware Manual V1.1 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LNP-1204G-10G-SFP-24: Caution: This device is intended for use indoor. Attention: Cet appareil est destiné à être utilisé à l'intérieur. Caution: The device is intended to be installed in an industrial control enclosure and panel. -
Page 19: Maintenance And Service
• If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira or Antaira’s authorized channel partners for technical support service, if the problem still cannot be resolved. -
Page 20: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNP-1204G-10G-SFP-24 Hardware Manual V1.1 Technical Specifications Table 5.1 has the technical specifications for Antaira’s LNP-1204G-10G-SFP-24: IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet Standards IEEE 802.3z 1000X Gigabit Fiber IEEE 802.3ae 10 Gigabit Ethernet... - Page 21 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
