- Page 1 Antaira Technologies - Industrial Ethernet Switches LNP-1600G Series User Manual V1.1 LNP-1600G Series 16-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, with 16*10/100/1000Tx (PSE: 30W/Port) Version 1.1 User Manual...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Unmanaged Ethernet Switches User Manual Version 1.1 (September 2020) This manual supports the following models: • LNP-1600G • LNP-1600G-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNP-1600G Series User Manual V1.1 Table of Contents 1.Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........2 1.3 Safety Precaution ..........2 2. Hardware Description ..........3 2.1 Physical Dimensions .......... 3 2.2 Front Panel ............ -
Page 5: Overview
This series is the perfect solution for any application requiring high bandwidth, long-distance communication, and high density PoE connectivity. The LNP-1600G series is a power sourcing device that supports PoE+ when an input voltage power of 48~55VDC range is applied. This product series supports high EFT & ESD protection to prevent damage from unregulated power coming into the unit. -
Page 6: Package Contents
Antaira Technologies - Industrial Ethernet Switches LNP-1600G Series User Manual V1.1 1.2 Package Contents ➢ 1 – LNP-1600G(-T) ➢ 1 – Quick Installation Guide ➢ 2 – Wall mounting brackets and screws ➢ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm 1.3 Safety Precaution... -
Page 7: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LNP-1600G Series User Manual V1.1 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-1600G series. (W x D x H) is 67mm x 99mm x 142mm Figure 2.1... -
Page 8: Front Panel

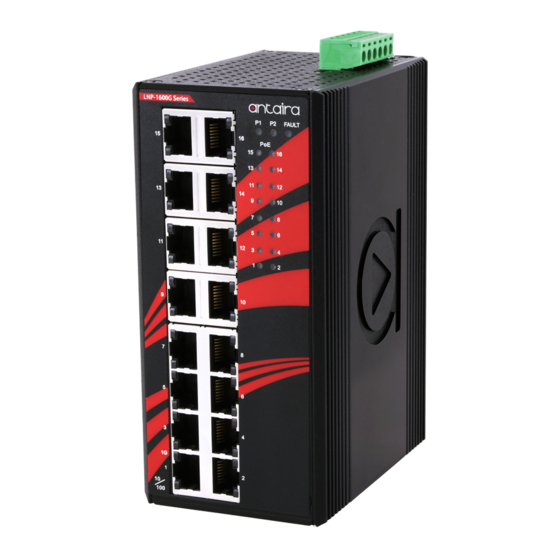

See Figure 2.2 for the front panel of the LNP-1600G series. Figure 2.2 2.3 Top View Figure 2.3, below, shows the top panel of the LNP-1600G series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (48-55 VDC). Figure 2.3... -
Page 9: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LNP-1600G Series User Manual V1.1 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 10: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LNP-1600G Series User Manual V1.1 2.5 Ethernet Ports ◼ RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10/100/1000Base-Tx devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight- through or crossover cabling. -
Page 11: Cabling
Antaira Technologies - Industrial Ethernet Switches LNP-1600G Series User Manual V1.1 The following figures show the cabling schematics for straight-through and crossover cables. Figure 2.4 Figure 2.5 Straight-Through Cables Schematic Crossover Cables Schematic The following figures show the 10,100, and 1000 Ethernet RJ‐45 pin outs. -
Page 12: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LNP-1600G Series User Manual V1.1 2.7 Wiring the Power Inputs Please follow the steps below to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.7. -
Page 13: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNP-1600G Series User Manual V1.1 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please refer to Figure 3.1 to learn how to install the DIN-Rail on the switch. -
Page 14: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LNP-1600G Series User Manual V1.1 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. -
Page 15: Hardware Installation
LNP-1600G Series User Manual V1.1 4. Hardware Installation Installation Steps This section will explain how to install Antaira Technologies’ LNP-1600G(-T): Installation Steps 1. Unpack the industrial Ethernet switch from the original packing box. 2. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch. -
Page 16: Network Applications
Antaira Technologies - Industrial Ethernet Switches LNP-1600G Series User Manual V1.1 5. Network Applications Figure 5.1 Industrial Ethernet Switch Application Reference... -
Page 17: Troubleshooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses, or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. •... -
Page 18: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNP-1600G Series User Manual V1.1 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies’ LNP-1600G series: IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u 100Base-Tx, 100Base-Fx, Fast Ethernet Standards IEEE 802.3ab 1000Base-Tx Gigabit Ethernet IEEE 802.3af/at... - Page 19 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
