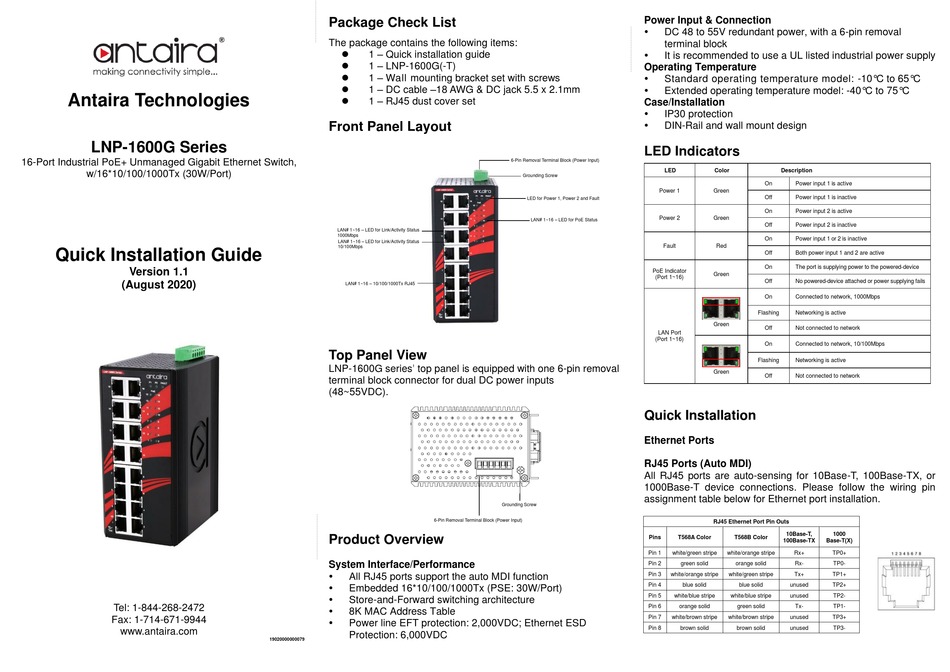

ANTAIRA LNP-1600G Series Quick Installation Manual

Antaira Technologies
LNP-1600G Series

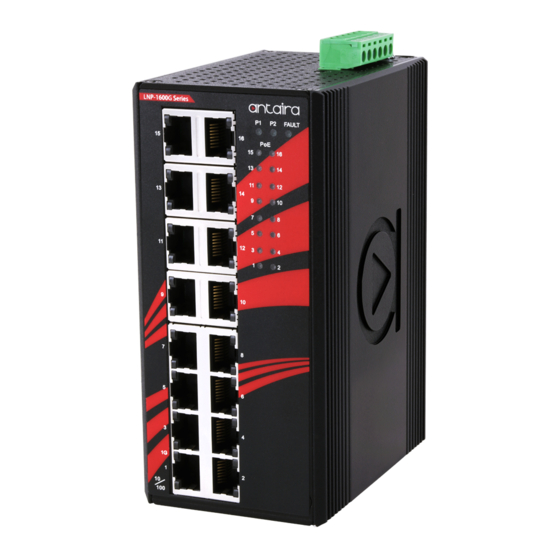

16-Port Industrial PoE+ Unmanaged Gigabit Ethernet Switch,
w/16*10/100/1000Tx (30W/Port)
Quick Installation Guide
Version 1.1
(August 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LNP-1600G(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set

Front Panel Layout

LAN# 1~16 – LED for Link/Activity Status
1000Mbps
LAN# 1~16 – LED for Link/Activity Status
10/100Mbps
LAN# 1~16 – 10/100/1000Tx RJ45
Top Panel View
LNP-1600G series' top panel is equipped with one 6-pin removal
terminal block connector for dual DC power inputs
(48~55VDC).
6-Pin Removal Terminal Block (Power Input)

Product Overview

System Interface/Performance


All RJ45 ports support the auto MDI function

Embedded 16*10/100/1000Tx (PSE: 30W/Port)

Store-and-Forward switching architecture

8K MAC Address Table

Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000079
Power Input & Connection

DC 48 to 55V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply

Operating Temperature


Standard operating temperature model: -10°C to 65°C

Extended operating temperature model: -40°C to 75°C

Case/Installation


IP30 protection

DIN-Rail and wall mount design

LED Indicators

6-Pin Removal Terminal Block (Power Input)
LED
Grounding Screw
Power 1
LED for Power 1, Power 2 and Fault
Power 2
LAN# 1~16 – LED for PoE Status
Fault
PoE Indicator
(Port 1~16)
LAN Port
(Port 1~16)

Quick Installation

Ethernet Ports

RJ45 Ports (Auto MDI)

All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
Grounding Screw
Pins T568A Color
Pin 1 white/green stripe
Pin 2 green solid
Pin 3 white/orange stripe
Pin 4
Pin 5 white/blue stripe
Pin 6 orange solid
Pin 7 white/brown stripe
Pin 8 brown solid
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
On Power input 1 or 2 is inactive
Red
Off Both power input 1 and 2 are active
On The port is supplying power to the powered-device
Green
Off No powered-device attached or power supplying fails
On Connected to network, 1000Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network, 10/100Mbps
Flashing Networking is active
Green
Off Not connected to network

RJ45 Ethernet Port Pin Outs

10Base-T, 1000
T568B Color
100Base-TX Base-T(X)
white/orange stripe Rx+ TP0+
orange solid Rx- TP0-
white/green stripe Tx+ TP1+
blue solid blue solid unused TP2+
white/blue stripe unused TP2-
green solid Tx- TP1-
white/brown stripe unused TP3+
brown solid unused TP3-
