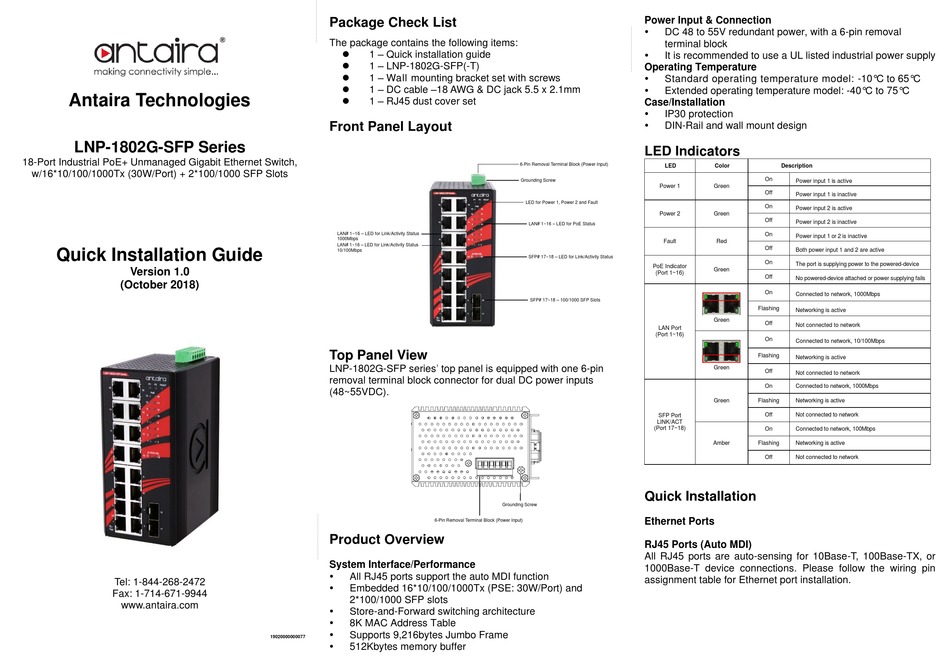

ANTAIRA LNP-1802G-SFP Series Quick Installation Manual

Antaira Technologies

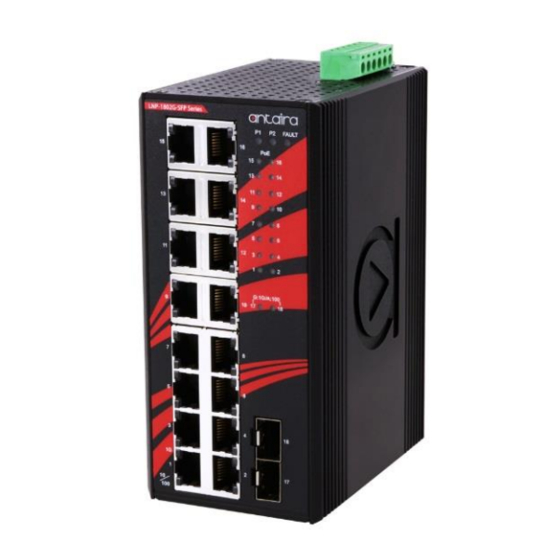

LNP-1802G-SFP Series
18-Port Industrial PoE+ Unmanaged Gigabit Ethernet Switch,
w/16*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slots
Quick Installation Guide
Version 1.0
(October 2018)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LNP-1802G-SFP(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set
Front Panel Layout
LAN# 1~16 – LED for Link/Activity Status
1000Mbps
LAN# 1~16 – LED for Link/Activity Status
10/100Mbps
Top Panel View
LNP-1802G-SFP series' top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(48~55VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI function

Embedded 16*10/100/1000Tx (PSE: 30W/Port) and
2*100/1000 SFP slots

Store-and-Forward switching architecture

8K MAC Address Table

Supports 9,216bytes Jumbo Frame
19020000000077

512Kbytes memory buffer
Power Input & Connection

DC 48 to 55V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 65°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
LED Indicators
6-Pin Removal Terminal Block (Power Input)
LED
Grounding Screw
Power 1
LED for Power 1, Power 2 and Fault
Power 2
LAN# 1~16 – LED for PoE Status
Fault
SFP# 17~18 – LED for Link/Activity Status
PoE Indicator
(Port 1~16)
SFP# 17~18 – 100/1000 SFP Slots
LAN Port
(Port 1~16)
SFP Port
LINK/ACT
(Port 17~18)
Quick Installation
Grounding Screw
Ethernet Ports
RJ45 Ports (Auto MDI)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-T device connections. Please follow the wiring pin
assignment table for Ethernet port installation.
Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
On
Power input 1 or 2 is inactive
Red
Off
Both power input 1 and 2 are active
On
The port is supplying power to the powered-device
Green
Off
No powered-device attached or power supplying fails
On
Connected to network, 1000Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
Connected to network, 10/100Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On Connected to network, 1000Mbps
Green Flashing Networking is active
Off Not connected to network
On Connected to network, 100Mbps
Amber Flashing Networking is active
Off Not connected to network
