- Page 1 SPS-4000 4K60 HDMI Presentation Switcher with 4 Inputs and 2 Outputs USER MANUAL Designed and Manufactured in the USA 1-888-994-7427 www.smartavi.com...
-
Page 2: Table Of Contents
OVERVIEW TECHNICAL SPECIFICATIONS____________________________________________________________________________ WHAT’S IN THE BOX?_____________________________________________________________________________________ FRONT AND BACK________________________________________________________________________________________ INSTALLATION_____________________________________________________________________________________________ INITIAL SETUP______________________________________________________________________________________________ ABSOLUTE MOUSE MODE KM SWITCHING____________________________________________________________ RELATIVE MOUSE MODE KM SWITCHING_____________________________________________________________ SYSTEM OPERATION_____________________________________________________________________________________ TROUBLESHOOTING_____________________________________________________________________________________ TECHNICAL SUPPORT____________________________________________________________________________________ LIMITED WARRANTY STATEMENT______________________________________________________________________ 4K60 HDMI Presentation Switcher with 4 Inputs and 2 Outputs... -
Page 3: Technical Specifications
Technical Specifications VIDEO Host Interface (4) HDMI 19-pin (female) User Console Interface (2) HDMI 19-pin (female) CONTROL Front Panel Buttons (SELECT audio/video source) RS232 Via Control @ 115200 bps Web GUI Via LAN OTHER Power Adapter External 100-240 VAC/12VDC3A @ 24W Dimensions 12.57”... -
Page 4: What's In The Box

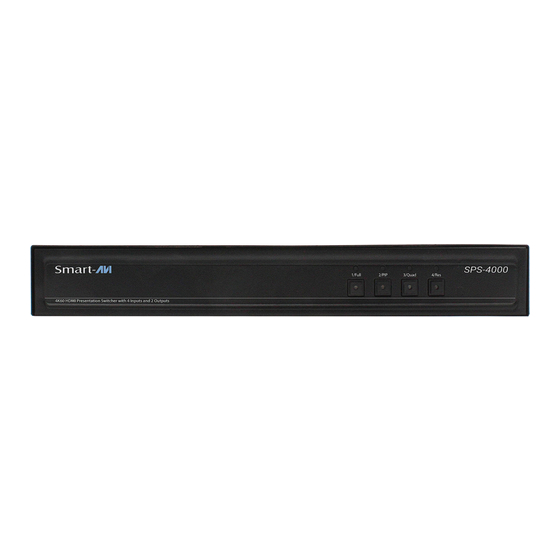

SPS-4000 4K60 HDMI Presentation Switcher with 4 Inputs and 2 Outputs PS12VDC3A 12VDC 3A (minimum) power adapter with center-pin positive polarity User Manual FRONT AND BACK SPS-4000 Back SPS-4000 Front 4K60 HDMI Presentation Switcher with 4 Inputs and 2 Outputs... -
Page 5: Installation
3. Connect two monitors to the HDMI OUT console ports of the unit using a HDMI cable. 4. Power on the SPS-4000 by connecting a 12VDC power supply to power connector. 5. Optional: Connect a CatX cable from the LAN port on the SPS-4000 to a local network for control. 6. Turn on all the computers. - Page 6 System operation EDID Learn The SPS-4000 has 2 preset EDIDs that can be triggered from the front panel. The EDIDs are labeled as follows: • IPG - 1080p (EDID for 1080p) • IPG - 4K (EDID for 3840 x 2160) The EDIDs can be invoked using the following commands on the front panel: •...
- Page 7 HyperTerminal or an alternate terminal application. The settings for the connection are as follows: Baudrate 115200; Data Bits 8; Parity None; Stop Bits 1; Flow Control None. Once you have connected to the SPS-4000 via Serial, you will see the SPS-4000 information when the device starts up.
- Page 8 The SPS-4000 features one monitor output; the standard KVM Switch video output that display the selected computer to be controlled via the USB Keyboard/mouse. the other is a Preview screen which allows you to view up to all four video inputs connected to the unit. Connections to video sources are managed via HDMI connectors.
-
Page 9: Initial Setup
INITIAL SETUP After all devices are connected to the SPS-4000, the user must choose a display topology configuration and display mode. By default, the SPS-4000 is configured to a topology with four screens arranged horizontally starting with Port 1 on the left. -
Page 10: Troubleshooting
Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •... -
Page 11: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 12 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
