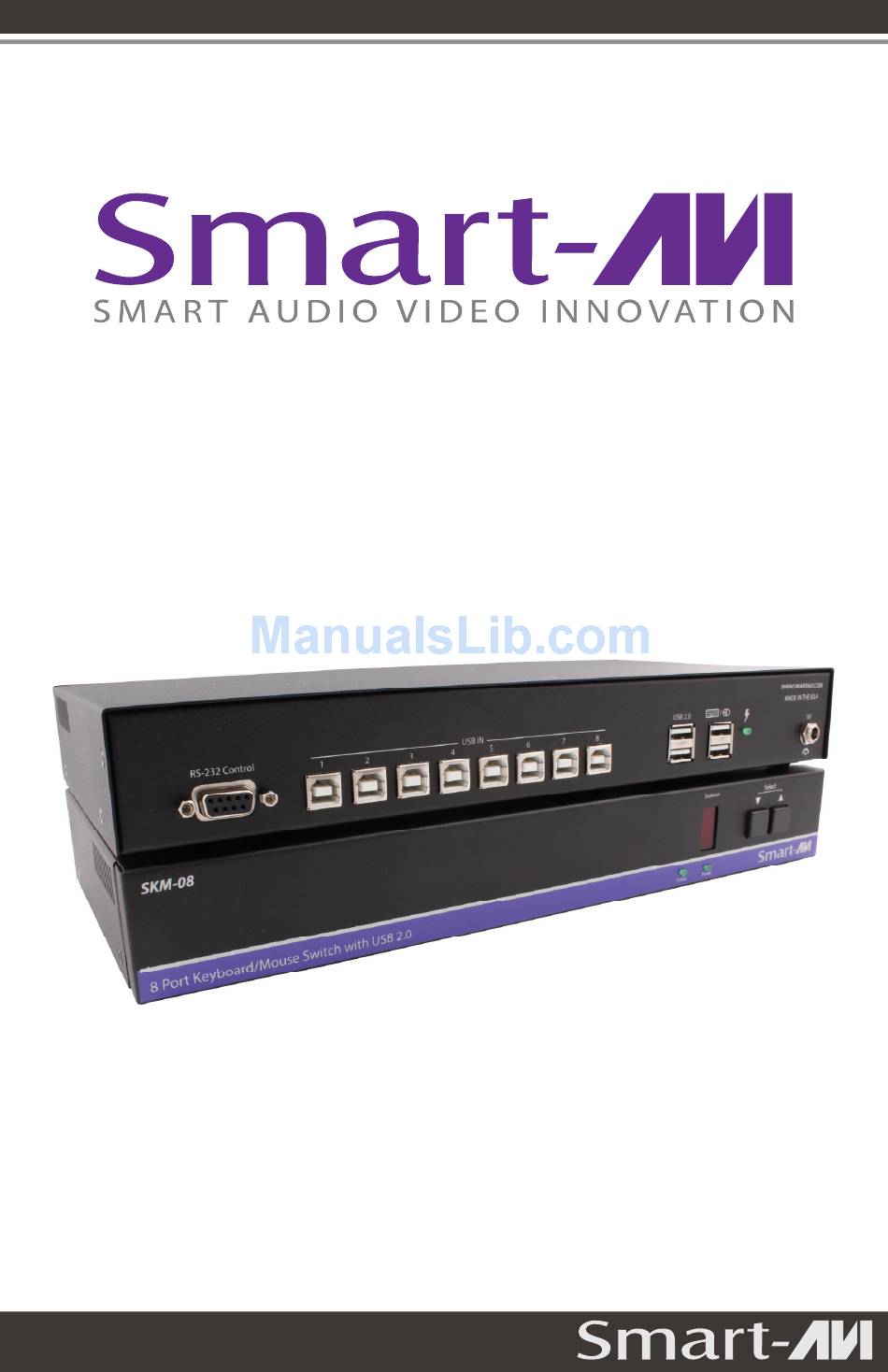

- Page 1 SKM-08 8-Port Keyboard and Mouse Switch with USB 2.0 Sharing Manage keyboard & mouse operations on four computers over multiple displays USER MANUAL (rev 2.0)
- Page 2 This page intentionally left blank SKM-08 © 2014 SmartAVI, Inc.
-
Page 3: Technical Specifications
32-131 °F (0-55 °C) Storage Temp. -4-185 °F (-20-85 °C) Humidity Up to 95% Emulation Keyboard and Mouse WHAT’S IN THE BOX? PART NO. DESCRIPTION SKM-08S SKM-08 (8-Port Keyboard and Mouse Switch) PS5VDC2A 5VDC4A Power Supply User Manual SKM-08 © 2014 SmartAVI, Inc. -
Page 4: Application Diagram
APPLICATION DIAGRAM SKM-08 REAR SKM-08 FRONT SKM-08 © 2014 SmartAVI, Inc. - Page 5 1. Ensure that power is disconnected from SKM-08. 2. Use a USB cable (Type-A to Type-B) to connect a USB port on the computer to the respective port of the SKM-08. Do this for each of the computers. 3. Optionally connect RS-232 for control functions.
-
Page 6: Single-Head Mode Km Switching
Simply press the scroll wheel twice and then move the mouse in the direction of the channel you desire to switch. *This feature works for both Single-head and Multi-head dis- play modes. SKM-08 © 2014 SmartAVI, Inc. -
Page 7: Front Panel Control
Hotkey Commands The Hotkey command is a keyboard sequence used to trigger an action on the SKM-08 through the use of the keyboard con- nected on the USB port of the SKM-08. To activate the hotkey sequence, press the CTRL key twice and then enter the de- sired hotkey commands. -
Page 8: Display Topology Configuration
DISPLAY TOPOLOGY CONFIGURATION The SKM-08 has a configurable display topology configuration that can be easily activated through keyboard hotkeys or through RS-232 commands. No software or drivers required for configuring the display topology. Hotkey Command: “ctrl + ctrl + h h h h + 8 8 8 8 + ENTER”... -
Page 9: Independent Usb 2.0 Switching
INDEPENDENT USB 2.0 SWITCHING The USB 2.0 Hub on the SKM-08 may be used for USB 2.0 devices such as printers, web cams, flash drives, and so on. Devices plugged in to the USB 2.0 hub of SKM-08 may be... - Page 10 NOTES: SKM-08 © 2014 SmartAVI, Inc.
- Page 11 NOTES: SKM-08 © 2014 SmartAVI, Inc.
- Page 12 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
