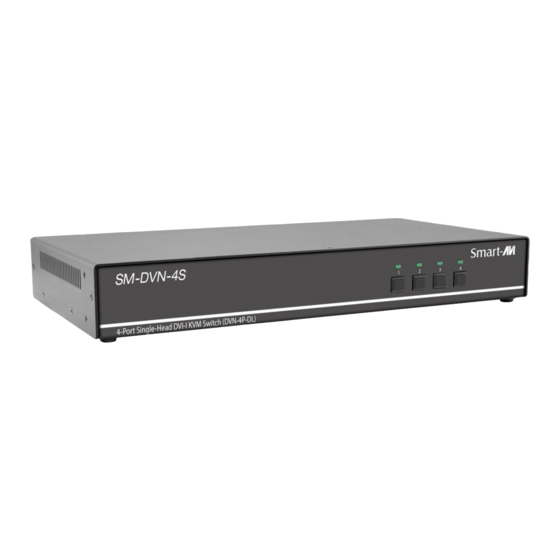

Advanced 2/4/8/16-Port DVI-I KVM Switch
USER MANUAL
SM-DVN-2S
SM-DVN-2D
SM-DVN-4S
SM-DVN-4D
SM-DVN-4Q
SM-DVN-8S
SM-DVN-8D
SM-DVN-16S 16-Port Single-Head DVI-I KVM Switch
SM-DVN
2-Port Single-Head DVI-I KVM Switch
2-Port Dual-Head DVI-I KVM Switch
4-Port Single-Head DVI-I KVM Switch
4-Port Dual-Head DVI-I KVM Switch
4-Port Quad-Head DVI-I KVM Switch
8-Port Single-Head DVI-I KVM Switch
8-Port Dual-Head DVI-I KVM Switch
1-800-284-2131
www.smartavi.com
Advanced 2/4/8/16 DVI-I KVM Switch
series
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMART-AVI SM-DVN Series
Summary of Contents for SMART-AVI SM-DVN Series
- Page 1 SM-DVN series Advanced 2/4/8/16-Port DVI-I KVM Switch USER MANUAL SM-DVN-2S 2-Port Single-Head DVI-I KVM Switch SM-DVN-2D 2-Port Dual-Head DVI-I KVM Switch SM-DVN-4S 4-Port Single-Head DVI-I KVM Switch SM-DVN-4D 4-Port Dual-Head DVI-I KVM Switch SM-DVN-4Q 4-Port Quad-Head DVI-I KVM Switch SM-DVN-8S 8-Port Single-Head DVI-I KVM Switch SM-DVN-8D 8-Port Dual-Head DVI-I KVM Switch...
-
Page 2: Table Of Contents
Table of content TECHNICAL SPECIFICATIONS_____________________________________________________________ 3 WHAT’S IN THE BOX?_____________________________________________________________________ 4 SM-DVN FRONT AND REAR_______________________________________________________________ 4 INSTALLATION____________________________________________________________________________ 5-8 LED’s BEHAVIOR__________________________________________________________________________ 11 SYSTEM OPERATION______________________________________________________________________ 12 TROUBLESHOOTING______________________________________________________________________ 12 TECHNICAL SUPPORT_____________________________________________________________________ 12 LIMITED WARRANTY STATEMENT________________________________________________________ 13 Advanced 2/4/8/16 DVI-I KVM Switch... -
Page 3: Technical Specifications
Technical Specifications VIDEO Format DVI-I Dual Link SM-DVN-2S (2) DVI-I 29-pin (female) SM-DVN-2D / SM-DVN-4S (4) DVI-I 29-pin (female) Host Interface SM-DVN-4D / SM-DVN-8S (8) DVI-I 29-pin (female) SM-DVN-4Q / SM-DVN-8D / SM-DVN-16S (16) DVI-I 29-pin (female) SM-DVN-2S / SM-DVN-4S / SM-DVN-8S / (1) DVI-I 29-pin (female) SM-DVN-16S User Console... -
Page 4: What's In The Box
What’s in the box? SM-DVN Unit 2/4/8/16-port DVI-I KVM Switch PS12VDC2A or 12V DC, 2A (minimum) power adapter with center-pin positive polarity. Quad head models PS12VDC3A require a 12V DC 3A (minimum) power adapter with center-pin positive polarity. User Manual SM-DVN-4S rear SM-DVN-4S front SM-DVN-8S rear... -
Page 5: Installation
installation Single-Head Units: 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use a DVI cable to connect the DVI output port from each computer to the corresponding DVI-I IN ports of the unit. 3. - Page 6 Installation (continued) Multi-Head Units: 1. Ensure that power is turned off or disconnected from the unit and the computers. Use DVI cables to connect the DVI output ports of each computer to the corresponding DVI-I IN ports of the unit. For example, if using SM-DVN-4Q, the four DVI ports of one computer must all be connected to one channel.
- Page 7 Installation (continued) SM-DVN-4Q Shown SM-DVN-2S Shown Advanced 2/4/8/16 DVI-I KVM Switch...
- Page 8 Installation (continued) EDID Learn: The KVM is designed to learn the connected monitor’s EDID upon power up. In the event of connecting a new monitor to the KVM, a power recycle is required. The KVM will indicate to the user the EDID learn process by flashing the front panel’s LEDs. Port one green and push button blue LEDs will both begin to flash for about 10 seconds.
- Page 9 System operation There are three ways to control the SM-DVN: Keyboard Hotkeys, RS-232 Serial Commands, and Front Panel Buttons. All modes of control will allow the user the set their desired configurations. front panel control The front panel buttons will function as the typical secure KVM switches. To switch to an input port, simply push the desired input button on the front-panel of the KVM.
- Page 10 Custom hotkey triggers Users are able to customize the keys that trigger Hotkeys. The default trigger for hot key function on the Keyboard is Ctrl +Ctrl. The trigger function can be used to change to double Ctrl, Shift, or Scroll Lock.
-
Page 11: Led's Behavior
Led’s behavior User Console Interface – Display LED: IMPORTANT! Status Description Monitor is not connected If all Front Panel LED’s are on Monitor is connected and not flashing, the POWER Flashing EDID problem – Learn EDID to fix the problem UP SELF TEST has failed and all functions are disabled. -
Page 12: System Operation
Troubleshooting No Power Make sure that the power adapter is securely connected to the power connector of the unit. Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. Replace the power supply. No Video ... -
Page 13: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. - Page 14 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
