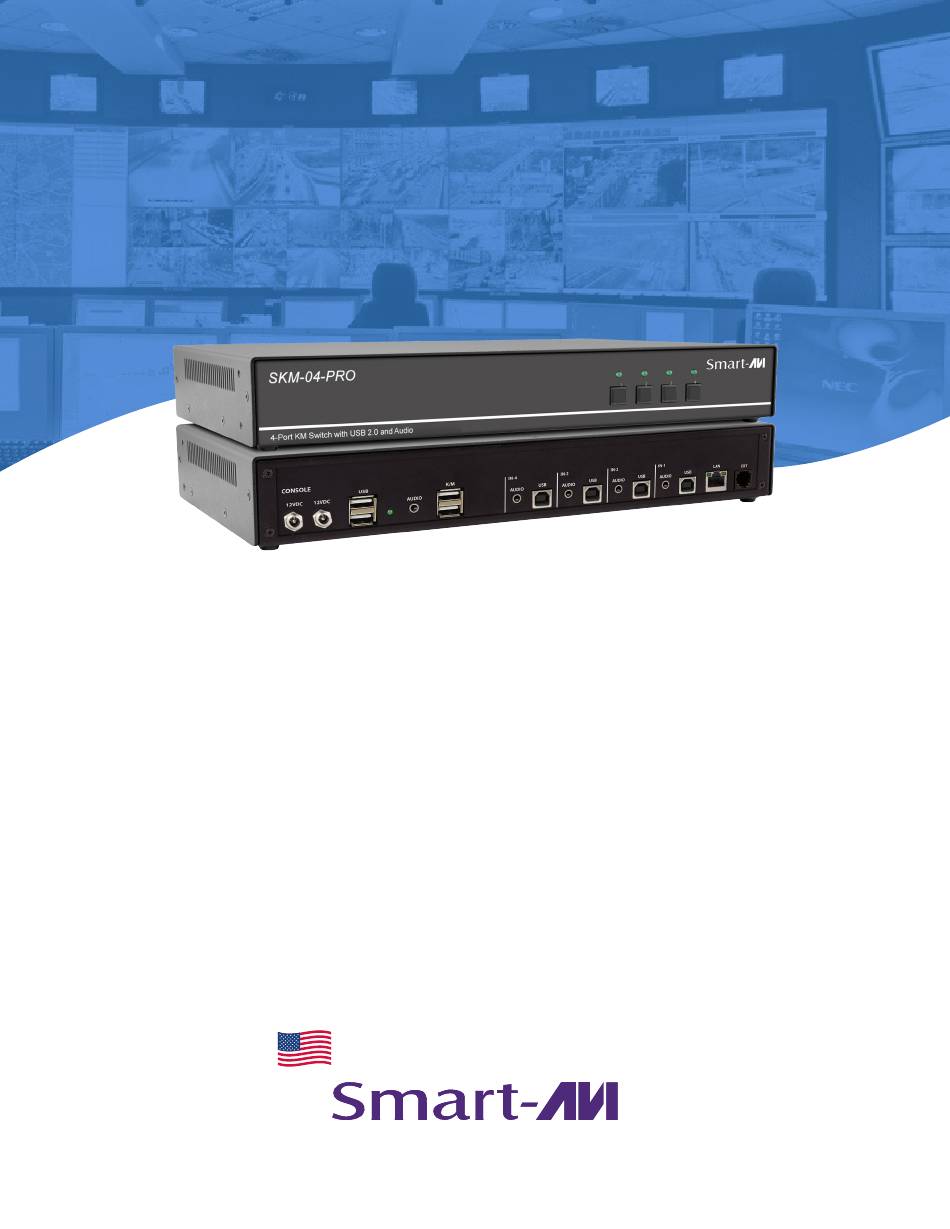

- Page 1 SKM-04-PRO 4-Port KM Switch with AUDIO AND USB 2.0 USER MANUAL Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
-
Page 2: Table Of Contents
OVERVIEW TECHNICAL SPECIFICATIONS_________________________________________________________________ WHAT’S IN THE BOX?_________________________________________________________________________ FRONT AND BACK___________________________________________________________________________ INSTALLATION_______________________________________________________________________________ INITIAL SETUP________________________________________________________________________________ SINGLE-HEAD MODE KM SWITCHING________________________________________________________ MULTI-HEAD MODE KM SWITCHING_________________________________________________________ HOTKEY COMMANDS________________________________________________________________________ DISPLAY TOPOLOGY CONFIGURATION_______________________________________________________ LIMIT INPUT PORTS CONFIGURATION________________________________________________________ SYSTEM OPERATION_________________________________________________________________________ FRONT PANEL CONTROL_____________________________________________________________________ HOTKEY AND RS232 SERIAL CONTROL_______________________________________________________ RESOLUTION AND MOUSE CONFIGURATION_________________________________________________ CUSTOM HOTKEY TRIGGERS_________________________________________________________________ LED’S BEHAVIOR______________________________________________________________________________... -
Page 3: Technical Specifications
Technical Specifications Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub Input Interface (4) USB Type B (2) USB 1.1 Type A for KM Devices; Output Interface (2) USB 2.0 Type A Transparent AUDIO Input Interface (4) 3.5 mm Stereo Audio Output Interface (1) 3.5 mm Stereo Audio CONTROL... -
Page 4: What's In The Box

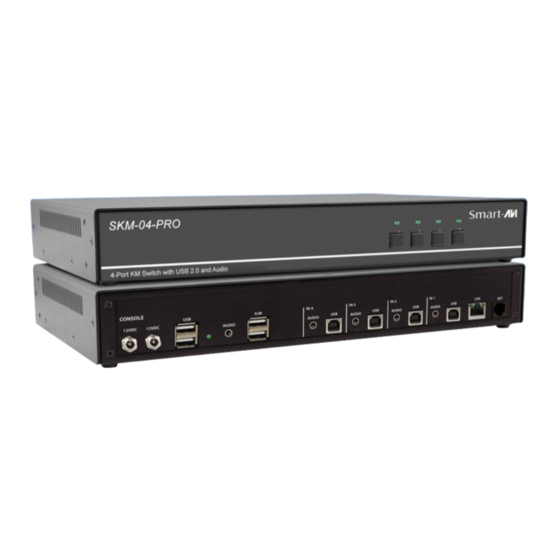

PART NO. Q-TY DESCRIPTION SKM-04-PRO 4-Port KM Switch with Audio and USB 2.0 PS12VDC2A 12VDC 2A (minimum) power adapter with center-pin positive polarity. User Manual FRONT AND BACK SKM-04-PRO Back SKM-04-PRO Front 4-Port KM Switch with USB 2.0 Support and Audio... -
Page 5: Installation
INSTALLATION 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB ports of the unit. 3. -
Page 6: Initial Setup
INITIAL SETUP After all devices are connected to the SKM-04-PRO, the user must choose a display topology configuration and display mode. By default, the SKM-04-PRO is configured to a topology with four screens arranged horizontally starting with Port 1 on the left. -
Page 7: Hotkey Commands
Selected port Hotkey Commands A Hotkey command is a keyboard sequence used to trigger an action on the SKM-04-PRO via the keyboard connected to the USB port of the SKM-04-PRO. To activate the hotkey sequence, press the CTRL key twice and then enter the desired hotkey commands. - Page 8 System operation (continued) RS-232 Serial Control The SKM-04-PRO may also be controlled via RS-232 commands. To use these commands, you must use HyperTerminal or an alternate terminal application. The settings for the connection are as follows: Baudrate 115200; Data Bits 8; Parity None; Stop Bits 1; Flow Control None.
-
Page 9: Display Topology Configuration
(4) Hotkey Command: “CTRL + CTRL + H + 1 + ENTER” Limit Input Ports Configuration The SKM-04-PRO allows the user to shut off input from specific connected computers without the need to disconnect them from the switch. Note: Limit Input Ports commands reset the Display Topology configuration. -
Page 10: Resolution And Mouse Configuration
System operation (continued) Resolution and Mouse Configuration COMMAND DESCRIPTION RS-232 COMMAND Switch resolution //ce [SPACE] [SKM #] [SPACE] [resolution #] [ENTER] Mouse control //mm [SPACE] [resolution #] [SPACE] [x #] [y #] [ENTER] Mouse default position //rl [ENTER] / /CE [SPACE] [SKM #] [SPACE] [resolution #] Where SKM channel can be set 1-4 Where Resolution number is the following: 1. -
Page 11: Troubleshooting
Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •... -
Page 12: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 13 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
