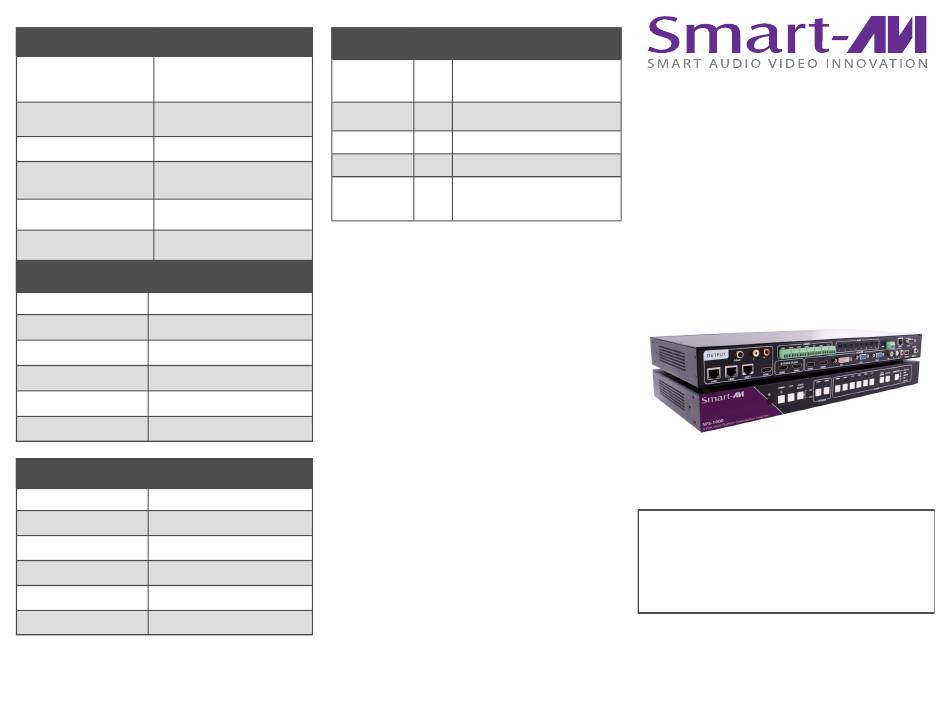

SMART-AVI SPS-1000 Quick Start Manual

TECHNICAL SPECIFICATIONS

GENERAL

(4) HDMI, (2) VGA, (1) DVI, (1)
Video Input
Composite
(1) RS-232, (1) RJ-45, (1) IR
Control
3.5mm
Audio Input (7) 3-Pin Phoenix Connector
Video Output HDMI (local), RJ-45 (remote)
Audio Output RCA, SPDIF Digital Coaxial
Video Resolutions Up to 4K (3480x2160 @ 30Hz)

PHYSICAL

17.25"W x 1.9"H x 7.85"D
Dimensions
5 lbs.
Weight
Operating Temp. 0° - 40° C
Storage Temp. -20° - 60° C
Relative Humidity 20%-90% (no condensation)
14W (max)/1.8W (standby)
Power Consumption
SPS-RX
4"W x 1"H x 4"D
Dimensions
0.8 lbs.
Weight
Operating Temp. 0° - 40° C
Storage Temp. -20° - 60° C
Relative Humidity 20%-90% (no condensation)
PS5VDC or POE (Ethernet)
Power Consumption
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
8-Port Multi-Platform
SPS-1000-S 1
Presentation Switcher
SPS-RXS 1 Receiver over CAT5e/6/7
PS12VDC 1 Power Supply / Adapter
PS5VDC 1 Power Supply / Adapter
Quick Start
1 Installation Setup/Part listing
Guide

NOTICE

The information contained in this
document is subject to change without
notice. SmartAVI makes no warranty of
any kind with regard to this material,
including but not limited to, implied
warranties of merchantability and fitness
for particular purpose.
SmartAVI will not be liable for errors
contained herein or for incidental or
consequential damages in connection
with the furnishing, performance or use
of this material.
No part of this document may be
photocopied, reproduced, or translated
into another language without prior
written consent from SmartAVI
Technologies, Inc.
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

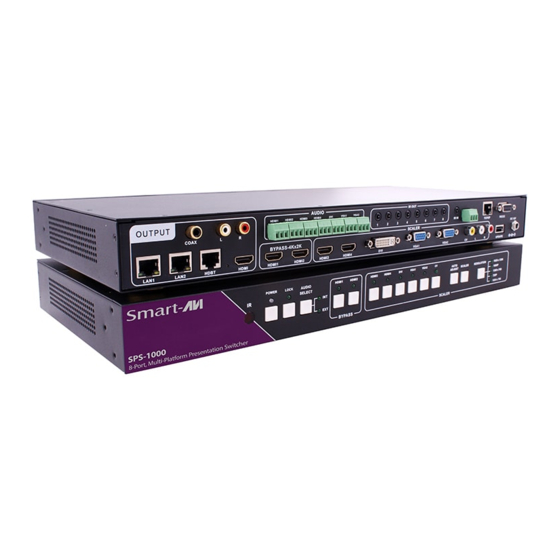

SPS-1000
8-Port HDMI, DVI, VGA, and Composite
Switch with Integrated Scaler
4-port HDMI, 2-port VGA, DVI and
composite video switch
with IR and stereo audio support
(325 foot signal extension)

Quick Start Guide
