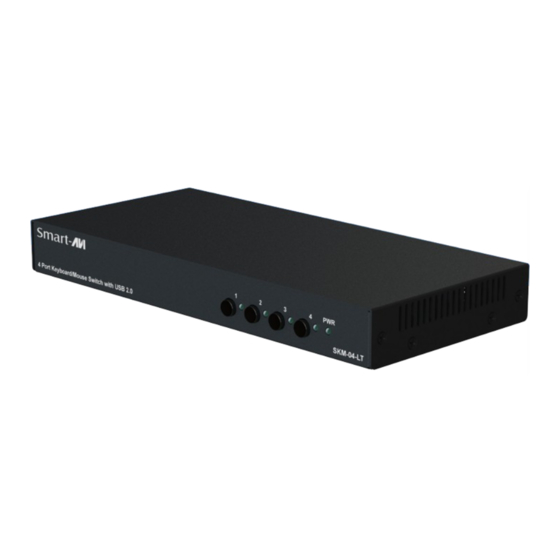

- Page 1 SKM-04-LT 4-Port KM Switch with USB 2.0 Sharing USER MANUAL Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
-
Page 2: Table Of Contents
OVERVIEW TECHNICAL SPECIFICATIONS_________________________________________________________________ WHAT’S IN THE BOX?_________________________________________________________________________ FRONT AND BACK___________________________________________________________________________ INSTALLATION_______________________________________________________________________________ INITIAL SETUP________________________________________________________________________________ SYSTEM OPERATION_________________________________________________________________________ TROUBLESHOOTING_________________________________________________________________________ TECHNICAL SUPPORT________________________________________________________________________ LIMITED WARRANTY STATEMENT____________________________________________________________ 4-Port KM Switch with USB 2.0 Sharing... -
Page 3: Technical Specifications
Technical Specifications Signal Type USB 2.0, 1.1, and 1.0 w/ internal hub CPU Ports (4) USB Type B (female) (2) USB Type-A for keyboard and mouse connection only; User Control Interface (2) USB Type-A for USB 2.0 transparent AUDIO Input Interface (4) 3.5 mm Stereo Audio Output Interface (1) 3.5 mm Stereo Audio... -
Page 4: What's In The Box
What’s in the box? PART NO. Q-TY DESCRIPTION SKM-04-LT 4-Port KM Switch with USB 2.0 Sharing PS5VDC3A 12VDC 3A (minimum) power adapter with center-pin positive polarity. User Manual FRONT AND BACK SKM-04-LT Back SKM-04-LT Front 4-Port KM Switch with USB 2.0 Sharing... -
Page 5: Installation
INSTALLATION 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB ports of the unit. 3. -
Page 6: Initial Setup
INITIAL SETUP After all devices are connected to the SKM-04-LT, the user must choose a display topology configuration and display mode. By default, the SKM-04-LT is configured to a topology with four screens arranged horizontally starting with Port 1 on the left. -
Page 7: System Operation
Selected port Hotkey Commands A Hotkey command is a keyboard sequence used to trigger an action on the SKM-04-LT via the keyboard connected to the USB port of the SKM-04-LT. To activate the hotkey sequence, press the CTRL key twice and then enter the desired hotkey commands. - Page 8 System operation (continued) RS-232 Serial Control The SKM-04-LT may also be controlled via RS-232 commands. To use these commands, you must use HyperTerminal or an alternate terminal application. The settings for the connection are as follows: Baudrate 115200; Data Bits 8; Parity None; Stop Bits 1; Flow Control None.
- Page 9 (4) Hotkey Command: “CTRL + CTRL + H + 1 + ENTER” Limit Input Ports Configuration The SKM-04-LT allows the user to shut off input from specific connected computers without the need to disconnect them from the switch. Note: Limit Input Ports commands reset the Display Topology configuration.
- Page 10 System operation (continued) Resolution and Mouse Configuration COMMAND DESCRIPTION RS-232 COMMAND Switch resolution //ce [SPACE] [SKM #] [SPACE] [resolution #] [ENTER] Mouse control //mm [SPACE] [resolution #] [SPACE] [x #] [y #] [ENTER] Mouse default position //rl [ENTER] / /CE [SPACE] [SKM #] [SPACE] [resolution #] Where SKM channel can be set 1-4 Where Resolution number is the following: 1.
-
Page 11: Troubleshooting
Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •... -
Page 12: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 13 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
