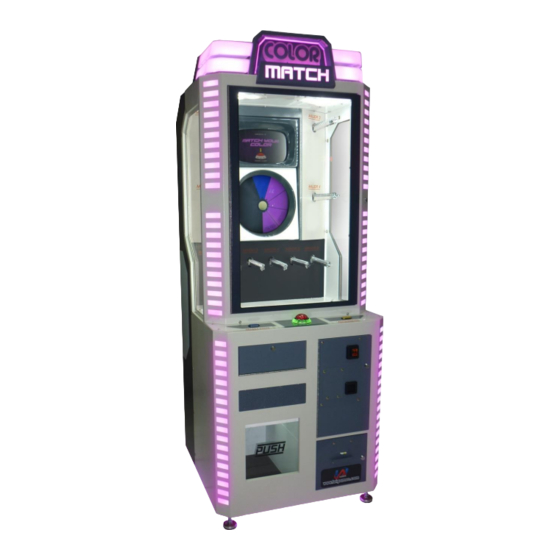

LAI Games COLOR MATCH CLUB Operator's Manual
  1. Manuals
  2. Brands
  3. LAI Games Manuals
  4. Arcade Game Machines
  5. COLOR MATCH CLUB
  6. Operator's manual

LAI Games COLOR MATCH CLUB Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATORS MANUAL
COLOR MATCH CLUB
V1.10 AND ABOVE
© LAI Games

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COLOR MATCH CLUB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LAI Games COLOR MATCH CLUB

Summary of Contents for LAI Games COLOR MATCH CLUB

  • Page 1 OPERATORS MANUAL COLOR MATCH CLUB V1.10 AND ABOVE © LAI Games...
  • Page 2 LAI Games Correspondence regarding this machine should be addressed to your closest LAI Games office, or LAI Games Distributor. For contact details, refer to the back page of this manual. © LAI Games Copyright Notice: Authorization is hereby provided to you to copy this manual in...
  • Page 3 Note LAI Games Dear Customer, Keep up to date with new software updates or Service Bulletins for this game. www.laigames.com Check our website at and click on Support, where you will find links to all the Bulletins and Software updates to keep your game in top working order.

  • Page 4: Table Of Contents

    Table of Contents SAFETY PRECAUTIONS ........................7 MACHINE INSTALLATION AND INSPECTION ..................8 INTRODUCTION ..........................9 DESCRIPTION ..........................9 PACKAGING ............................9 CONTENTS ............................. 9 SPECIFICATIONS ..........................9 DIMENSIONS..........................9 ELECTRIC SUPPLY ........................10 ASSEMBLY ..........................11 GAMEPLAY AND MODES ......................13 OBJECTIVE ..........................
  • Page 5 PRIZE ARM TESTS ........................21 ERRORS ............................22 CURRENT ERRORS ........................23 ERROR HISTORY ........................23 ERROR SETTINGS ........................23 HISTORY ............................24 MAJOR WIN HISTORY ....................... 24 MINOR WIN HISTORY ....................... 24 GAME HISTORY ........................24 SYSTEM SETTINGS........................25 DISPENSER TYPE ........................
  • Page 6 POWER INLET/MAINS SWITCH ....................32 POWER SUPPLY........................32 PRIZE ARMS ..........................32 MONITOR ..........................32 QUIXANT PC..........................32 FB182 QXT IO PCB ........................32 FB190 RGB CONTROLLER PCB ....................32 TICKET MECH/CAPSULE DISPENSER ..................32 LAMPS ............................33 COIN DOOR LAMPS (LED) ......................33 BUTTON LAMPS (LED) ......................

  • Page 7: Safety Precautions

    SAFETY PRECAUTIONS The following safety precautions and advisories are used throughout this manual and are defined as follows. * WARNING! * Disregarding this text could result in serious injury. * CAUTION! * Disregarding this text could result in damage to the machine. * NOTE! * Is an advisory text to hint or help understand.

  • Page 8: Machine Installation And Inspection

    MACHINE INSTALLATION AND INSPECTION When installing and inspecting Color Match Club, be very careful of the following points and pay attention to ensure that the players can enjoy the game safely.  Be sure to turn the power OFF before working on the machine.

  • Page 9: Introduction

    INTRODUCTION Congratulations on your purchase of Color Match Club by LAI Games. We hope you take the time to read this manual and learn about the many features and user-friendly adjustments that can be made to fine-tune the game for maximum earning potential.

  • Page 10: Electric Supply

    ELECTRIC SUPPLY The game can operate on a universal mains input voltage between 88-264VAC 50/60Hz single phase. The supply must be a three wire grounded supply. An adjustment screw is available for fine-tuning the output voltage. LOCATION REQUIREMENTS  Ambient temperature: 5C - 40C ...

  • Page 11: Assembly

    ASSEMBLY TICKET MECH INSTALLATION 1. Remove the blank ticket door. 2. Install the ticket door and ticket holder. Lock Nut M6 (2X) Busing Nylon (2x) Nut Hex M6x20 (2x) Page | 11...
  • Page 12 CAPSULE DISPENSER INSTALLATION 1. Remove the wooden lower back panel and install capsule dispenser assembly. Nut M4 (4x) 2. Connect DC motor and sensor connectors. CB Bolt M5x30 3. Reinstall wooden lower back panel. + Nut M5 Nut M4 (2x) Page | 12...

  • Page 13: Gameplay And Modes

    PLAY MODE Color Match Club has two play modes. The standard Coin Play mode, where a coin or coins are inserted, or Free Play mode, where no coins are necessary.

  • Page 14: Operation

    OPERATION OPERATOR MENU GUIDE  MAIN MENU o Load Prizes o Game Settings  Coin Settings  Bonus Credits  Minor Prize  Major Prize  Mercy Prize  Free Play  Sound Settings o Audits o Input and Output Tests ...

  • Page 15: Prize Loading

    PRIZE LOADING USER INTERFACE Major prize arms (1 to 4) Green indicates loaded, red indicates empty Minor prize arms (1 to 6) Green indicates loaded, red indicates empty The white arrow points to the currently selected object Ticket or capsule dispenser (optional) Green indicates loaded, red indicates empty PRIZE ARMS To load the prize arms, follow the instructions below.

  • Page 16: Ticket / Capsule Dispenser

    MINOR PRIZE GUIDELINES When running on minor prize arms, LAI recommends that the below guidelines for prize dimensions are followed, to ensure that prizes are vended correctly. Minor prize arm coils have a tight pitch to ensure that they can hold enough prizes to get through a busy week with a standard minor prize collection percentage, and can be filled to capacity.

  • Page 17: Bonus Credits

    BONUS CREDITS  Level One (Default: Off, Adjustable: On/Off) Defines if the first level of bonus credits is active or not. o No. of Coins: This sets the number of coins that need to be inserted into coin mechanism 1 to reach the bonus credit level 1. o Bonus Credits: This sets the number of bonus credits that are given when credit level 1 is reached.

  • Page 18: Major Prize Settings

    MAJOR PRIZE SETTINGS  Major Prize Type (Default: Major Prize Arm, Adjustable: Major Prize Arm/ Ticket/ Coupon/Point/ Call Attendant) The type of prize won from a major prize win. NOTE: Setting the prize type to coupons or points will still pay out tickets, but the terminology used in game will change. ...

  • Page 19: Free Play Settings

    FREE PLAY SETTINGS  Free Play Mode (Default: Off, Adjustable: On/Off) Defines if the game is running in free play mode.  Vend Prizes (Default: Off, Adjustable: On/Off) Defines if the game vends prizes when in free play mode. SOUND SETTINGS ...
  • Page 20 7. Minor AGW The average number of games played for every minor prize won since the audits were last cleared 8. Major Prize Wins The total number of major prize wins since the audits were last cleared 9. Minor Prize Wins The total number of minor prize wins since the audits were last cleared 10.

  • Page 21: Input And Output Tests

    INPUT AND OUTPUT TESTS Input and Output Tests can be accessed from the main menu of the operator menu. Use the blue UP and DOWN buttons to scroll to the input and output tests button and press the red TEST button to enter input and output tests.

  • Page 22: Errors

    ERRORS The top screen of the operator menu will alert you immediately if there are any active errors. The bar along the top of the screen will be red if there are errors present or green if there are no errors. Errors can be accessed from the main menu of the operator menu.

  • Page 23: Current Errors

    ERROR SETTINGS There are a number of ways the Color Match Club cabinet can notify you that there is an error with the machine. These can be switched on or off in the operator menu by entering Errors and then Error Settings.

  • Page 24: History

    HISTORY History can be accessed from the main menu of the operator menu. Use the blue UP and DOWN buttons to scroll to the history button and press the red TEST button to enter the history menu.  Use the blue UP and DOWN buttons to scroll through the history records types, then press the red TEST button to enter a history record.

  • Page 25: System Settings

    This setting should only be used if you are installing software on a different Color Match cabinet type. For Color Match Club, this setting should always read Color Match Club. For this setting change to take effect, the apply button must be used. Pressing apply will restart the game.

  • Page 26: Creating A Bootable Usb

    CREATING A BOOTABLE USB THINGS YOU WILL NEED  A completely empty USB that has a capacity of at least 4GB.  NOTE: Everything on this USB will be COMPLETELY ERASED. Ensure that there are no important files on it. ...

  • Page 27: Updating A Cabinet Using A Bootable Usb

    UPDATING A CABINET USING A BOOTABLE USB 1. Ensure that the cabinet is turned off. 2. Plug in the USB. Ensure that no other USB’s are plugged in. 3. Switch on the cabinet. 4. The operating system should boot straight into the USB, bringing up a black box that will display progress.

  • Page 28: Section A: Service Instructions

    SECTION A: SERVICE INSTRUCTIONS *NOTE* Be sure to read the following carefully before servicing the machine. LOCATING AND ACCESSING PARTS The following pictures identify the location of the main serviceable items. CABINET FRONT Major Prize Arm 4x Header Display Player Panel Monitor 23”...

  • Page 29: Cabinet Rear

    CABINET REAR FB172 Audio Amplifier FB200 1-shot PCB Quixant computer FB190 RGB Controller PCB FB182 IO PCB FB89 Prize Sensor PCB Capsule Dispenser (optional) Power Supply Page | 29...

  • Page 30: Player Panel

    PLAYER PANEL Select Start Take Win Button Button Button OPERATOR PANEL - SERVICE CONTROLS Up button Test / Enter Service / Back button Counters 5x button Volume knob Down button Page | 30...

  • Page 31: Monitor Controls

    MONITOR CONTROLS Auto Button Menu Button Select Button Down Button Up Button Power Button Power LED PARTS DESCRIPTION COIN MECHANISMS/DBA The coin mechanisms are located inside the coin door, at the lower front-right of the machine cabinet. Two inputs can allow for the coin mechanisms and DBA to be connected. When installing a mains powered DBA, ensure the mains harness is connected at the rear of the cabinet.

  • Page 32: Power Inlet/Mains Switch

    POWER INLET/MAINS SWITCH The power inlet is a standard IEC inlet socket with mains power switch, located at the rear of the machine. There is a main power fuse internal in this IEC socket. The fuse should be a M205, 250VAC, POWER SUPPLY The power supply is located at the back of the cabinet, and is accessed via the rear service panel of the machine.

  • Page 33: Lamps

    LAMPS * WARNING * Always turn OFF mains power and unplug the game, before replacing any lamps. Always replace the lamps with the same or equivalent size, wattage and voltage. COIN DOOR LAMPS (LED) The coin door lamps all are 12V/DC T10 LED or equivalent and can be accessed via the coin door. BUTTON LAMPS (LED) The button lamps all are super bright 12V/DC T10 LED or equivalent and can be accessed inside the coin door.

  • Page 34: Section B: Technical Details

    SECTION B: TECHNICAL DETAILS It is advised that anybody using SECTION B for repairing or modifying any of the components of the game should be a qualified technician, having at least a basic knowledge of digital components, integrated circuits and electricity. POWER SUPPLY The single universal AC input power supply generates 12VDC for the entire machine.

  • Page 35: Coin Options Reference Guide

    PIN7 = GND PIN8 = COIN2 input PIN9 = 12VDC Contact your nearest LAI Games distributor for harnessing to suit different coin comparators and bill acceptors. TICKET DISPENSER/CAPSULE DISPENSER REFERENCE GUIDE A ticket mech can be fitted inside the ticket door, alternatively a capsule dispenser can be fitted insude the rear service door.

  • Page 36: Card System Reference Guide

    CARD SYSTEM REFERENCE GUIDE A 21 pin connector exists inside the ticket door for connection to a card system. Mating shell part number: JST YLP-21V Pins part number: SYF-01T-P0.5A (for AWG26-20) PIN1 = COIN1 Input PIN2 = COIN2 Input PIN3 = COIN1 METER Output PIN4 = COIN2 METER Output PIN5 = TICKET 1 DRIVE (from GAME) PIN6 = TICKET 1 DRIVE (to MECH)

  • Page 37: Quixant Qxi-200

    QUIXANT QXi-200 The front and rear panel as well as required connections are shown below. DVI-D – connects to monitor. USB – connects to the security dongle. The port is not specific, when operating the green LED will be on solid. COM4 –...

  • Page 38: Fb182 Connector Wiring

    FB182 CONNECTOR WIRING FUSES FUSE 1 1A Fast Main regulator and board logic FUSE 2 3A Fast P4 pin 8 - 12V switched output (unused connector) FUSE 3 3A Fast P6 pins 1,2,11,12 - 12V switched output to start button lamp FUSE 4 3A Fast P4 pins 1,2,3 - 12V output (unused connector)
  • Page 39 J2 – Quixant I/O ** I2C DAT I2C CLOCK ** PSU AC FAIL# ** ** OPTO DRV# INTR2** INTR3** INTR4 ** INTR5 ** DIN 1 – Service/Back Button DIN 0 – Test/Right Button DIN 3 – Down/Select Button DIN 2 – Up/Take Win Button DIN 5 –...
  • Page 40 J5 – Quixant I/O DOUT 9 DOUT 8 DOUT 11 DOUT 10 DOUT 13 DOUT 12 DOUT 15 DOUT 14 DOUT 17 – Motor Major 2 DOUT 16 – Motor Major 1 DOUT 19 – Motor Major 4 DOUT 18 – Motor Major 3 DOUT 21 DOUT 20 DOUT 23 –...
  • Page 41 3A. Ticket Drive is capable of driving the ticket mech or capsule dispenser motor directly. Contact your nearest LAI Games distributor for information for converting between tickets and capsules. Ensure that no wire is connected to pin 4.
  • Page 42 P5 – Light Outputs 12V output 12V output 12V output 12V output START Button Lamp TakeWin Button Lamp Minor Prize Lamp 5 Select Button Lamp Minor Prize Lamp 3 Minor Prize Lamp 4 Minor Prize Lamp 1 Minor Prize Lamp 2 Harness connector shell: Molex Minifit 003901-2120 Harness connector pins: Molex Minifit 39-00-0038 (Reel) Harness connector pins: Molex Minifit 39-00-0039 (Loose)

  • Page 43: Wiring Diagrams

    WIRING DIAGRAMS Page | 43...
  • Page 44 Page | 44...
  • Page 45 Page | 45...
  • Page 46 Page | 46...
  • Page 47 Page | 47...
  • Page 48 Page | 48...
  • Page 49 Page | 49...
  • Page 50 Page | 50...
  • Page 51 Page | 51...
  • Page 52 Operator represents and warrants that it will only operate the hardware and licensed software provided by in compliance with the regulatory requirements of the LAI Games country, state, and/or municipality in which the hardware and licensed software are used and/or operated.
  • Page 53 WARRANTY warrants its manufactured products for a period of 3 months inclusive of parts LAI Games and labor from the date of sale. LAI Games exclusive obligation is to repair any item with any defects as a result of faulty...
  • Page 54 INTERNATIONAL SALES & SERVICE sales@laigames.com Sales/Enquiries: productsupport@laigames.com Tech. Support: www.laigames.com Website: For your nearest LAI Games Distributor, visit our web site at http://www.laigames.com Page | 54...
