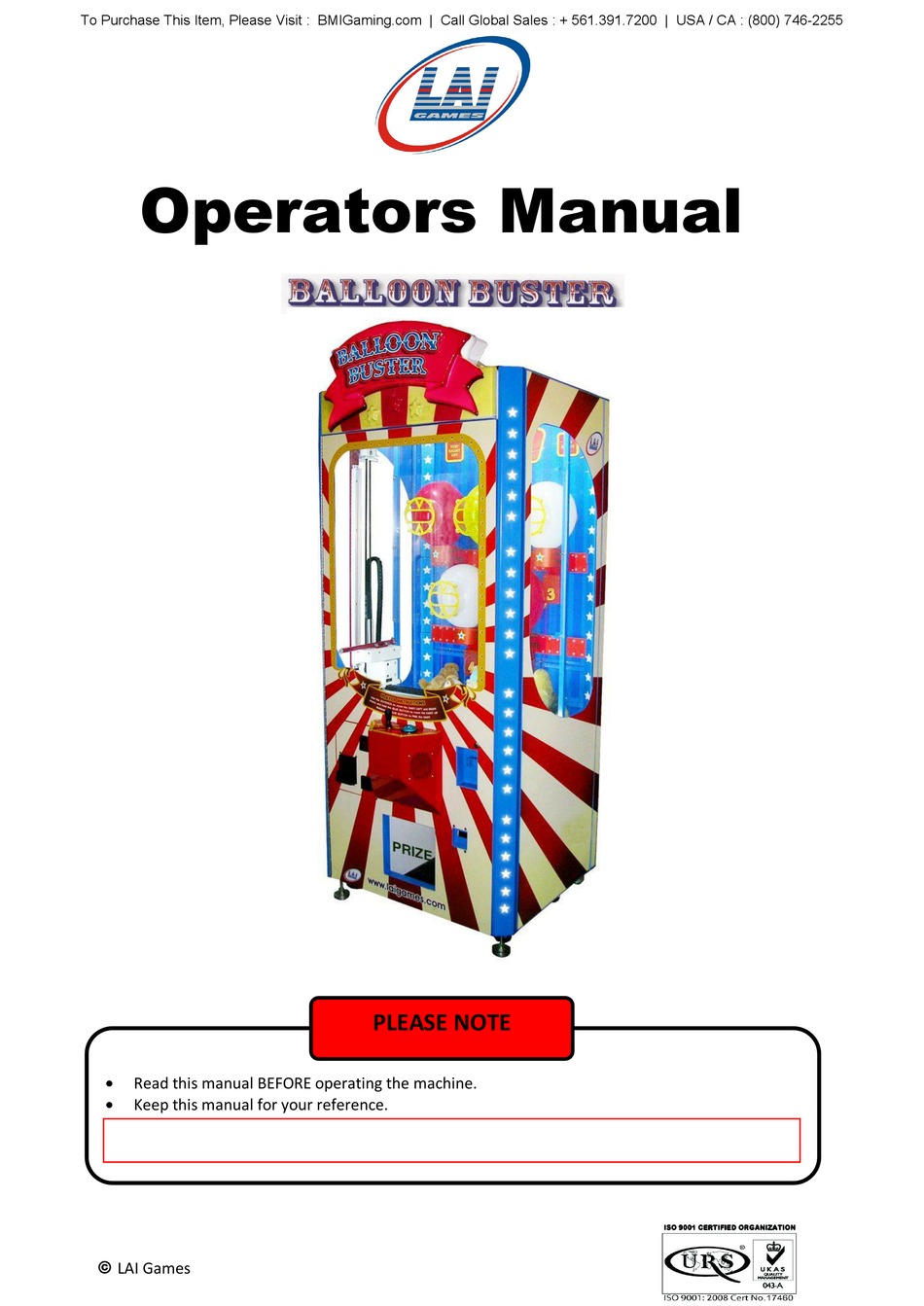

Operators Manual
Read this manual BEFORE operating the machine.
Keep this manual for your reference.
www.laigames.com
Go to
receive future updates.
© LAI Games
PLEASE NOTE
click on Operator Access to register your games and
