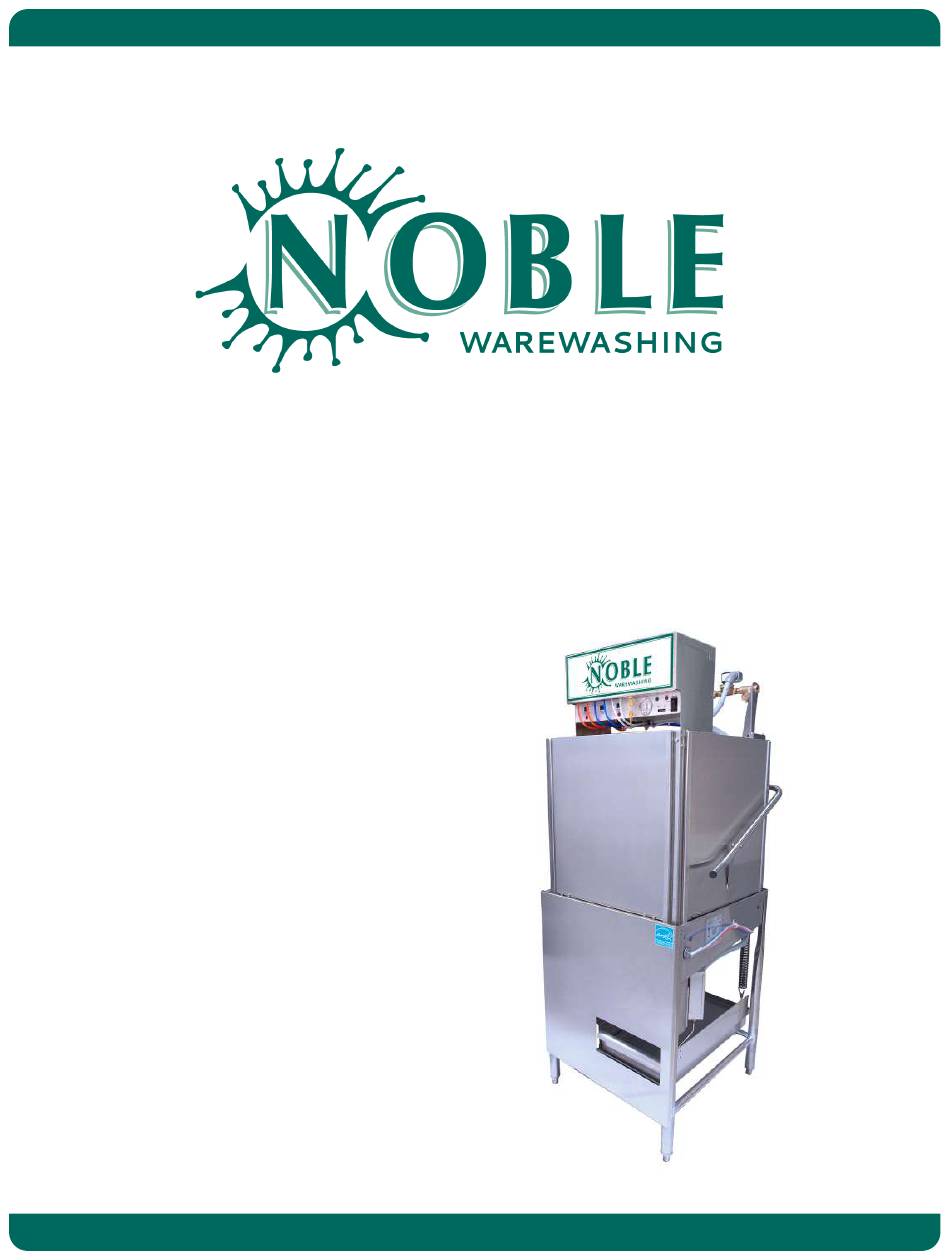

NOBLE DOOR-TYPE DISHMACHINES
INSTALLATION, OPERATION,
AND SERVICE MANUAL
Noble I-E
Noble I-E-FL
Noble I-E-LTH
Noble I HH
Noble I-E Series/I HH Manual • 07610-004-25-06-L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Noble I-E

Summary of Contents for Noble I-E

  • Page 1 NOBLE DOOR-TYPE DISHMACHINES INSTALLATION, OPERATION, AND SERVICE MANUAL Noble I-E Noble I-E-FL Noble I-E-LTH Noble I HH Noble I-E Series/I HH Manual • 07610-004-25-06-L...
  • Page 2 Added drain solenoid assembly to Wash Sump Assembly Page. 12-14-17 8551 Added the I-E-LTH to the manual. Added section on connecting heater contactor wires (LTH only) to pg. 12. Added item #9a to pgs. 27-28. 8604 Changed quantity of item #8 on pg. 33 to 2.
  • Page 3 NOMENCLATURE Noble I-E Door-type dishmachine; chemical-sanitizing, single-rack. Noble I-E-FL Door-type dishmachine; chemical-sanitizing, single-rack, front-loading. Noble I-E-LTH Door-type dishmachine; chemical-sanitizing, single-rack, with booster heater. Noble I HH Door-type dishmachine; chemical-sanitizing, single-rack with high hood. The manufacturer provides technical support for all of the dishmachines detailed in this manual.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS I-E Dimensions ...........................1 I-E-FL Dimensions ........................2 I-E-LTH Dimensions ........................3 I HH Dimensions .........................4 Table Installation .........................5 Operating Capacities ........................6 Electrical Requirements ......................7 INSTALLATION Installation Instructions ....................... 8 Inspection......................... 8 Unpacking ........................8 Leveling..........................8 Facility Hot Water Heater ....................8 Plumbing ..........................
  • Page 5 Frame ............................58 Miscellaneous Parts .........................59 SCHEMATICS I-E/I HH 115 V, 60 Hz, 1-Phase ....................60 I-E/I HH 208 V, 60 Hz, 1-Phase ....................61 I-E-LTH 208/230 V, 60 Hz, 1/3 Phase ..................62 I-E-FL 115 V, 60 Hz, 1-Phase ....................63...
  • Page 6 GUIDES GUIDES SYMBOLS - Risk of Injury to Personnel WARNING - Risk of Damage to Equipment CAUTION - Risk of Electrical Shock - Caustic Chemicals - Reference Data Plate - Lockout Electrical Power - Important Note NOTICE  - Instructions Hyperlink ABBREVIATIONS &...

  • Page 7: Specifications

    I-E DIMENSIONS SPECIFICATIONS 4 in (102 mm) LEGEND MINIMUM A - Electrical Connection (1 1/8” Hole) B - Water Inlet (3/4” NPT) 1 (25 mm) C - Drain Connection (2” NPT) D - Chemical Connection (7/8” Hole) 13 1/4 (337 mm) All dimensions from the floor can be increased 1 1/8”...

  • Page 8: I-E-Fl Dimensions

    I-E-FL DIMENSIONS SPECIFICATIONS [102 mm] LEGEND MINIMUM A - Electrical Connection (1 1/8” Hole) B - Water Inlet (3/4” NPT) C - Drain Connection (2” NPT) D - Chemical Connection (7/8” Hole) 13 1/4 [25 mm] All dimensions from the floor can be increased [337 mm] 1 1/8”...

  • Page 9: I-E-Lth Dimensions

    I-E-LTH DIMENSIONS SPECIFICATIONS 4 in (102 mm) LEGEND MINIMUM A - Electrical Connection (1 1/8” Hole) B - Water Inlet (3/4” NPT) 1 (25 mm) C - Drain Connection (2” NPT) D - Chemical Connection (7/8” Hole) All dimensions from the floor can be increased 13 1/4 (337 mm) 1 1/8”...

  • Page 10: I Hh Dimensions

    I HH DIMENSIONS SPECIFICATIONS LEGEND (102 mm) MINIMUM A - Electrical Connection (1 1/8” Hole) B - Water Inlet (3/4” NPT) C - Drain Connection (2” NPT) 1 (25 mm) D - Chemical Connection (7/8” Hole) All dimensions from the floor can be increased 13 1/4 (337 mm) 1 1/8”...
  • Page 11 TABLE INSTALLATION SPECIFICATIONS CORNER INSTALLATION 4 (102 mm) MIN ALIGN WITH TABLE - DISTANCE CAN VARY I-E Series False Panel Kit 4 (102 mm) MIN 05700-003-12-93 ALIGN WITH TABLE - DISTANCE CAN VARY False Panel Only 8 1/4 05700-002-51-66 4 (102 mm) MIN (210 mm) 20 1/2”...

  • Page 12: Operating Capacities

    OPERATING CAPACITIES SPECIFICATIONS Model Designation: I-E/I-E-FL I-E-LTH I HH Operating Capacity: Racks per Hour Dishes per Hour Glasses per Hour 1404 1404 1404 Tank Capacity (Gallons): Wash Tank 1.02 (40.2 GPH) 1.02 (40.2 GPH) 1.61 (62.8 GPH) Electrical Loads (as applicable):...

  • Page 13: Electrical Requirements

    Note that all electrical wiring used in this series of machines must be rated, at a minimum, for 212 °F (100 °C), and that only copper conductors must be used. Available Electrical Characteristics: I-E/I-E-FL/I HH I-E-LTH Electrical Characteristics Electrical Characteristics...

  • Page 14: Installation Instructions

    INSTRUCTIONS INSTALLATION INSPECTION Before installing the machine, check the packaging and machine for damage. If the packaging is damaged, the machine might also be damaged. If there is damage to both the packaging and machine, do not throw away the packaging. The machine has been Do not throw away the inspected and packed at the factory and is expected to arrive to you in new, undamaged container if damage is...

  • Page 15: Water Supply Connections

    INSTRUCTIONS INSTALLATION WATER SUPPLY If water hardness tests higher than 3 GPG, install the Scaltrol Water Treatment system (see the Plumbing Options page) into the water line before the machine’s incoming CONNECTIONS: water connection point. A water shut-off valve should be installed to allow access for WATER HARDNESS service.

  • Page 16: Electrical Power Connections

    INSTRUCTIONS INSTALLATION ELECTRICAL POWER Electrical and grounding conductors must comply with the applicable portions of the National Electric Code ANSI/NFPA 70 (latest edition) and/or other electrical codes. CONNECTIONS Refer to the machine data plate for machine operating requirements, machine voltage, total amperage, and serial number.

  • Page 17: Voltage Check

    INSTRUCTIONS INSTALLATION VOLTAGE CHECK 1. Ensure power switch is in the OFF position and apply power to the machine. 2. Check the incoming power at terminal block and ensure it corresponds to voltage listed on the data plate. If not, contact a qualified service agency to examine the problem.

  • Page 18: Heater Contactor Wires (Lth Only)

    INSTRUCTIONS INSTALLATION PRIMING CHEMICAL • Rinse-aid: FEEDER PUMPS WARNING WARNING! Some of the chemicals used in • Sanitizer: dishwashing might cause chemical burns if they come in contact with skin. Wear protective gear when handling these chemicals. If any contact with skin occurs, immediately follow the treatment 4.

  • Page 19: Cam Timer Operation

    The following is a description of the setpoints for each CAM and the function OPERATION of each switch. See next page for I-E-FL, which has an electronic timer. FUNCTION: When the machine is in operation mode the notch is in the home CAM 1 is a cut CAM with position.

  • Page 20: Electronic Cam Timer Operation

    CAM 8. To increase the rinse-aid time, open the notch of the CAM. To decrease, close the notch in small increments until the correct level is reached. ELECTRONIC CAM The I-E-FL is equipped with an electronic version of the CAM Timer. TIMER OPERATION  07610-004-25-06-L...

  • Page 21: Operating Instructions

    OPERATING INSTRUCTIONS OPERATION PREPARATION Before operating the machine, verify the following: 1. The sump strainer and pan strainer are in place and clean. 2. The drain stopper is installed. 3. The wash/rinse arms (one on top and one on bottom) are installed and secure. POWER UP To place the machine in standby, flip OFF/ON/FILL switch to ON position.

  • Page 22: First Rack

    RACK OF WARE Once the cycle is complete, open door (again careful of the dripping hot water) and On the I-E-LTH, choose the remove rack of clean ware. Replace with a rack of soiled ware and close door. The Normal, Medium, or Heavy next cycle starts automatically.

  • Page 23: Shutdown & Cleaning

    OPERATING INSTRUCTIONS OPERATION SHUTDOWN & 1. Turn machine off by flipping OFF/ON/FILL switch to OFF position. CLEANING 2. Open door. 3. Remove drain stopper and allow tub to drain. WARNING WARNING! Wash tank water could be hot. 4. Remove sump strainer and pan strainer. 5.
  • Page 24 OPERATING INSTRUCTIONS OPERATION SHUTDOWN & 8. Verify the nozzles and arms are free from obstruction. If clogged, remove end- caps, clean nozzles with a brush, and flush with fresh water. CLEANING 9. Replace end-caps and ensure they have been tightened. 10.

  • Page 25: Deliming

    DELIMING INSTRUCTIONS OPERATION DELIMING 1. Follow Filling the Wash Tub section. 2. Add deliming solution per chemical supplier’s instructions. 3. Close door. 4. Flip NORMAL/DELIME switch on the back of the control box to DELIME. DELIME NORMAL 5. Run machine period of time recommended by chemical supplier. 6.

  • Page 26: Detergent Control

    DETERGENT CONTROL OPERATION DETERGENT Detergent use and water hardness are two factors that greatly contribute to the machine's operating efficiency. Using the proper amount of detergent can become a CONTROL source of substantial savings. A qualified water-treatment specialist can determine what is needed for maximum efficiency from the detergent.

  • Page 27: Preventative Maintenance

    PREVENTATIVE MAINTENANCE MAINTENANCE PREVENTATIVE The manufacturer highly recommends that any maintenance and repairs not specifically discussed in this manual be performed only by QUALIFIED SERVICE PERSONNEL. MAINTENANCE Performing maintenance on your machine may void your warranty, lead to larger problems, or even cause harm to the operator. So if you have a question or concern, do not hesitate to contact a QUALIFIED SERVICE AGENCY.

  • Page 28: Troubleshooting

    TROUBLESHOOTING TROUBLESHOOTING OBSERVATION POSSIBLE CAUSE REMEDY Machine will not run, 1. Service disconnect switch 1. Turn disconnect on. no voltage at wash relay off or faulty. terminals L1 and T1. 2. Branch circuit breaker 2. Reset or replace. tripped/fuse blown. 3.
  • Page 29 TROUBLESHOOTING TROUBLESHOOTING OBSERVATION POSSIBLE CAUSE REMEDY Machine fills slowly and/or the 1. Clogged or obstructed 1. Remove and clean the rinse arms. rinse is weak. rinse arms. 2. Low incoming water pressure. 2. Adjust the water pressure regulator to ensure that there is 15 PSI water flow pressure.

  • Page 30: I-E Control Box

    I-E CONTROL BOX PARTS 07610-004-25-06-L...
  • Page 31 I-E CONTROL BOX PARTS ITEM DESCRIPTION PART NUMBER Control Box 05700-003-81-49 Decal, Warning–Disconnect Power 09905-004-08-16 Upper Decal 09905-004-11-13 Chemical Feeder Pump Assembly, 36 RPM (208 V) 05700-003-78-74 Chemical Feeder Pump Assembly, 36 RPM (115 V) 05700-003-25-02 Chemical Feeder Pump Assembly, 14 RPM (208 V)

  • Page 32: I-E-Fl Control Box

    I-E-FL CONTROL BOX PARTS 07610-004-25-06-L...
  • Page 33 I-E-FL CONTROL BOX PARTS ITEM DESCRIPTION PART NUMBER I-E-FL Control Box Complete Assembly 05700-004-78-13 Switch, Chemical Prime 05930-011-49-54 Light, Red 05945-504-07-18 Light, Green 05945-504-08-18 Switch, Normal/Delime 05930-301-21-18 Counter, Plastic 05990-111-35-38 Screw, 4-40 x 1/4" with Washer 05305-002-32-38 Chemical Feeder Pump Assembly, 14 RPM...

  • Page 34: I-E-Lth Control Box

    I-E-LTH CONTROL BOX PARTS ITEM DESCRIPTION PART NUMBER I-E-LTH Control Box Complete Assembly 05700-004-49-01 Box, Control Assembly 05700-004-49-02 Bracket, Terminal Block 05700-004-51-59 Bracket, Pressure Switch 05700-004-08-99 Bracket, Timer Mounting 05700-004-08-77 Chemical Feeder Pump Assembly, 36 RPM 05700-003-78-74 Chemical Feeder Pump Assembly, 14 RPM...
  • Page 35 I-E-LTH CONTROL BOX PARTS ITEM DESCRIPTION PART NUMBER Contactor, 30 A 05945-004-43-74 Thermostat, Electric (Dual) 06685-004-17-27 Probe, Thermistor 4” 06685-004-17-26 Terminal Board 05940-021-94-85 Terminal Block, 3-Pole 05940-011-48-27 Contactor, 30 A 05945-002-74-20 Counter, Plastic 05990-111-47-42 Relay, Top Mount 05945-111-47-51 Timer 05945-004-11-78...

  • Page 36: I Hh Control Box

    I HH CONTROL BOX PARTS HOUSING COVER AND SCREWS REMOVE COVER FROM PUMP AND (ATTACH THE 8-32 FLAT HEAD SCREW) TO PUMP MOTOR INSIDE CONTROL BOX 07610-004-25-06-L...
  • Page 37 I HH CONTROL BOX PARTS ITEM DESCRIPTION PART NUMBER High Hood Control Box Complete Assembly 05700-004-25-41 Control Box Weldment 05700-003-81-49 Light, Red 05945-504-07-18 Light, Green 05945-504-08-18 Switch, Carling 05930-301-21-18 Counter, 115 V 05990-111-35-38 Counter, 208 V 05990-111-47-42 Screw, 4-40 x 1/4" Phillips Pan Head w/Washer 05305-002-32-38 Chemical Feeder Pump Assembly, 14 RPM (208 V) 05700-003-31-86...
  • Page 38 I HH CONTROL BOX PARTS ITEM DESCRIPTION PART NUMBER Upper Decal 09905-004-11-13 Bracket, Pressure Switch 05700-004-08-99 Decal, Wash/Rinse 09905-002-82-46 P-clamp 1/4" ID 05975-002-61-42 Temperature Gauge 06685-111-68-49 Timer 05945-004-11-78 Microswitch, Timer 05930-011-65-81 Decal, Timer Cam Operation 09905-004-37-27 Screw, 6-32 x 3/8" SEMS w/Ext Wash 05305-002-25-91 Plug, 2643 1/3"...

  • Page 39: Chemical Feeder Pump Components

    CHEMICAL FEEDER PUMP COMPONENTS PARTS NOTICE For complete Chemical Feeder Pump Assembly part numbers, see the Control Box pages. 07610-004-25-06-L...
  • Page 40 CHEMICAL FEEDER PUMP COMPONENTS PARTS ITEM DESCRIPTION PART NUMBER Rear Housing 04320-004-59-41 Motor, 14 RPM 115 V Rinse-aid Feeder Pump 04320-111-35-13 Motor, 14 RPM 208/230 V, Rinse-aid Feeder Pump 04320-111-47-46 Motor, 36 RPM 115 V, Detergent/Sanitizer Feeder Pump 04320-111-35-14 Motor, 36 RPM 208/230 V, Detergent/Sanitizer Feeder Pump 04320-111-47-47 Screw, 8-32 x 1/2”...

  • Page 41: I-E Hood

    I-E HOOD PARTS Complete Inlet Plumbing Assembly 05700-004-34-44 07610-004-25-06-L...
  • Page 42 I-E HOOD PARTS ITEM DESCRIPTION PART NUMBER Control Box Assembly, 115 V 05700-004-01-65 Control Box Assembly, 208 V 05700-004-16-66 Hood, Weldment 05700-004-08-68 Locknut, 1/4-20 with Nylon Insert 05310-374-01-00 Hood Support 05700-002-78-99 Bolt, 1/4-20 x 1/2” 05305-274-02-00 Washer, SS 1/4” 05311-174-01-00...

  • Page 43: I-E-Fl Hood

    I-E-FL HOOD PARTS Complete Inlet Plumbing Assembly 05700-004-34-44 07610-004-25-06-L...
  • Page 44 I-E-FL HOOD PARTS ITEM DESCRIPTION PART NUMBER Control Box Assembly, I-E-FL 05700-004-78-13 Hood, Top 05700-004-77-77 Screw, 1/4-20 x 1/2" Button Head Hex 05305-004-62-33 Cap, Snap-in 05340-004-77-82 Bracket, Upright Upper 05700-004-76-36 Upright, Left 05700-004-81-54 Bracket, Upright Lower 05700-004-76-35 Guide Block, Stop...

  • Page 45: I-E-Lth Hood

    I-E-LTH HOOD PARTS Complete Inlet Plumbing Assembly 05700-004-49-05 07610-004-25-06-L...
  • Page 46 I-E-LTH HOOD PARTS ITEM DESCRIPTION PART NUMBER Control Box Assembly, I-E-LTH 05700-004-49-01 Hood, Weldment 05700-004-08-68 Gasket, Air-gap 05330-002-14-48 Air-gap 05700-004-34-42 Nipple, 3/4" x 2" Brass 04730-207-46-00 Elbow, 3/4", 90-degree Brass 04730-206-13-00 Nipple, 3/4" x 1 3/8" Brass 04730-207-34-00 Solenoid Valve, 3/4”, 208/230 V 04810-100-03-18 Nipple, 3/4"...

  • Page 47: I Hh Hood

    I HH HOOD PARTS Complete Inlet Plumbing Assembly 05700-004-34-44 07610-004-25-06-L...
  • Page 48 I HH HOOD PARTS ITEM DESCRIPTION PART NUMBER Control Box Assembly, 115 V 05700-004-25-41 Control Box Assembly, 208 V 05700-004-30-24 Hood, Weldment 05700-004-24-96 Locknut, 1/4-20 with Nylon Insert 05310-374-01-00 Hood Support 05700-004-13-45 Bolt, 1/4-20 x 1/2” 05305-274-02-00 Washer, SS 1/4” 05311-174-01-00 Bracket, Cantilever Support 09515-003-15-64...

  • Page 49: Plumbing Options

    PLUMBING OPTIONS PARTS SHOCK ABSORBER (WATER ARRESTOR) OPTION Water Arrestor, 1/2” 06685-100-05-00 Tee, 3/4” x 3/4” x 1/2” 04730-211-06-00 Nipple, 3/4” NPT, Close, Brass 04730-207-34-00 WATER TREATMENT OPTION Scaltrol System Replacement Cartridge 04730-003-05-76 (inspect at least every 6 months) RSC-100 PRESSURE REGULATING VALVE OPTION Water Pressure Regulator, 3/4"...

  • Page 50: I-E/I-E-Lth Door

    I-E/I-E-LTH DOOR PARTS 24, 18 10 11 12 10, 11, 12 24 18 15 16 15, 16 23, 18 23 18 17, 18 21, 25 19, 11, 12 19 11 12 17 18 21 25 07610-004-25-06-L...
  • Page 51 I-E/I-E-LTH DOOR PARTS ITEM DESCRIPTION PART NUMBER Arm, Cantilever 05700-031-50-67 Spring Pin, 1/4” Dia. x 1 1/8” 05315-407-06-00 Yoke Assembly 05700-000-75-77 Cotter Pin 05315-207-01-00 Yoke 05700-000-75-78 Clevis Pin 05315-700-01-00 Nylon Washer 05311-369-03-00 Bushing 03120-100-03-00 Lock Nut, 3/8-16 SS (Not Shown)

  • Page 52: I-E-Fl Door

    I-E-FL DOOR PARTS SECTION A-A 07610-004-25-06-L...
  • Page 53 I-E-FL DOOR PARTS ITEM DESCRIPTION PART NUMBER Complete Door Assembly 05700-004-74-43 Panel, Door Outer 05700-004-78-22 Panel, Door Inner 05700-004-77-68 Bracket, Door Right 05700-004-74-35 Bracket, Door Left 05700-004-74-36 Guide, Rack, Right 05700-004-72-81 Guide, Rack, Left 05700-004-72-82 Door Handle Support 05700-004-17-42 Door Handle...

  • Page 54: I Hh Door

    I HH DOOR PARTS 07610-004-25-06-L...
  • Page 55 I HH DOOR PARTS ITEM DESCRIPTION PART NUMBER Door, Front Outer 05700-004-14-21 Door, Left Outer 05700-004-14-19 Door, Right Outer 05700-004-14-17 Bracket, Door Connecting 05700-004-14-23 Handle, Door Front 05700-004-14-30 Plug, Cantilever 05340-011-35-00 Washer, 1/4-20 ID 05311-174-01-00 Locknut, 1/4-20 Low Profile with Nylon Insert 05310-374-02-00 Bolt, 1/4-20 x 1/2"...

  • Page 56: Wash Arms

    WASH ARMS PARTS Wash Arm Assembly 05700-003-59-35 2 per Machine ITEM DESCRIPTION PART NUMBER Bearing Assembly 05700-021-35-97 O-ring, 117-S70 Silicon 05330-002-60-69 Wash Arm End-cap 05700-011-35-92 Wash Arm 05700-003-57-70 07610-004-25-06-L...

  • Page 57: Wash Manifold

    WASH MANIFOLD PARTS ITEM DESCRIPTION PART NUMBER Bolt, 3/8-16 x 3/8" SS 05306-011-36-95 Casting, Upper Wash Manifold 05700-031-34-82 3/8" Lockwasher, SS 05311-276-01-00 3/8" Hex Nut, SS 05310-276-01-00 Bolt, 3/8-16 x 1 1/4" SS 05305-276-10-00 Lower Wash Manifold 05700-003-78-40 Gasket, Wash Manifold 05700-111-35-03 3/8"...

  • Page 58: Tub

    PARTS ITEM DESCRIPTION PART NUMBER Tub Assembly, I-E Series 05700-003-78-39 Tub Assembly, I HH 05700-004-27-28 Rack Guide Assembly, I-E Series/I HH 05700-031-36-76 Rack Guide Assembly, I-E-FL 05700-004-84-25 Bulkhead Fitting, 1/2” 04730-011-45-21 Clamp, Nylon 04730-011-39-01 Lock Nut, 10-24 05310-373-01-00 Wash Arm Assembly 05700-003-59-35 Bolt, 1/4-20 x 1/2”...

  • Page 59: Wash Sump

    WASH SUMP PARTS ITEM DESCRIPTION PART NUMBER Pump & Motor Assembly See Pump & Motor page. Pump Drain Hose 05700-004-08-52 Clamp, 7/16” to 25/32” 04730-011-36-05 Sump Weldment 05700-003-78-41 Sump Gasket 05330-003-78-31 Lock Nut, 1/4-20 05310-374-01-00 Drain Solenoid, 115 V 04810-200-11-00 Drain Solenoid, 208/230 V 04810-111-87-74 Drain Link...

  • Page 60: Spillway

    SPILLWAY PARTS ITEM DESCRIPTION PART NUMBER Gasket, Spillway 05700-111-34-52 Spillway 05700-003-52-13 Lock Nut, 1/4-20 Hex with Nylon Insert 05310-374-01-00 Drain Link 05700-003-78-49 Connector, Drain Link 05700-004-53-23 Drain Seat 05700-004-37-18 07610-004-25-06-L...

  • Page 61: Pump & Motor

    PUMP & MOTOR PARTS Complete Assembly Complete Pump & LTH 3-Phase Only Motor Assembly See Motor Rotation section. 06105-004-24-80 Motor Only 06105-004-32-04 Parts Pump Dishcharge Hose (Not Shown) 05700-003-78-50 Hose Clamp, 1 5/16" to 2 1/4" S/S (Not Shown) 04730-719-18-00 (2 required) ITEM DESCRIPTION PART NUMBER...

  • Page 62: I-E-Lth Booster Tank

    I-E-LTH BOOSTER TANK PARTS 07610-004-25-06-L...
  • Page 63 I-E-LTH BOOSTER TANK PARTS ITEM DESCRIPTION PART NUMBER Complete Booster Tank Assembly 05700-004-52-09 Booster Tank 05700-004-52-23 Plate, Booster Tank Base 05700-004-48-90 Bracket, Booster Mount 05700-004-48-83 Bracket, Booster Tank 05700-004-52-08 Plumbing, Booster Inlet/Outlet 05700-004-52-28 Hose, Blue 3/4" x 45" 05700-004-52-27 Hose, Red 3/4" x 49"...

  • Page 64: Frame

    Strainer Stop 05700-004-18-33 Accumulator 05700-004-08-39 Adjustable Foot 05340-108-01-03 Screw, 1/4-20 x 1 1/2" 05305-274-23-00 Locknut, 1/4-20 (Not Shown) 05310-374-01-00 Bolt, 1/4-20 x 3/8" 05305-274-20-00 Locknut, 1/4-20 Low Profile (Not Shown) 05310-374-02-00 05700-004-08-71 Front Dress Panel Front Dress Panel, I-E-LTH 05700-004-50-07 07610-004-25-06-L...

  • Page 65: Miscellaneous Parts

    MISCELLANEOUS PARTS PARTS Parts not shown to scale in relation to each other. Drain Stopper Assembly, I-E/I-E-LTH 05700-003-78-51 Bulk Head Fitting Drain Stopper Assembly, I HH 04730-011-45-21 05700-004-27-31 Blue Chemical Tubing (120") 05700-011-37-17 Red Chemical Tubing (120") 05700-011-37-15 White Chemical Tubing (120")

  • Page 66: Schematics

    I-E/I HH 115 V, 60 HZ, 1-PHASE SCHEMATICS NOBLE I-E/I HH ELETRICAL DIAGRAM 07610-004-25-06-L...

  • Page 67: I-E/I Hh 208 V, 60 Hz, 1-Phase

    I-E/I HH 208 V, 60 HZ, 1-PHASE SCHEMATICS NOBLE I-E/I HH ELETRICAL DIAGRAM 07610-004-25-06-L...

  • Page 68: I-E-Lth 208/230 V, 60 Hz, 1/3 Phase

    I-E-LTH 208/230 V, 60 HZ, 1/3 PHASE SCHEMATICS NOBLE I-E-LTH 07610-004-25-06-L...

  • Page 69: I-E-Fl 115 V, 60 Hz, 1-Phase

    I-E-FL 115 V, 60 HZ, 1-PHASE SCHEMATICS NOBLE I-E-FL 07610-004-25-06-L...
  • Page 70 NOBLE DOOR-TYPE DISHMACHINES Noble Warewashing • Lancaster, Pennsylvania www.nobleproducts.biz For Service Call 1-888-800-5672 Noble I-E Series/I HH Manual • 07610-004-25-06-L...
