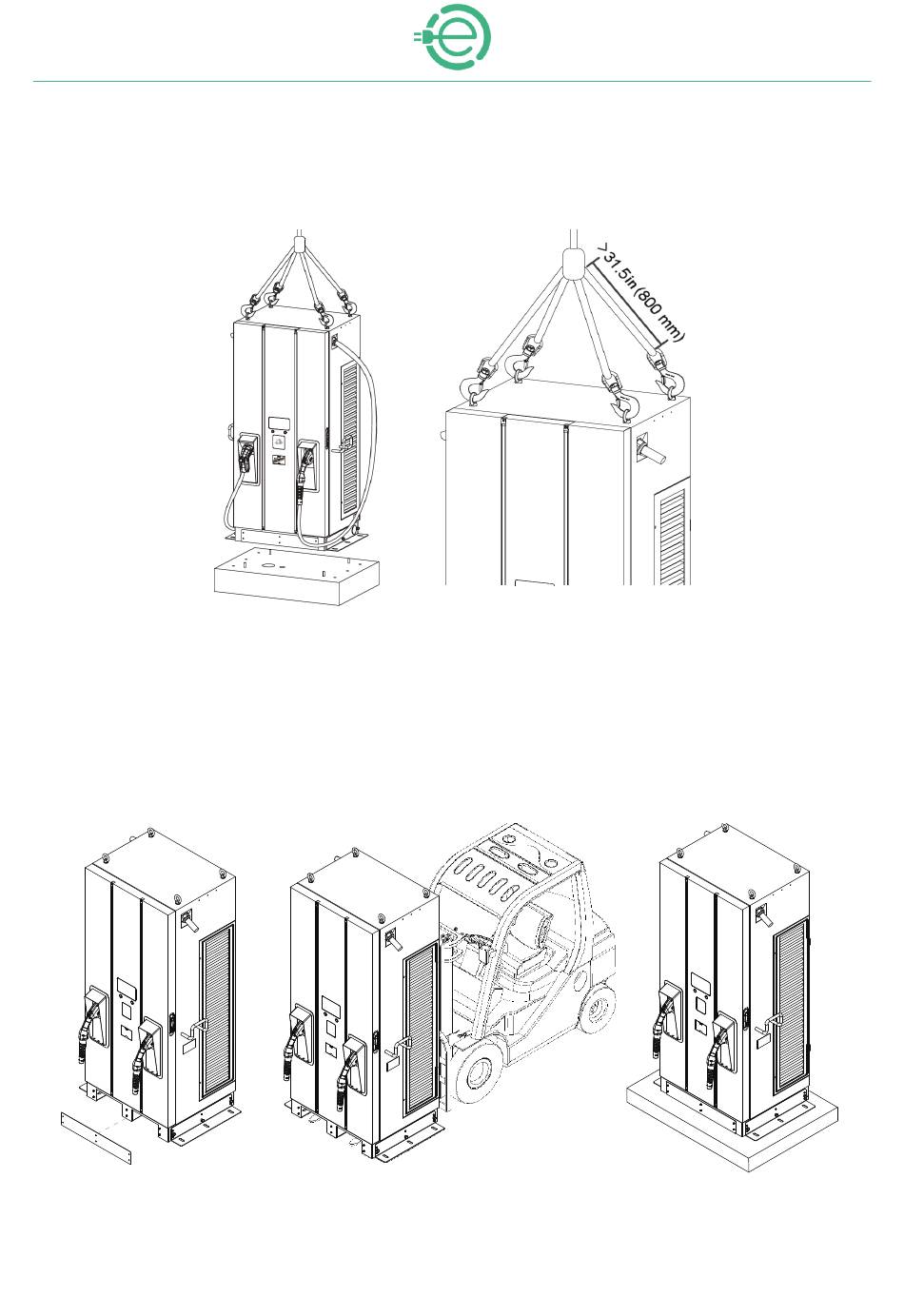

4) To move the EVSE using a crane, attach a bridle hitch with four legs to the eye
bolts using ¼ in. (6mm) diameter steel cables. Each leg of the hitch should be
31.5 in. (800mm) in length. See Figure 8.
Figure 8. Moving the EVSE via Crane
5)To use a forklift to move the EVSE, first remove the bottom trim panels from
the front and back of the EVSE, then lift the EVSE with the forklift. See Figure 9.
Figure 9. Moving the EVSE via forklift
DC EVSE Standalone DC Fast Charger 13
