Summary of Contents for Free2Move eSolutions ProWallbox Move

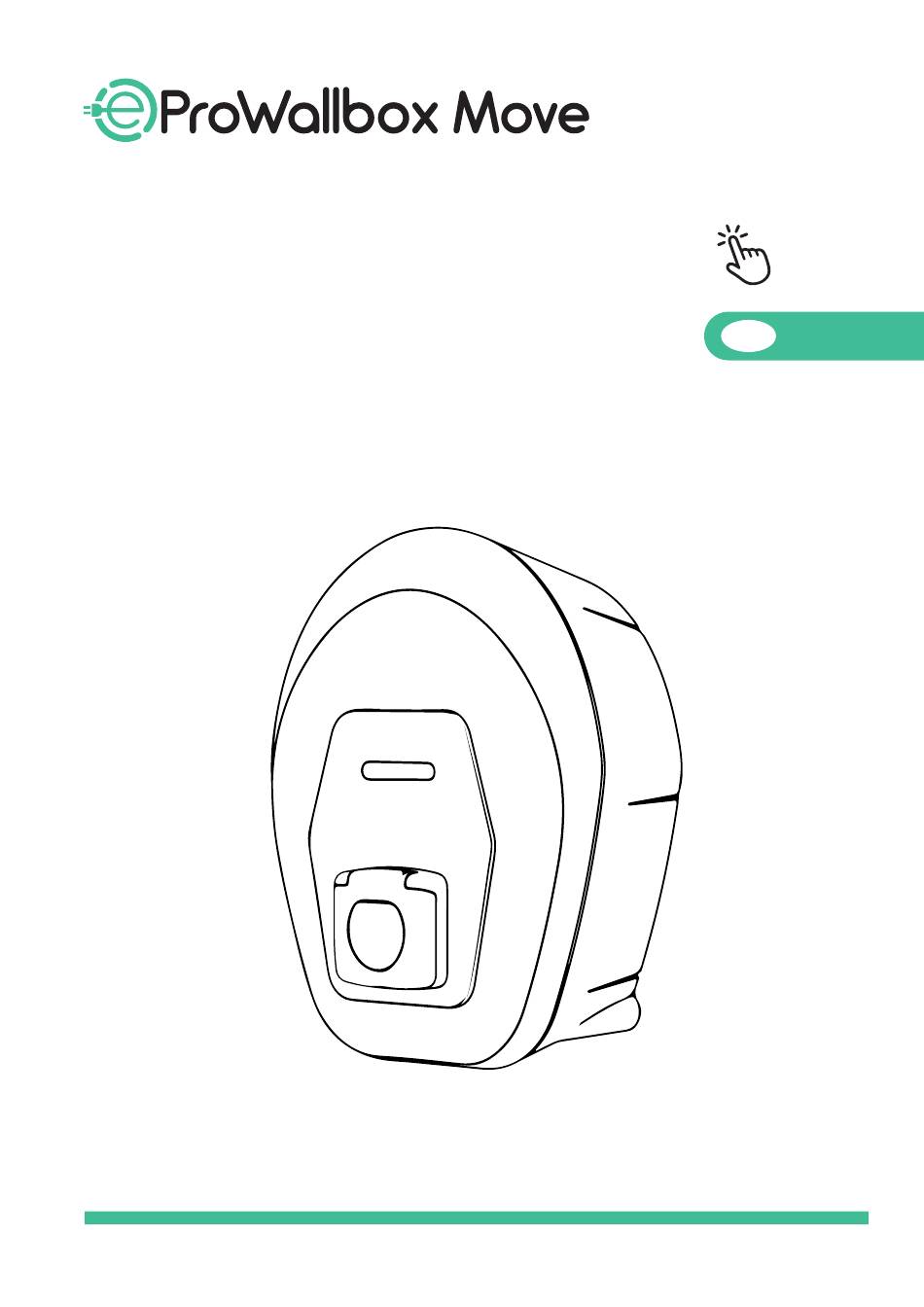

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE INTRODUCTION GENERAL INFORMATION 1.1. Fields of use ESOLUTIONS CHARGING APP 2.1. Pairing between eProWallbox Move and app 2.2. Charging sessions OVERALL VIEW TURNING ON EPROWALLBOX MOVE 4.1. Operating mode INSTRUCTIONS FOR USE 5.1. Preliminary charging operations 5.2. -
Page 3: Introduction
Free2Move eSolutions S.p.A. cannot be held liable for damage caused to persons and/or property, or to the equipment, if the conditions described below have not been complied with. - Page 4 WARNINGS Danger of electric shock and fire Before installing or using the device, make sure that none of the components have been damaged. Damaged components can lead to electrocution, short circuits, and fire due to overheating. A device with damage or defects must not be used. Install eProWallbox Move away from petrol cans or combustible substances in general.
- Page 5 SYMBOL DESCRIPTION Symbol Description General warning It is mandatory to consult the original manual and additional documentation Prohibition or restrictions Although they are not made of materials that are harmful to health, the products should not be disposed of along with household waste but must be collected separately, because they are made of materials that can be recycled Sign for electrical voltage hazard Electronic device installation carried out by qualified personnel only...
-
Page 6: General Information
F2ME.EPROSEYYXXX 1.1. Fields of use Free2Move eSolutions S.p.A. declines all liability for any damage whatsoever due to incorrect or careless action. The equipment may not be used for any purpose other than the one it is intended to fulfil. The equipment must not be used by inexperienced personnel or even by expert professionals if the equipment undergoes operations that do not comply with this manual and accompanying documentation. -
Page 7: Esolutions Charging App
Move via a Bluetooth connection. When running the app for the first time, users are asked to provide personal details to register and create a Free2Move eSolutions account. Personal data and profile settings can be changed in-app. -
Page 8: Pairing Between Eprowallbox Move And App
2.1. Pairing between eProWallbox Move and app The app authenticates and pairs via a QR Code, linking eProWallbox Move to the owner’s user account. This pairing enables all remote features, such as data collection, display and analysis, as well as seamless customer support. -
Page 9: Charging Sessions
2.2. Charging sessions EV drivers have full control of their charging sessions wherever they are. Users can access core charging session control features, such as: Start the charging sessions via app Stop, delay and schedule charging sessions Monitor the status and progress of each charging session in real-time ... -
Page 10: Overall View

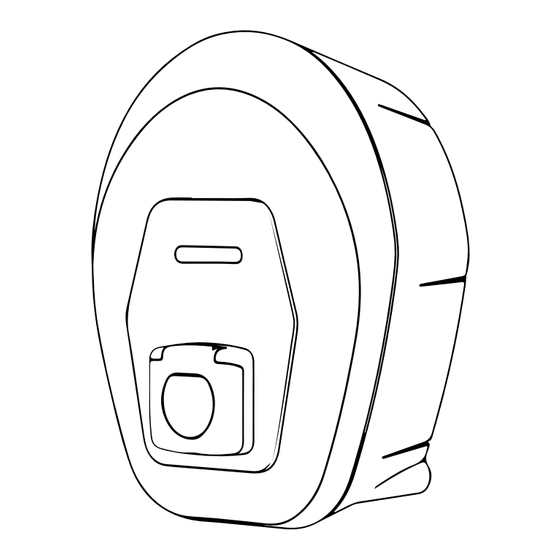

3. OVERALL VIEW Let’s start by looking at the Figure below, showing eProWallbox Move and its main parts. Base External Cover Type 2 Socket... -
Page 11: Turning On Eprowallbox Move
TURNING ON EPROWALLBOX MOVE The device does not have start/stop buttons. Once installed, it is ready to be configured via App. This allows the appropriate operating mode to be selected, depending on whether connection to the charge point management platform is via app or in StandAlone mode, when the following conditions are fulfilled: correct installation, certified by qualified personnel ... -
Page 12: Operating Mode
4.1. Operating mode On the App, go to wallbox settings and click on Autostart button, to disable or enable the authentication mode. The 4 operating modes are the following: Autostart connected (default Factory setting): Connected to eSolutions control platform for charging without authentication Autostart not connected: Not connected to eSolutions... -
Page 13: Instructions For Use
Ensure the electric vehicle is compatible with the product’s technical features. Do not use adapters or extensions not specified by Free2Move eSolutions S.p.A. as they may damage the product and create safety hazards for the user. eProWallbox Move must only be used according to the operating parameters specified and at an ambient temperature between -25 ºC and 50 ºC. -
Page 14: How To Start Charging (Without Authentication)
5.2. How to start charging (without authentication) If eProWallbox Move is configured with Autostart Operating Mode as the default setting, the following operations must be performed: eProWallbox Move is ready for charging when the LED is BLUE. Insert the plug of the charging cable into the available socket on the device, until it is fully engaged. -
Page 15: How To Charge With Authentication
5.3. How to charge with authentication Charging can be accessed via app if the Authentication Operating Mode is selected. Proceed as per the instructions provided in the previous point, until the cable is inserted (step 3). Start remotely via app. Charge the vehicle. When charging is complete or the charging process needs to be stopped, the user can stop the charging process via app to allow the socket to be unlocked and end the charging session. -
Page 16: Led Behaviour
5.4. LED behaviour Once the device is powered up, the LED flashes in a sequence of colours. Then the status of the device can be easily monitored through the colours and behaviour of the frontal LED. CPMS Pulsing Loading Charging in process Software update not connected Error detected See... -
Page 17: Maintenance
MAINTENANCE Before carrying out any maintenance work, turn the power supply of the device off, and disconnect it from the electric vehicle. Only qualified personnel can open the eProWallbox Move and carry out operations on the components. The user does not need to maintain any parts of the eProWallbox Move. A damaged or defective appliance must not be used in any way, but must immediately be replaced or repaired by qualified professionals, in accordance with the manufacturer’s instructions. -
Page 18: Assistance
DISCLAIMER Free2Move eSolutions S.p.A. will not be held responsible for any damage directly or indirectly caused to people, things or animals due to the failure to comply with all the provisions set out in this Manual and the warnings regarding the use and maintenance of eProWallbox Move. - Page 19 Registered office Free2Move eSolutions S.p.A. Piazzale Lodi, 3 20137 Milan - Italy V.02.2022...
