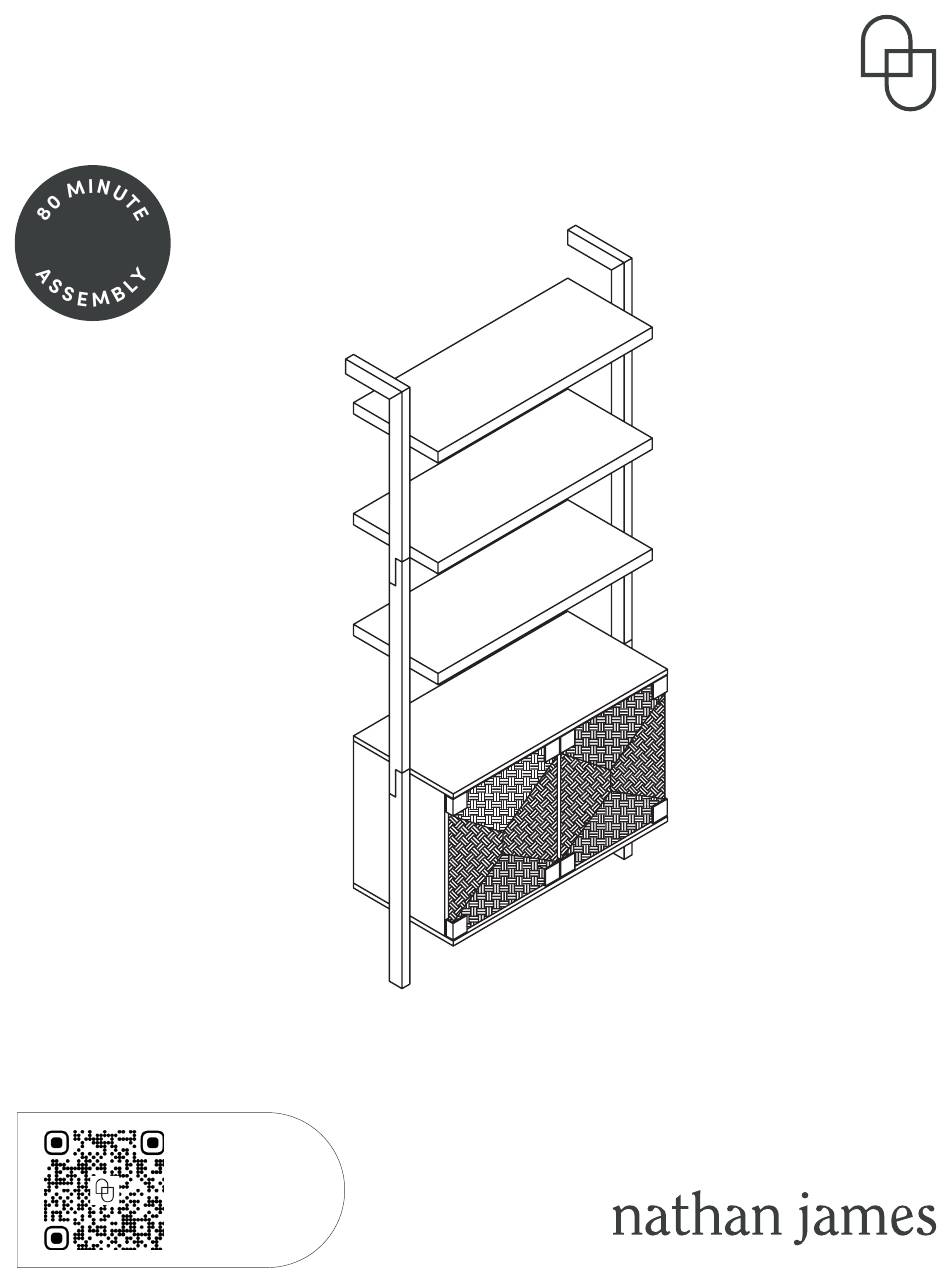

Let's build the
Beacon Bookshelf
SKU 67601
80
Scan me!
Free Lifetime
Warranty
23-1017-VN

Advertisement

loading
Need help?

Need help?

Do you have a question about the Beacon 67601 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NATHAN JAMES Beacon 67601

Summary of Contents for NATHAN JAMES Beacon 67601

  • Page 1 Let’s build the Beacon Bookshelf SKU 67601 Scan me! Free Lifetime Warranty 23-1017-VN...

  • Page 2: What's Included

    Ok, let’s What’s included get rolling Description Top Open Shelf Panel Cabinet Top Panel This should be easy, just follow our instructions and you will be Cabinet Right Side Panel back to Netflix in no time. Cabinet Left Side Panel Estimated time for assembly Cabinet Bottom Panel 80:00...
  • Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping.
  • Page 4 What’s included Description M6*35mm Cam Bolt 1/4”*32mm Hex Button Head Bolt Flat Washer Allen Key M8*30mm Wooden Dowel 15* 10 mm Cam Lock M4*35 mm Screw 1/4”*55mm Hex Button Head Bolt Barrel Nuts Shelf Pin M4*50mm Screw Wall Anchor M3* 15 mm Screw Magnetic Door Catch Flat Washer (Plastic)
  • Page 5 Step 1 Let’s get this thing fired up! Start by placing three Cam Bolts (1) into the Cabinet Left Side Panel (D) and three Cam Bolts (1) into the Cabinet Right Side Panel (C). Use a screwdriver to tighten.
  • Page 6 Step 2 You can pull out the Allen Key for this step! Secure the side panels from Step 1 onto the Cabinet Top Panel (B) as pictured below. Be sure to place a Flat Washer (3) onto the Hex Button Head Bolt (2) before tightening.
  • Page 7 Step 3 Secure the Magnetic Door Catches (14) to the Top Stretcher (R) using the M3* 15 mm Screws (13). Pay careful attention that the door catches are facing the correct way! (backwards)
  • Page 8 Step 4 Secure the Top Stretcher Back (H) and Top Stretcher Front (R) to the Cabinet Top Panel (B) using the Cam Locks (6). Double check to make sure the Top Stretcher (H) is facing the right way before tightening! See the following page for a quick guide on how to use cam locks!
  • Page 9 How to use Did you know? Cam locks are used to join two panels together, cam locks usually the edge of one to the flat side of another. First, your cam bolt (or cam pin) will need to be properly inserted into the flat side of the board. Important Note: Only tighten the cam bolt until it is secure.
  • Page 10 Step 5 Tighten the Top Stretcher Back (H) and Top Stretcher Front (R) using the M4*35 mm Screws (7).
  • Page 11 Step 6 Secure the Bottom Stretcher Back (I) to the Cabinet Left Side Panel (D) and Cabinet Right Side Panel (C) using two Cam Locks (6).
  • Page 12 Step 7 You’re doing great! Now would be a great time to grab a mid-assembly snack. Chips and salsa anyone? Once you have your snack, slide in the Back Panel (G).
  • Page 13 Step 8 Insert the M8*30mm Wooden Dowels (5) into the pre-drilled holes as shown below to secure the Cabinet Bottom Panel (E). Line up the doors with their respective holes in the top & bottom panels before moving forward with placing the bottom panel and doors in place.
  • Page 14 Step 9 Secure the Cabinet Bottom Panel (E) using three M4*35 mm Screws (7). Then secure four 1/4”*55mm Hex Button Head Bolts (8) and Flat Washers (3) into the Barrel Nuts (9) as shown below.
  • Page 15 Step 10 Let’s get the frame built! Secure the Top Vertical Support (Right) (K), Middle Vertical Support (Right) (M), and Bottom Vertical Support (Right) (O) together and the Top Vertical Support (Left) (J), Middle Vertical Support (Left) (L), Bottom Vertical Support (Left) using the 1/4”*32mm Hex Button Head Bolts (2) and Flat Washers (3).
  • Page 16 Step 11 Secure the right supports on to the bookcase unit first.
  • Page 17 Step 12 Next, secure the Top Open Shelf Panels (A) to the right supports. Make sure that the holes on the panels are in the back before securing.
  • Page 18 Step 13 It’s all coming together! Time to secure the left supports.
  • Page 19 Step 14 Place the Shelf Pins (10) at your desired height and carefully place the Shelf (F) on top of the pins. *tilt shelf 35 degrees before trying to place inside the cabinet on shelf pins...
  • Page 20 Step 15 Looking good! Adjust feet if the bookcase seems wobbly or unlevel when placed against the wall.
  • Page 21 Step 16 Safety first! Using a 1/4” drill bit, drill three holes into your desired area on the wall 338mm a part from one IMPORTANT NOTE: another. Make the bottom Drill & 1/4” drill bit are required to make Anchor 983mm from the the a hole to accomodate Wall Anchor (1 ground.
  • Page 22 Step 17 Last but not least, grab a friend and carefully line up your bookshelf to the Wall Anchors (12) and secure using the M4*50mm Screws (11).
  • Page 23 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...

  • Page 24: Proper Use

    Any modifications will Nathan James and its parent companies cannot present the risk of creating significant safety issues which NJ will not be responsible for. be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product.
  • Page 25 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
