Evaluation Board User Guide
LTpowerPlay Quick Start Procedure
The following procedure describes how to use LTpowerPlay to monitor and change the settings of LT7171-1.
1. Download and install the LTPowerPlay GUI:
2. Launch the LTpowerPlay GUI.

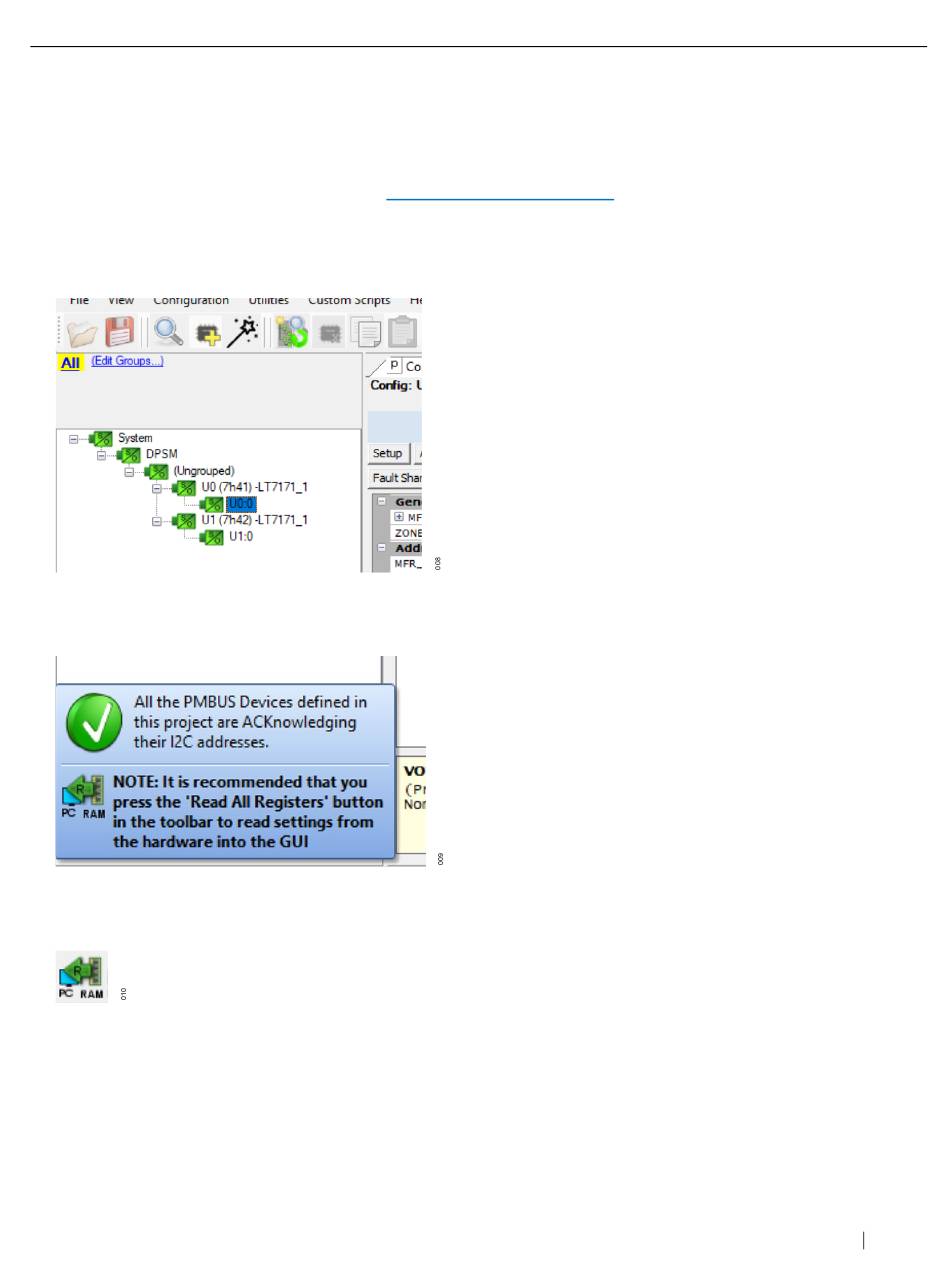

3. The GUI should automatically identify the EVAL-LT7171-1-AZ. The system tree on the left-hand side should look like
the image below.
4. A green message box shows for a few seconds in the lower left-hand corner, confirming that LT7171-1 is
communicating.
5. In the toolbar, click the R (RAM to PC) icon to read the RAM from the LT7171-1. This reads the configuration from the
RAM of the LT7171-1 and loads it into the GUI.
