4400 Series Door Closer
Models UNI4400(DL) and UNI4410(DL)
UNI Stop™ Parallel Arm, Non-Hold Open and Hold Open
Installation Instructions
  
Use these instructions for installing all models of this series on
y
1-3/4" (45mm) doors hung on 4-1/2" (114mm) wide hinges or 3/4" (19mm)
offset pivots.
  
DOOR WIDTH determines the location of the closer. Use ONLY the template
y
chart corresponding to your door width.
  
Use ONLY the dimensions given in each template chart for the door total
y
OPENING angle or the HOLD OPEN angle desired.
  
UNI Stop™ parallel arms are supplied in one of three lengths, according to
y
door width specified on order. To verify that the ARM is CORRECT FOR THE
DOOR WIDTH, check the number stamped on the arm against the chart.

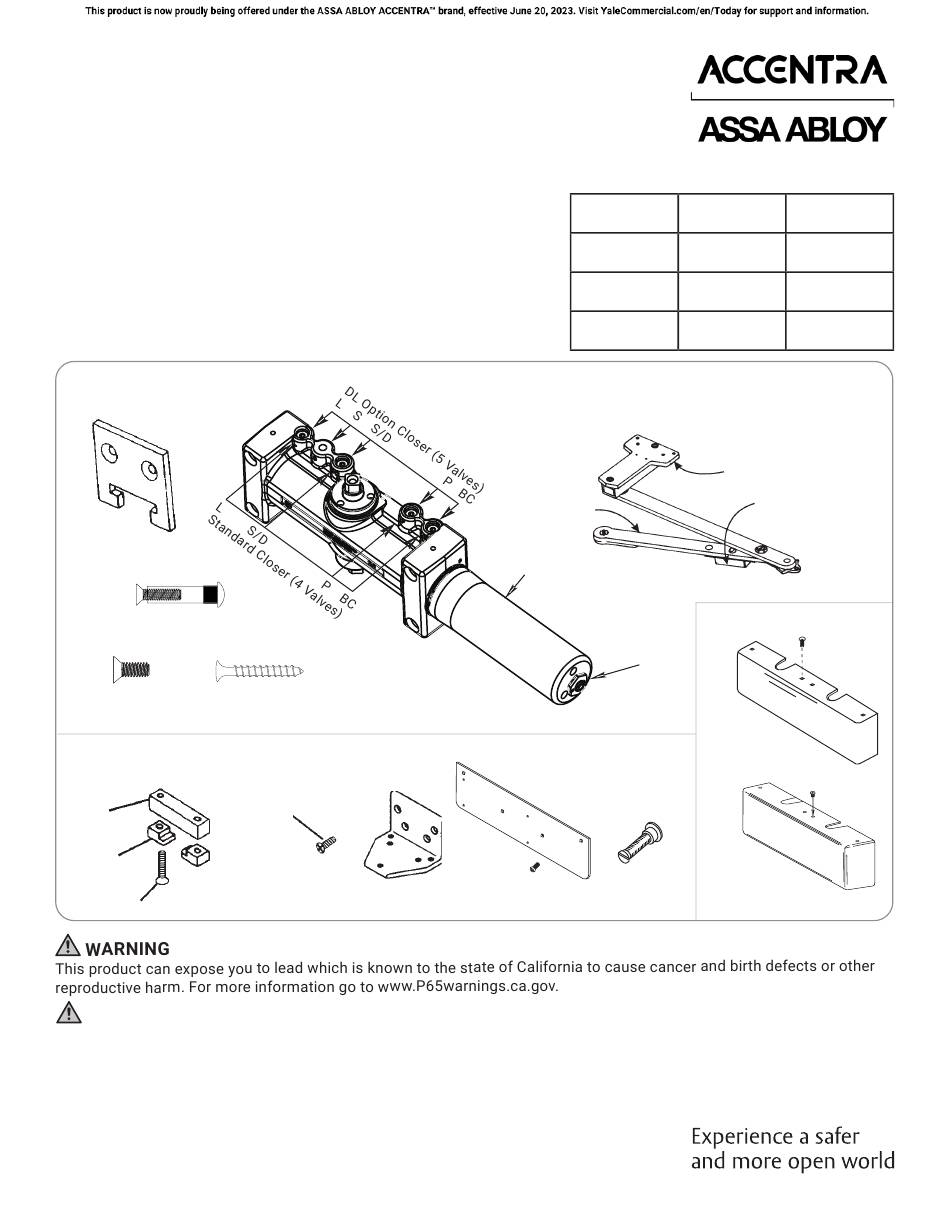

Components
6190
Bracket
Four (4) 1/4-20 Sex Nut and Bolt
to mount closer to dropplate or door
Six (6) 1/4-20
Six (6) #14 Type A
Machine Screw
to mount soffit plate and 6190 bracket
Optional Accessories
6191 Reinforcing Kit
(for Deep Reveal)
Spacer
Block
Clamp
Two (2) Clamp
Screws
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated open-
ing, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with
all applicable codes and ratings.
855-557-5078 x 2 • www.accentra-assaabloy.com
Copyright © 1999, 2011, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
80-9344-1351-010 Rev 3 05/24
Assembly
Screw
293L Bracket
(For Flush Partition)
Four (4)
Bracket
Screws
Door Width
28" - 32"
(71 - 81cm)
33" - 41"
(84 - 104cm)
42" - 48"
(107 - 122cm)
UNI Stop™ Parallel
Arm Assembly
Main Arm
Tube
Closer
486 Backplate
Through Bolt &
Grommet Nuts
Four (4) Plate
Screws
Non-Hold Open
Arm
6100-11
6100-13
6100-14
Soffit Plate
Hold Open Option
(UNI4410 Models)
Cover Options
Power
Adjustment Nut
Plastic Cover
(Standard)
Metal Cover
(Optional)
Hold Open Arm
6100-1
6100-3
6100-4
2 Cover
Screws
2 Cover
Screws
