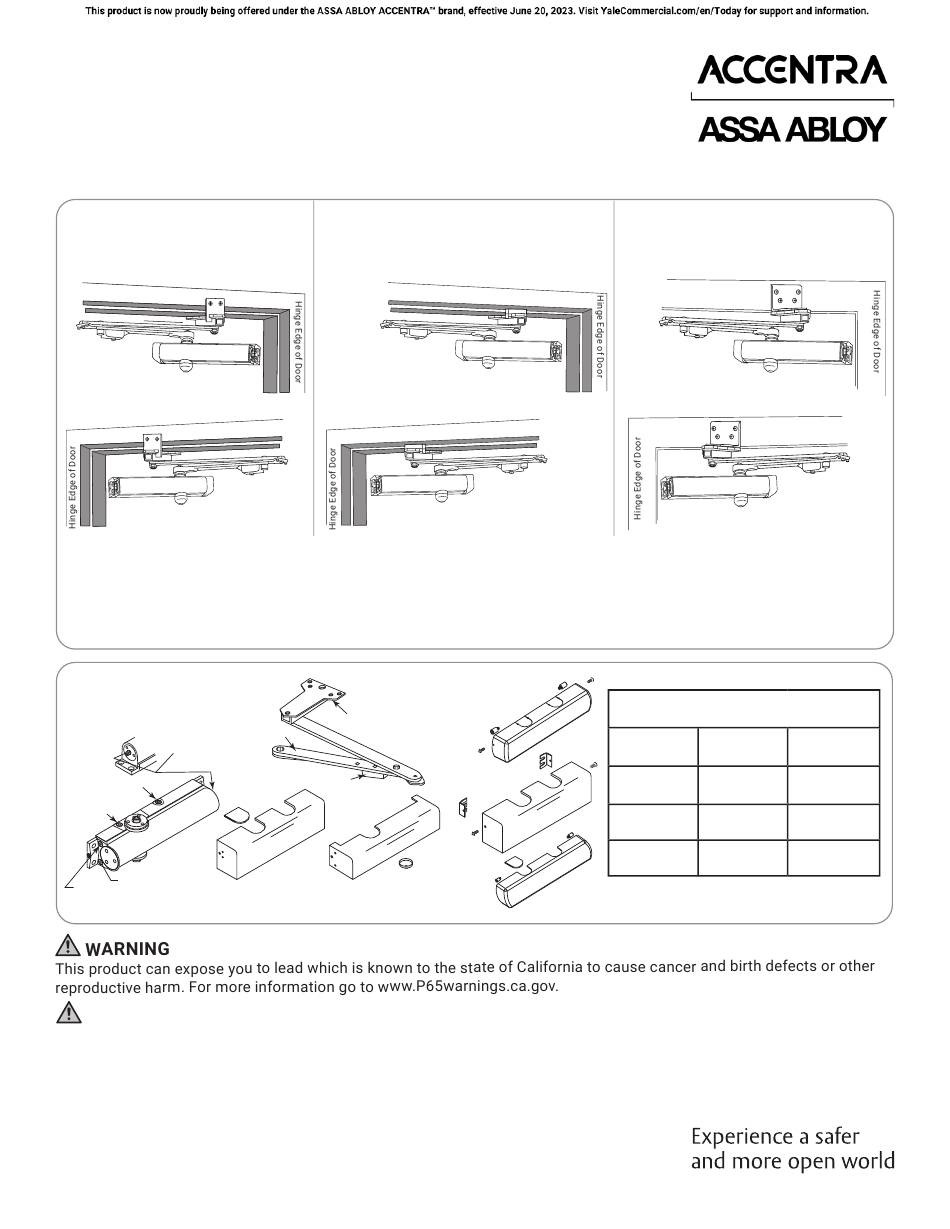

Assa Abloy ACCENTRA UNI Stop 3000 Series Installation Instructions

3000 Series Door Closer
Models UNI3301, UNI3501, UNI3311, & UNI3511
UNI Stop™ Arm, Non-Hold Open and Hold Open
Installation Instructions
Standard Frame
1-7/8 to 4-5/8 Frame Reveals (Uses 6190 Bracket)
Bracket illustration page 4
Door and frame preparation page 2
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
NOTE: "DL" suffix (Delayed Action) is an optional feature, "H" suffix indicates Hold Open Arm.
NOTES:
Use this instruction sheet for installation sequence and closer adjustments only.
y
It is recommended that the door on which the door closer will be installed be hung on ball bearing hinges. Door must swing freely.
y
Door and Frame must be properly reinforced, or use of special fasteners employed, to prevent the mounting screw from pulling
y
out.
All dimensions are given in inches with corresponding metric dimensions (mm) in parenthesis.
y
Components
UNI Stop Parallel
Arm Assembly
Power Adjustment
Shaft
Backcheck Valve
Delay Valve
(Optional)
Sweep Valve
Latch Valve
Standard Full Cover
Closer Body
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated open-
ing, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with
all applicable codes and ratings.
855-557-5078 x 2 • www.accentra-assaabloy.com
Copyright © 2007, 2008, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
80-9303-2208-010 Rev 3 05/24
Frame Reveals Over 4-5/8 (Uses 6191 Clamp Kit)
Bracket illustration page 4
Door preparation page 2
Frame preparation page 3
Right Hand Door - RH
Left Hand Reverse - LHR
Soffit
Plate
Main Arm
Hold-Open Option
Pinion Cap
3400P
3200P
Optional Narrow
Plastic Cover
Deep Frame
Left Hand Door - LH
Right Hand Reverse - RHR
3400MA
Optional Architectural
Metal Cover
3400M
Optional Metal
Cover
3400A
Optional Architectural
Plastic Full Cover
Flush Transom
Flush Partitions (Uses 589L Bracket)
Bracket illustration page 4
Door preparation page 2
Frame preparation page 3
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Arm Stamping
Arm Identification Arm Part Number
Non Hold
Door Width
Open
28" - 32" 6100-11
(0.70 - 0.80m) 11-6100-0235
33" - 41" 6100-13
(0.70 - 0.80m) 11-6100-0236
42" - 48" 6100-14
(0.70 - 0.80m) 11-6100-0237
Hold Open
6100-1
11-6100-0232
6100-3
11-6100-0233
6100-4
11-6100-0234
