R716S

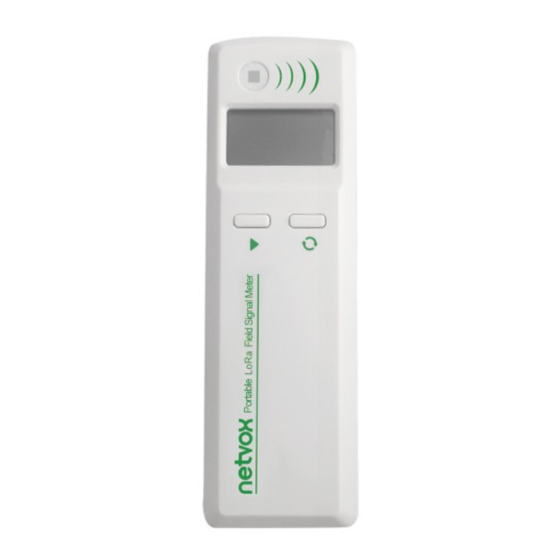

Portable LoRa Field Signal Meter
R716S
Portable LoRa Field Signal Meter
User Manual
Copyright© Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.

Advertisement

Table of Contents
loading

Related Manuals for netvox R716S

Summary of Contents for netvox R716S

  • Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ............................. 2 2. Appearance ............................3 3. Features ............................3 4. Set up Instruction ..........................4 4.1. Power On ..........................4 4.2. Manual Activation ........................5 4.3. Function Key..........................5 4.4. LCD Interface .......................... 5 4.5.

  • Page 3: Introduction

    1. Introduction R716S is developed based on LoRa technology to detect the network signal of the LoRa network. R716S can detect the LoRa signal strength of the scanned area and display the detected data through LCD. LoRa Wireless Technology: LoRa is a wireless communication technology dedicated to long distance and low power consumption. Compared with other communication methods, LoRa spread spectrum modulation method greatly increases to expand the communication distance.

  • Page 4: Appearance

    Frequency hopping spread spectrum technology ⚫ Low power consumption and long battery life Note: (1) Actual range may vary depending on environment. (2) Battery life is determined by sensor reporting frequency and other variables. Please visit http://www.netvox.com.tw/electric/electric_calc.html for detailed information of battery lifespan calculation.

  • Page 5: Set Up Instruction

    Step 1. After powering on, the R716S will light up and display Step 2. Search the network automatically. Failed to join the network: display “noNE” Successfully join the network: displayed and updated the signal value Step 3. Sleep mode: when the R716S is not in use within 40 seconds...

  • Page 6: Manual Activation

    It would start detection only when the network connection is stable. Pressing the signal key or the level key would not activate the device. (2) R716S would refresh the data every 5 seconds during the first 30 seconds. For the last 10 seconds, the final detection result would be shown on the LCD screen.

  • Page 7: Sleep Mode

    4.5. Sleep Mode 1. After the device is powered on, if there is no operation within 40 seconds, it will enter sleep mode. 2. After the device wakes up, the last value will be displayed. If there is no operation within 40s, it will enter sleep mode. 4.6.

  • Page 8: Important Maintenance Instruction

    6. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the device dry. Rain, moisture, or any liquid might contain minerals and thus corrode electronic circuits. If the device gets wet, please dry it completely.
