EarthWay 2030-Plus Assembly Instructions

MODEL # 2030-Plus
OPERATING INSTRUCTIONS
Before filling hopper, become familiar with the operation of
this spreader.
 Obtain proper setting for material to be used from the
enclosed SETTING MATRIX included with this spreader, or
from our web site under the MANUALS SECTION.
 Move stop bolt on rate gauge assembly to the proper
setting and tighten to secure.
 While pushing spreader forward, push control lever
forward to the stop bolt. To stop, pull lever back to close
flow holes before you stop moving.
 When finished, empty any remaining material from
hopper.
 Thoroughly wash spreader and dry before storing.
 To prevent corrosion, spray a light oil or Fluid Film inside
the tubing of the chassis and on all metal parts.
 If using Rock Salt, to prevent damage to the gearbox
remove salt from the hopper daily. Rock Salt will
reconstitute back into a solid block if left in the hopper
overnight and will damage your gearbox if operated with
the salt in place
Earthway_2030P-Plus Manual_v2

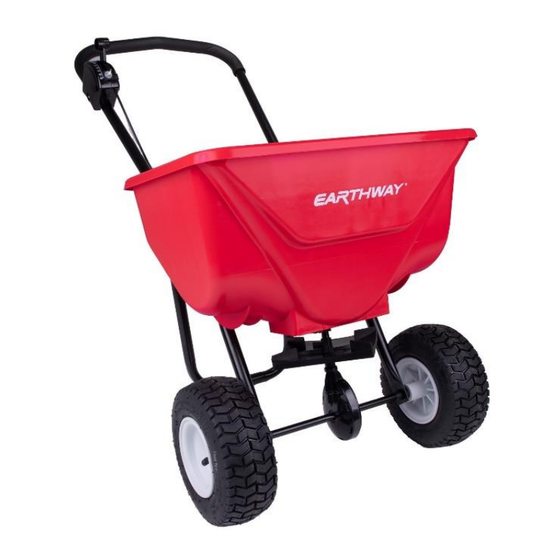

Broadcast Spreader
with Side Spread Control
ASSEMBLY INSTRUCTIONS
spreader. Our customer support team is standing
ready to ensure your success. Please contact us
at www.EarthWay.com to see our full line of
commercial, lawn & garden tools.
Note: Your EarthWay spreader includes a feature
called side spread control. This feature turns off
fertilizer from being spread to the left side. To
activate this feature, slide the lever below the
hopper to the right (if standing behind the
spreader) and walk along a sidewalk or flowerbed
that is 12"-14" on your left side. Fertilizer will
not spread to the left. This feature is better than
a deflector as no material is wasted by the
deflector.
For spreading, please utilize the
following spreader settings:
Spreader Lbs sq
Setting foot
11 1.0
13 2.0
14 3.0
16 4.0
17 5.0
18 6.0
19 7.0
20 8.0
22 9.0
23 10.0
Thank you for selecting
EarthWay for your
spreader needs. Our
production team in
Northern Indiana takes
pride in building this
Grams sq
meter
5
10
15
20
25
30
35
40
45
50
PAGE 1
