Page 1

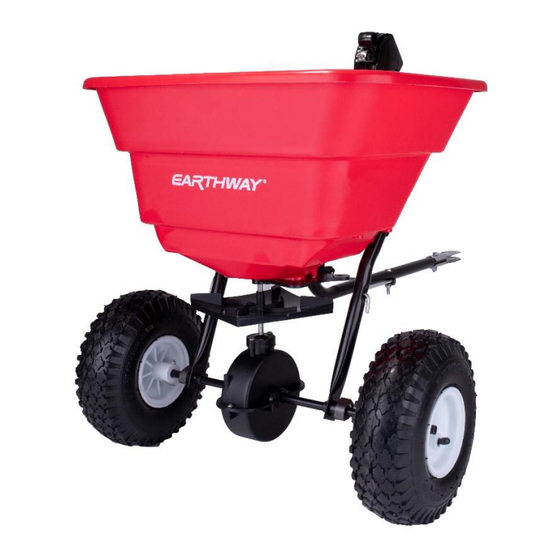

ASSEMBLY INSTRUCTIONS SIDE SPREAD CONTROL Patent U.S. 10,993,368 Your EarthWay spreader includes a patented feature to prevent fertilizer from being spread to the left side. To activate this feature, slide the lever below the hopper to the back (if standing behind the spreader) and position the left wheel 6″-12″...
Page 2
Once that is secured take the brace clip (key #10) along with bolt (key #7) and nut (key #6) to attach the wire Step 4: brace to the control support. Place wire brace inside the Wire brace sits on top of brace clip then secure with the control support. #7 bolt and #6 nut. 2050TP Manual 2023update 08082022 PAGE 2...
Page 3
4) When you have completed this spreading pass, close the control lever to “0”, and then open the SideSpread- Control™ by sliding the control lever from back to the front, for a FULL, 180 degree spread pattern. 2050TP Manual 2023update 08082022 PAGE 3...
Assembly and Operation Instructions HOW TO ORDER PARTS Call or Email: TURF DEPOT 800-305-9255 or earthway@turfdepot.com 23.1 23.2 23.3 23.4 23.5 23.6 23.7 80 POUND (2050TP) Broadcast Spreader Parts List PART # DESCRIPTION PART # DESCRIPTION 60514 CONTROL ASSEMBLY (1.1-1.4)
EarthWay. Due to the corrosive nature of most fertilizers and ice melt products, EarthWay Products, Inc. makes no warranty against and specifically excludes part(s) or product degradation or failure due to corrosion or its effects .
