Parsec Technologies GREAT DANE Series Installation Instructions

INSTALLATION INSTRUCTIONS-GREAT DANE SERIES
ANTENNA
A. INTRODUCTION
The Great Dane Series antenna is a pole mount MIMO LTE,
Omnidirectional antenna optimized for easy pole mount
installation. Parsec's PTA GD 2LTE is a high performance two-
in-one, MIMO LTE external waterproof M2M antenna. This
rugged omni- directional antenna works on the most common
North American LTE bands with high efficiency.
The PTA GD 2LTE is optimized for pole mounting for easy
rooftop installation for a wide variety of outdoor M2M
applications. It is especially well suited to providing wireless
internet access for businesses in rural areas. Parsec's unique
design allows for near 360-degree coverage in every direction
without the truck roll of pointing the antenna toward the
towers. The Great Dane Series antenna operates on the LTE
frequency bands of 698 – 894 MHz and 1695 – 2200 MHz
B. MOUNTING REQUIREMENTS AND SELECTING LOCATIONS

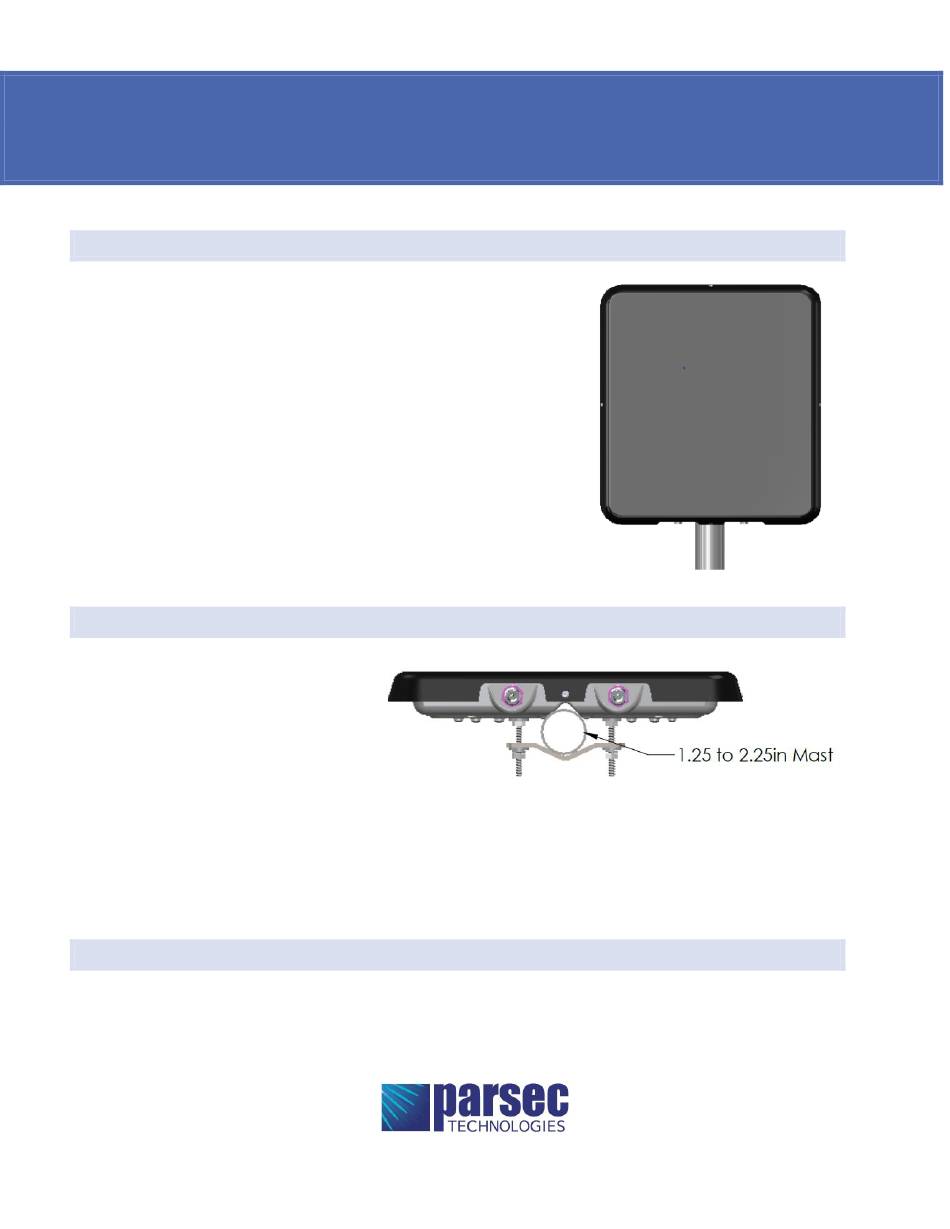

The PTA GD 2LTE antenna is
designed to be mounted on a
vertical mast 1.25 to 2.25 in.
diameter.
directional antenna design so
there is no need to rotate the
antenna on the mast.
For best performance it's important that the antenna be mounted at least 2 feet away from other
objects with a clear view of the horizon in as many directions as possible. Non-penetrating roof
mounts allow the antenna to be moved away from other objects and a mast height of about 6
ft. puts the mounting hardware and RF connections near eye level during installation. So, Select a
mounting location away from air conditioning units and other large metal objects.
C. MAST MOUNT
Choose a pole of diameter between 1.25 in to 2.25 in and cut it to the required length. Mount the
pole vertically and confirm it with a level. Make sure the pole is firm before mounting the
PTA GD 2LTE
It is an omni-
antenna.
Parsec's
