Loading the media (cont.)

Note: The black mark sensor position is adjustable, and the gap sensor is
fixed. Please make sure the gap or black mark is at the location where
media gap/black mark will pass through for sensing.
1.
2.
3.
~ 18 ~

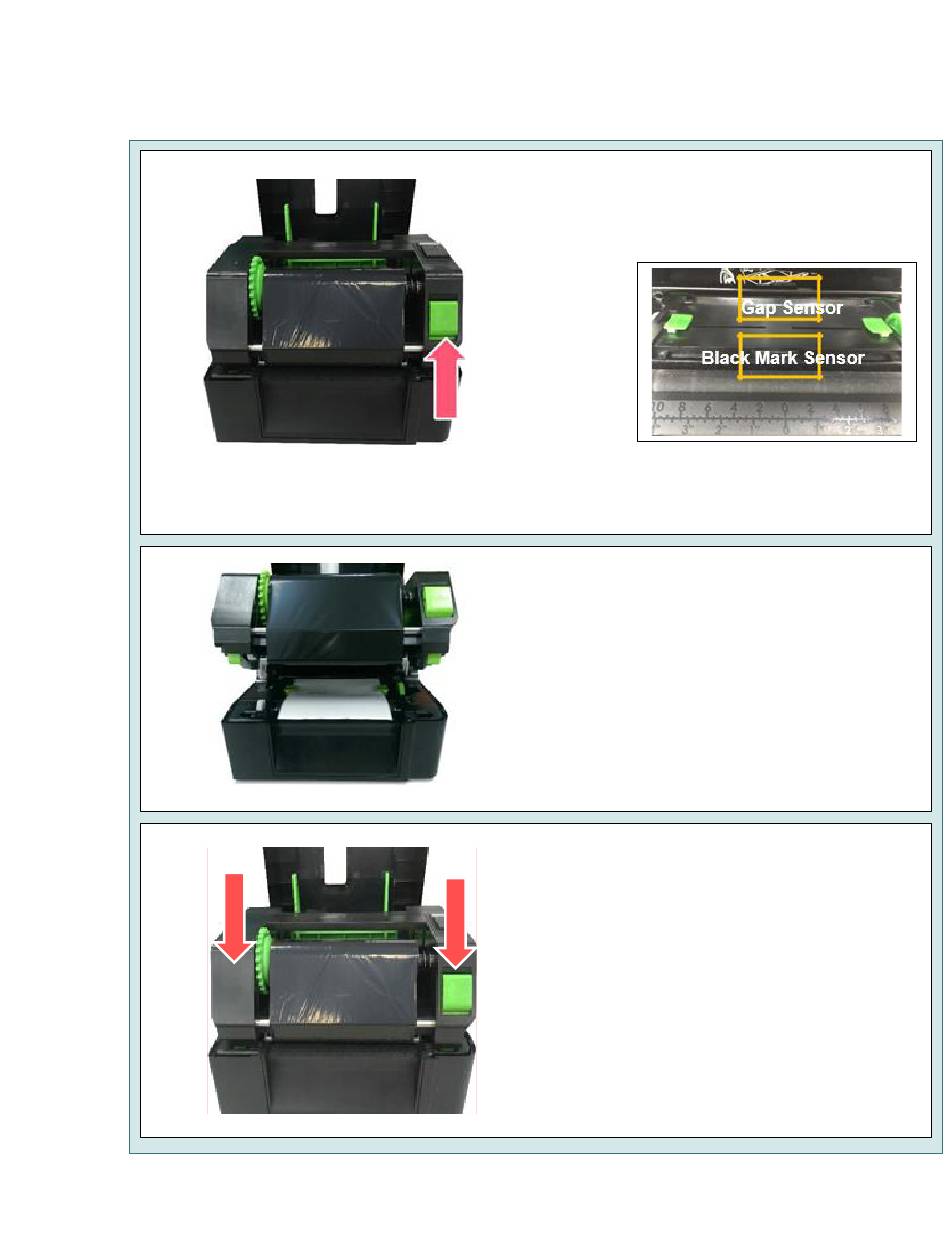

Push the print head release
button to open the print head
mechanism.
Feed the label (printing
side facing up) through
the media sensor and
place the label leading
edge onto the platen
roller. Adjust the media
guides to fit the label
width.
Close the print head
mechanism with both hands
and make sure the latches
are engaged securely. Use
software utility to set the
media sensor type and
calibrate the selected sensor.
