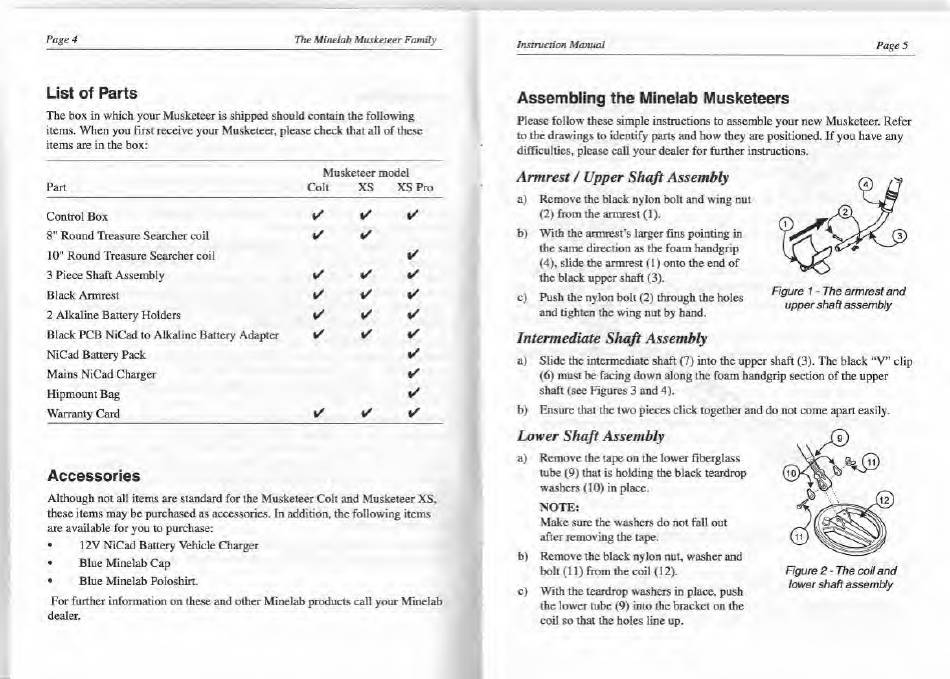

Page 4 The Minelab Musketeer Family
Instruction Manual
Page5
List of Parts
The box in which your Musketeer is shipped should contain the following
items. When you first receive your Musketeer, please check that all of these
items are in the box:
Part
Musketeer model
Colt XS XS Pro
Control Box
✓ ✓ ✓
8" Round Treasure Searcher coil
✓ ✓
10" Round Treasure Searcher coil
✓
3 Piece Shaft Assembly
✓ ✓ ✓
Black Armrest
✓ ✓ ✓
2 Alkaline Battery Holders
✓ ✓
✓
Black PCB NiCad to Alkaline Battery Adapter
✓ ✓ ✓
NiCad Battery Pack
✓
Mains NiCad Charger
✓
Hipmount Bag
✓
Warranty Card
✓ ✓ ✓
Accessories
Although not all items are standard for the Musketeer Colt and Musketeer XS,
these items may be purchased as accessories. In addition, the following items
are available for you to purchase:
• 12V NiCad Battery Vehicle Charger
• Blue Minelab Cap
• Blue Minelab Poloshirt.
For further information on these and other Minelab products call your Minelab
dealer.
Assembling the Minelab Musketeers
Please follow these simple instructions to assemble your new Musketeer. Refer
to the drawings to identify parts and how' they are positioned. If you have any
difficulties, please call your dealer for further instructions.
Armrest / Upper Shaft Assembly
a) Remove the black nylon bolt and wing nut
(2) from the armrest (1).
b) With the armrest's larger fins pointing in
the same direction as the foam handgrip
(4), slide the armrest (1) onto the end of
the black upper shaft (3).
c) Push the nylon bolt (2) through the holes
and tighten the wing nut by hand.
Figure 1 - The armrest and
upper shaft assembly
Intermediate Shaft Assembly
a) Slide the intermediate shaft (7) into the upper shaft (3). The black "V" clip
(6) must be facing down along the foam handgrip section of the upper
shaft (sec Figures 3 and 4).
b) Ensure that the two pieces click together and do not come apart easily.
Lower Shaft Assembly
a) Remove the tape on the lower fiberglass
tube (9) that is holding the black teardrop
washers (10) in place.
NOTE:
Make sure the washers do not fall out
after removing the tape.
b) Remove the black nylon nut, washer and
bolt (11) from the coil (12).
c) With the teardrop washers in place, push
the lower tube (9) into the bracket on the
coil so that the holes line up.
Figure 2 - The coil and
lower shaft assembly
